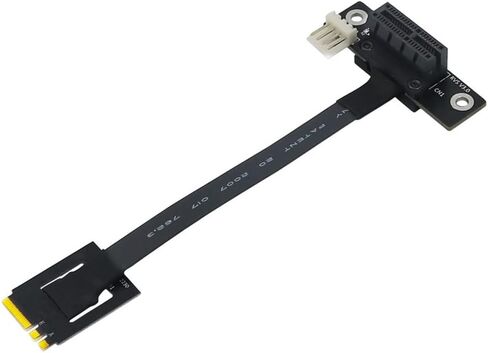

JMT M.2 NGFF Dual Key A-E to PCI-E Adapter Convert Cable 270° 20cm with 4Pin FDD Power Connector Support for M.2 Socket with Type 2230

Package Included:
1 x 270 degree M.2(NGFF) Dual Key A-E To PCI-E Adapter cable
2 x M2 Screw
1 x Screw Driver
1 x FDD 4Pin to SATA Power cable
1 x Dust Cap

Product Features:

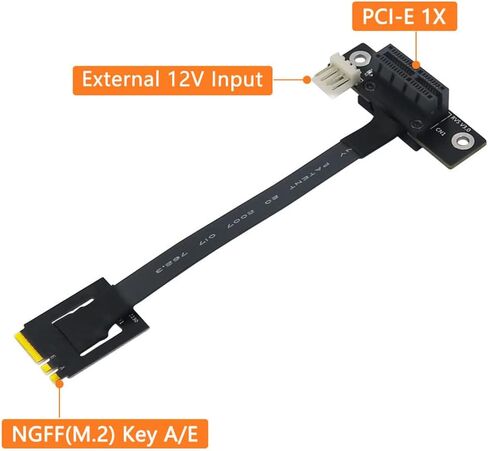

1. This adapter cable allows you connect any PCI-E device to M.2 Dual Key A-E slot through a stand PCI-E 1X/4X/8X/16X port.

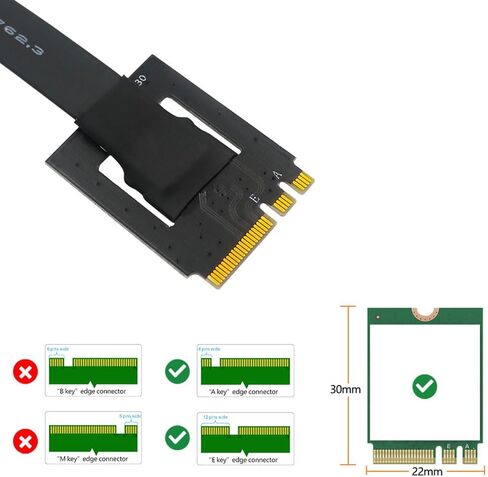

2. Support M.2 socket with type 2230.

3. Support 12V power by 4pin FDD power connector for Standard PCI-E device. If your device doesn`t need 12V power input, you won`t connect this attached power cable.

4. 1X, 4X, 8X and 16X PCI-E cards are also available. The most matched type is 1X. But the speed will limit 1X because of the M.2 speed limited.

5. Using High quality wire, using High quality connector, high frequency support PCI-E 3.0 stable transfer.

6. No drivers needed for this Adapter.

7. Supports OS: Compatible with Win XP, Vista 32/64, Win 7, Win 8, Win10, Win11 or Linux and so on.

8. System requirement: M.2 Key A or E slot on the motherboard. Sometime this slot support PCI-E WLAN(eg 9260 AX200), however ,there exist exception, If your board only support 9560 or AX201, It won't support this adapter cable. Because the system interface type of 9560 is CNVio2, not Wi-Fi(PCIe).

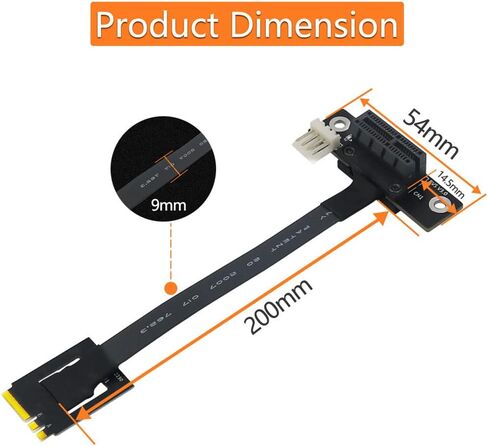

9. Cable length around: 20cm, Total length around: 22.5cm. Cable thickness is around 1.0mm.

10. It`s also a powerful tool for engineers, or use for PCI-E tester, extender and so on.
