[Enhanced Measures] Include 15kv esd , 600w tvs , and 2.5kv communication isolation.
[Wide Voltage Range] The power supply ranges from 9, 24vdc with anti reverse for reliable use.
[Industrial, grade Design] Ensures complete communication isolation and a stable transmission rate of up to 115.2kbps.
[Multi, machine Support] Each channel can up to 128 nodes, enabling efficient communication.
[Automatic Data Control] Technology distinguishes and controls data transmission direction effectively.

Spec:

Item Type: Repeater and nbsp;
Compatibility: Compatible with RS, 232, RS, 485TIA or EIA standards
Working Voltage: DC: 9, 24V
Rated Power: 0.5, 1.2W

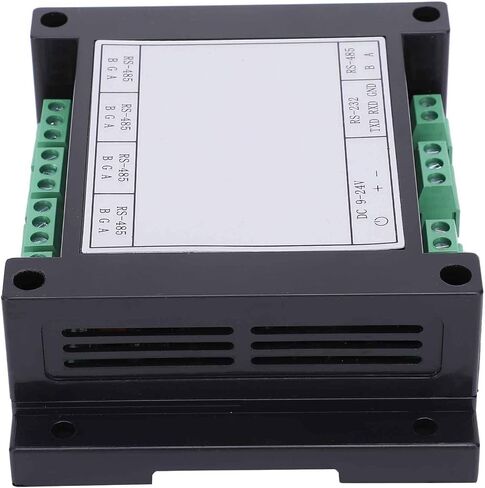

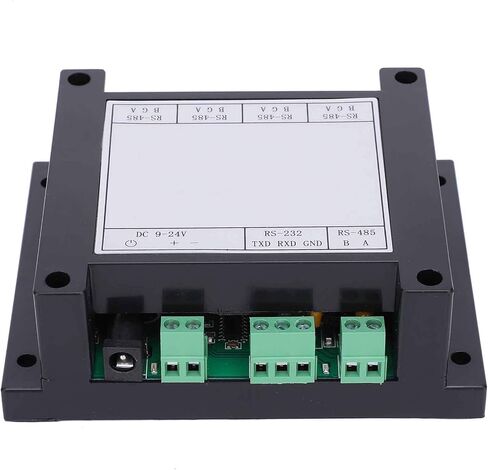

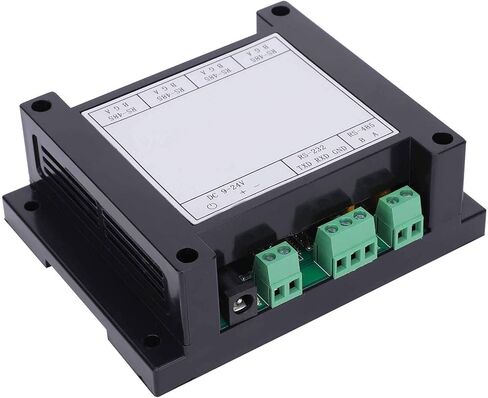

Input Interface: 1 RS, 232 or 1 RS, 485

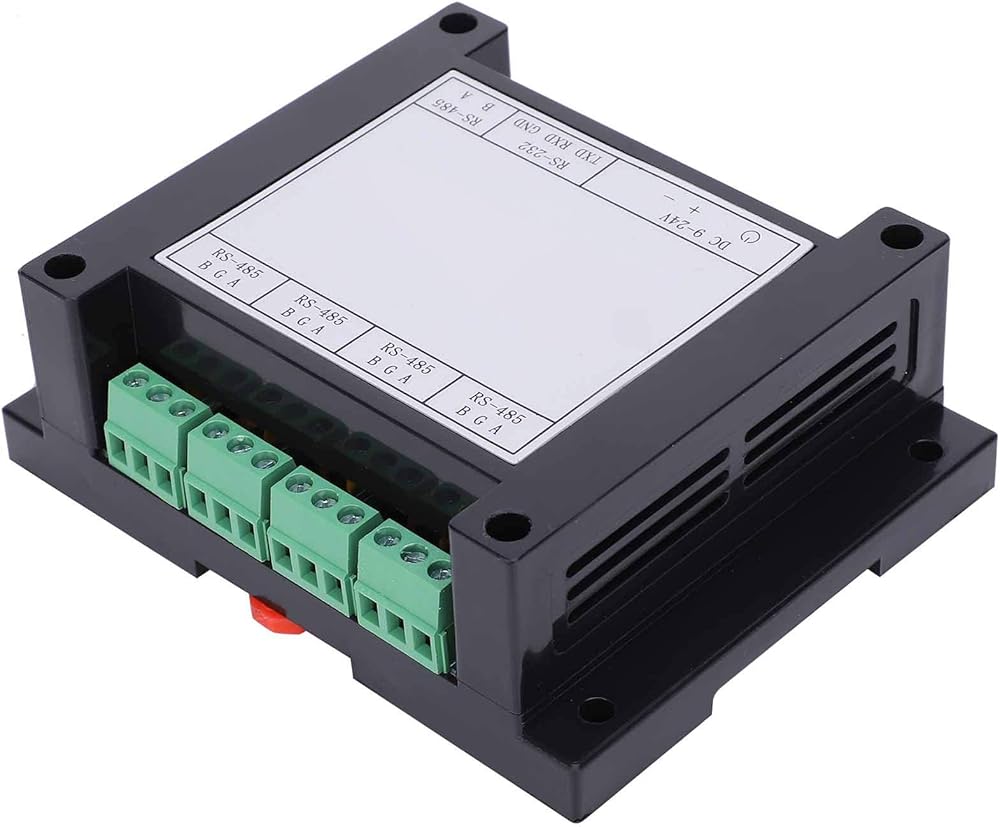

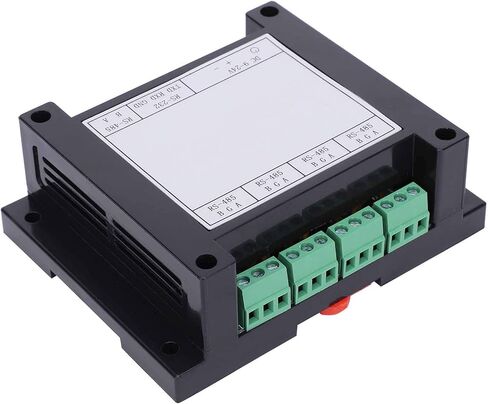

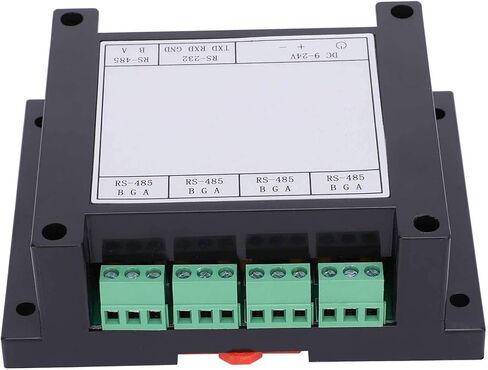

Output Interface: 4 RS, 485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps, 115.2Kbps

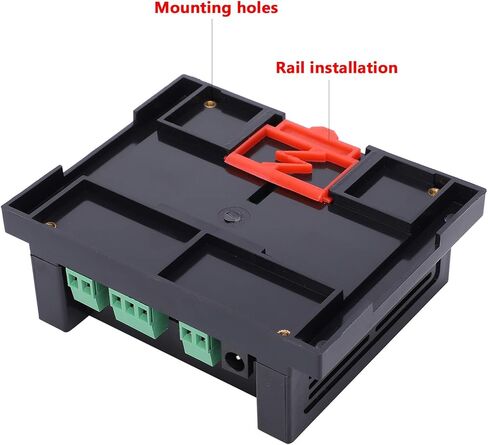

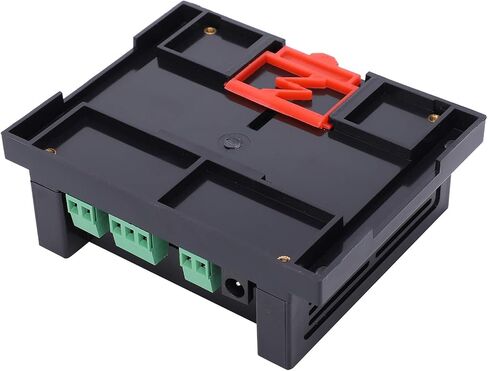

Installation Method: 35mm rail installation, 4, hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in
Working Environment: -30℃ to 70℃ relative humidity and gt;95%RH
Wiring Notes:
1. 485 communication line must use shielded twisted pair, preferably multiple strands for spare, the longest is not more than 2500 meters.
2. The wiring should be as far away as possible from high voltage wires, not parallel to power lines, and not to be bundled together.
3. 485 bus must be a hand, in, hand bus structure, and resolutely eliminate star connection and bifurcation connection.
4. If there are more than 30 controllers or the cable length is greater than 500 meters, it is recommended to use a 485 repeater.
5. The AC, powered equipment and the chassis must be grounded and well grounded.
6. the GND ground of all 485 devices with shielded wires.
Requirements For Wire Selection
