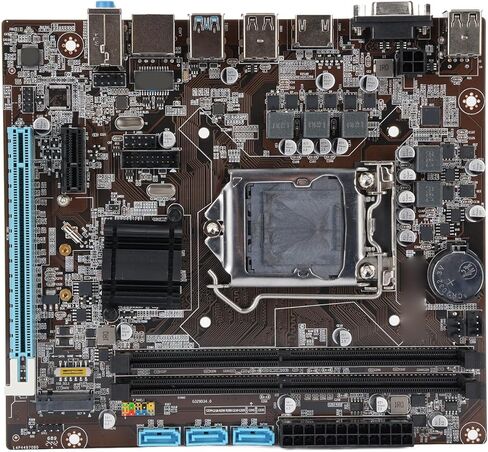

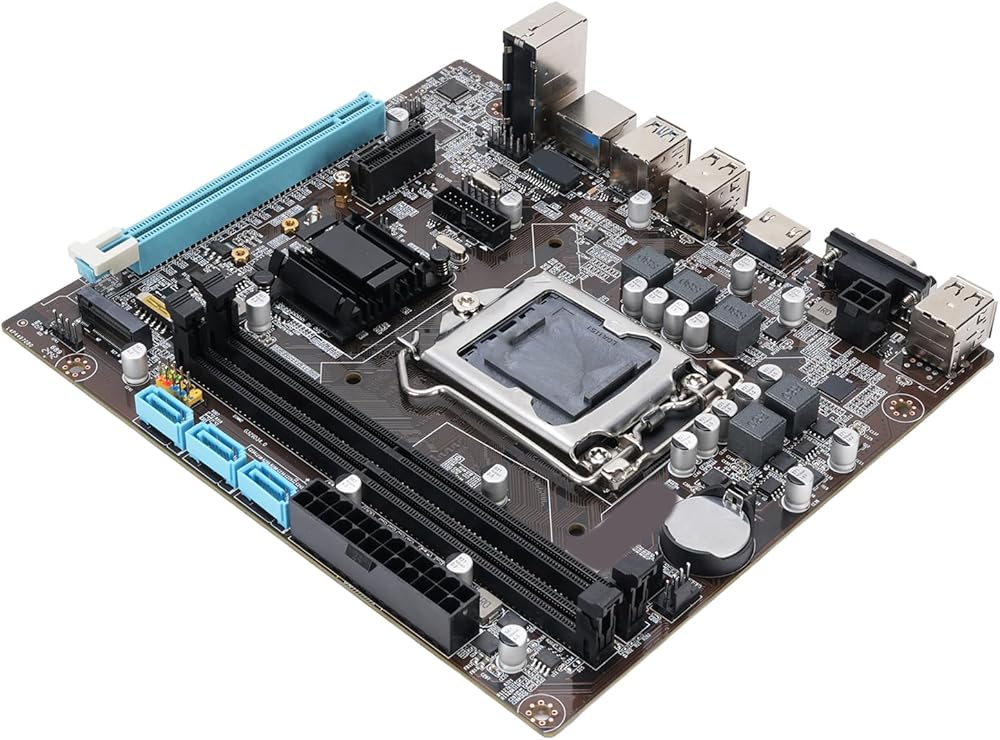

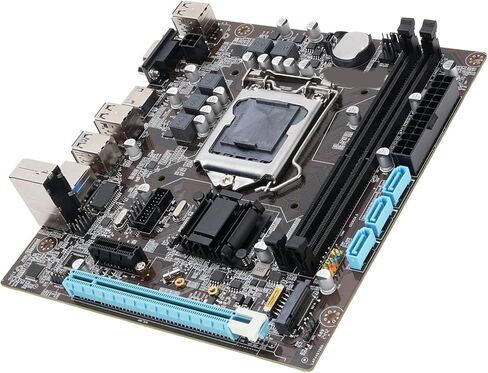

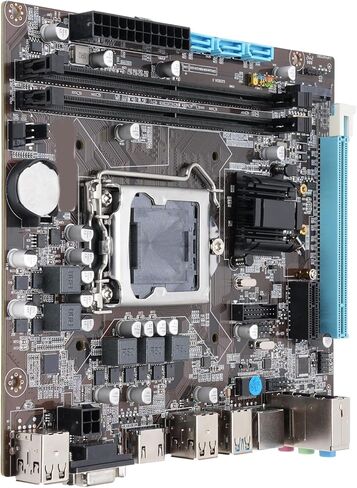

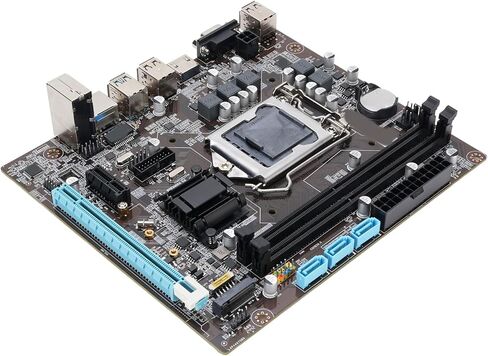

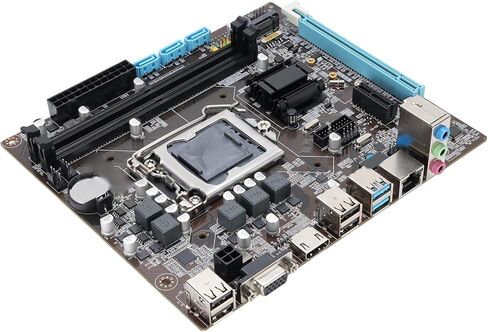

H110 Computer Gaming Motherboard, for LGA 1151 ATX 2 Channel Motherboard, DDR4 M.2 Nvme NGFF Serial ATA3.0 WiFi Gigabit LAN PCIe Motherboard Supports for 6 7 8 Gen 14nm CPU

KWD 28.500
Brand
Gugxiom
Category
Weight
472 g
– 1 +

Special Features

  • Chipset Compatibility: The motherboard features the H110 chipset, supporting 6th, 7th, and 8th Gen 14nm for LGA 1151 CPU, such as for Core i7 8700, 8700K, i5 8600K, 8600, 8500, 8400, i7 7700K, i7 7700, i5 7600K, i5 7600, i5 7500, i3 6100, i5 6500, i7 6700, for Pentium G5600, G5500, G5400, for Celeron G4920, G4900.
  • 2 Channel Memory Support: This H110 motherboard is equipped with two 240 pin DDR4 SDRAM desktop memory slots, supporting 2 channel DDR4 1600, 1866, 2133, 2400 MHz, with a maximum capacity of 32GB.

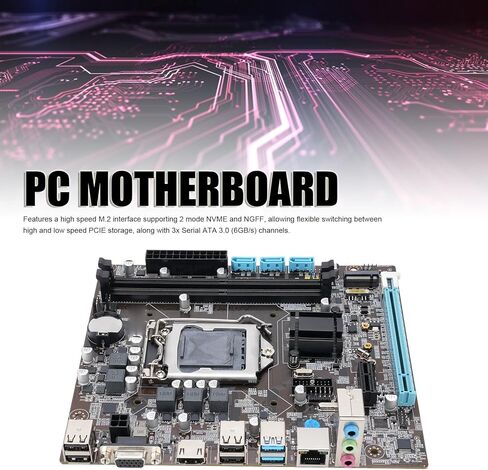

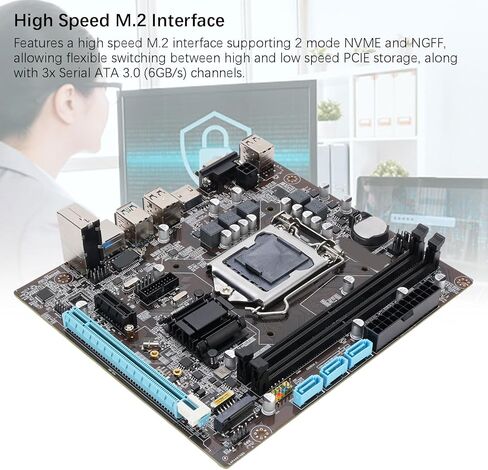

  • High Speed M.2 Interface: Features a high speed M.2 interface supporting 2 mode NVME and NGFF, allowing flexible switching between high and low speed PCIE storage, along with 3x Serial ATA 3.0 (6GB/s) channels.
  • Integrated Graphics Support: Includes VGA and HD multimedia interfaces, supporting 1080P HD video output without a dedicated GPU. Note: To use these two interfaces, your CPU needs to support integrated graphics card.
  • 8 Layer PCB Construction: The gaming motherboard uses an 8 layer PCB for enhanced durability, reducing bending and ensuring stable circuit operating, thereby extending the motherboard's lifespan.

Description

Comprehensive I/O Ports: The PC motherboard offers a variety of I/O ports, including 4x USB 2.0, 2x USB 3.0, 1x VGA, 1x HD multimedia interface, 1x RJ45, and a 3 in 1 sound interface.

Expansion and Storage Options: The PC motherboard includes 3x Serial ATA 3.0 (6GB/s) ports, 1x PCI Express x16 slot, 1x PCI Express x1 slot, and 1x M.2 slot supporting NVMe and NGFF interfaces.

Spec:
Item Type: Motherboard
Material: PCB
Model: H110
Battery: CR2032 (Built in)
Battery Capacity: 240mAh
CPU: Support 6, 7, 8 Gen (for SKYlake) 14nm CPU (for LGA1151)
Memory: 2x 240 Pin DDR4 SDRAM Slots; Maximum Memory Support 32GB; Support 2 Channel DDR4 1600, 1866, 2133, 2400 MHZ
Storage: 3x Serial ATA 3.0 (6GB/s) Ports
Integrated Network Card: Onboard for Realtek 10Mbps 100Mbps Network Card
Expansion Slots: 1x PCI Express x16 Slot, 1x PCI Express x1 Slot, 1x M.2 Nvme/NGFF Slot
Form Factor: ATX (17x19cm/6.69x7.48in)
Integrated Sound: Onboard for Realtek ALC 6 Channel HD Sound Codec
I/O Ports: 4x USB 2.0, 2x USB 3.0, 1x VGA Port, 1x HD Multimedia Interface Port, 1x RJ45 Port, 1x 3 in 1 Sound Port (Line In, Line Out, Mic In)

How to Use:
Out of the box

Package List:
1 x Motherboard
