1. corresponds to the PCI 2.1-technical dataification, supports 32-bit PCI bus. Plug and Play, automatic allocation of IRQ and I/O address.
2. A host can support several multiserial cards. Database: 4, 5, 6, 7, 8 bytes.
3. Parity bit: no old spaces. Stopbit: 1, 1.5, 2.
4. River control: none, hardware, Xon/Xoff. Supports the 2000/2003 / .
5. The maximum data transfer rate is up to 1m/s. Rohs-compliant.

Technical dataification:
Characteristics:
Compatible with the PCI 2.1-technical dataification, supports 32-bit PCI bus.
Plug and Play, automatic assignment of IRQ and I/O address.
A host can support several multiserial cards.
Database: 4, 5, 6, 7, 8 bytes.
Parity bit: no old spaces.
Stopbit: 1, 1.5, 2.
River control: none, hardware, Xon / Xoff.
Supports the 2000/2003 / .
The maximum data transfer rate is up to 1 m/s.
Rohs-compliant.
Technical dataifications:
Color: As shown in the pictures
Package weight: 110 g
Directions:
Install a PCI-Zu-R232 extension card on your computer:
1. Switch off the computer and the devices connected to the computer.
2. Open the housing cover, put the card into the non-used PCI slot and secure it.
3. Connect the housing cover and connect the connection cable of the PCI-Zu-R232 extension card.
4. Start the computer, the step is the driver installation.
Driver storage location: IO-PCI60806A 2S driver on the CD.
Install the 2000/ driver:
1. Start the system.
2. automatically detects the PCI-Zu-R232 extension card. Click the "" to continue.
3. Select "From the list or enter the installation (recommended)" and click the "" .
4. Place the drive CD into the CD-ROM drive. Choose "Include this location (O) in the search:" and click on the "Search" to continue with the installation.
5. Search in the folder:
a. Select the CD-ROM drive.
b. on the Sie folder.
c. Double -click on the 60806a folder.
d. Click the "OK" .
e. Click the "" .
6. The system automatically finds the file on the drive CD. Click the "" to continue.
7. Click on "Complete" to start copying the files from the drive CD.
8. The system automatically updates the hardware configuration.
9. Restart of the system, PCI-Zu-RS232 extension card can be used.
10. After the program has ended, the system is automatically restarted to complete the installation of the driver.
List of packages:

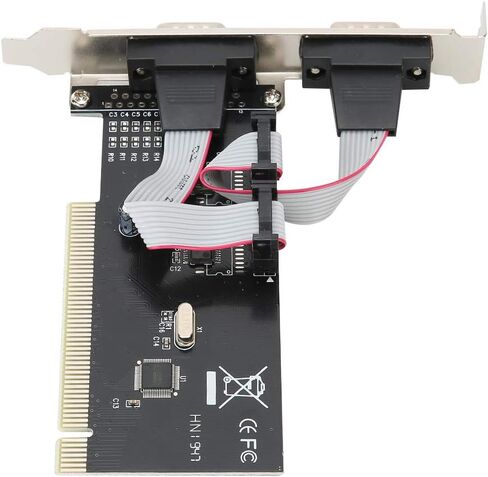

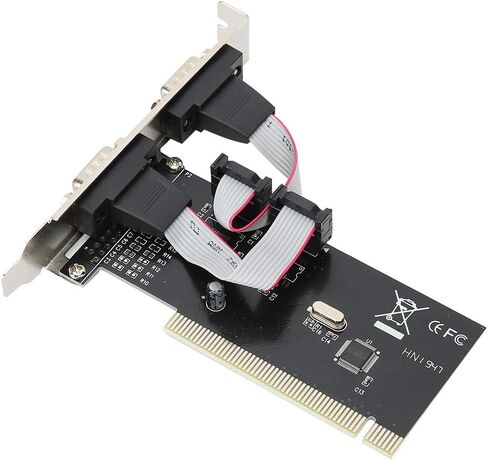

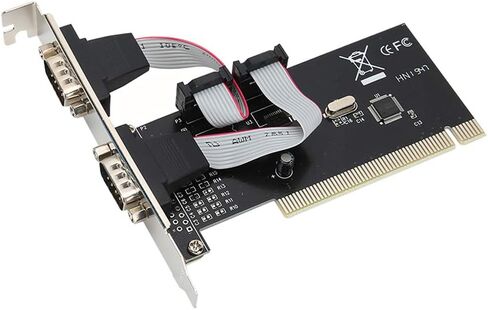

1 x PCI-to-2-seriell port card
1 x drive CD
A notice:
1. If the PCI-Zu-R232 extension card is in the PC in the self-test, the system reports that a device is present.
2. Each PCI-Zu-R232 extension card needs an interrupt and this is automatically assigned by the system. The port number is determined by the PCI location.
3. If no other similar products are installed in the system, the port is generally named according to COM3, which is related to the COM port number of the motherboard.
4. If you want to install the new card and the new driver in the system, you must delete the original card from the "Multifunction Card".
5. It is strictly forbidden to introduce the card/connecting cable or pull out when the device is switched on.
