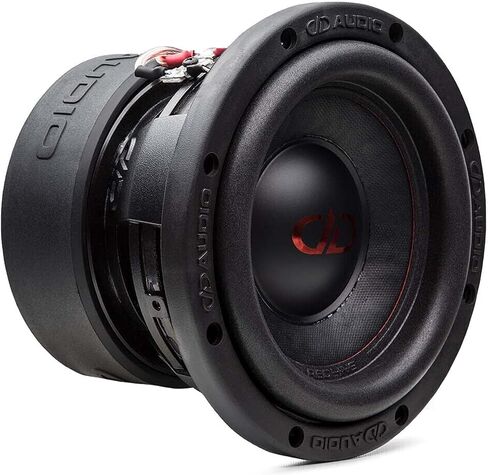

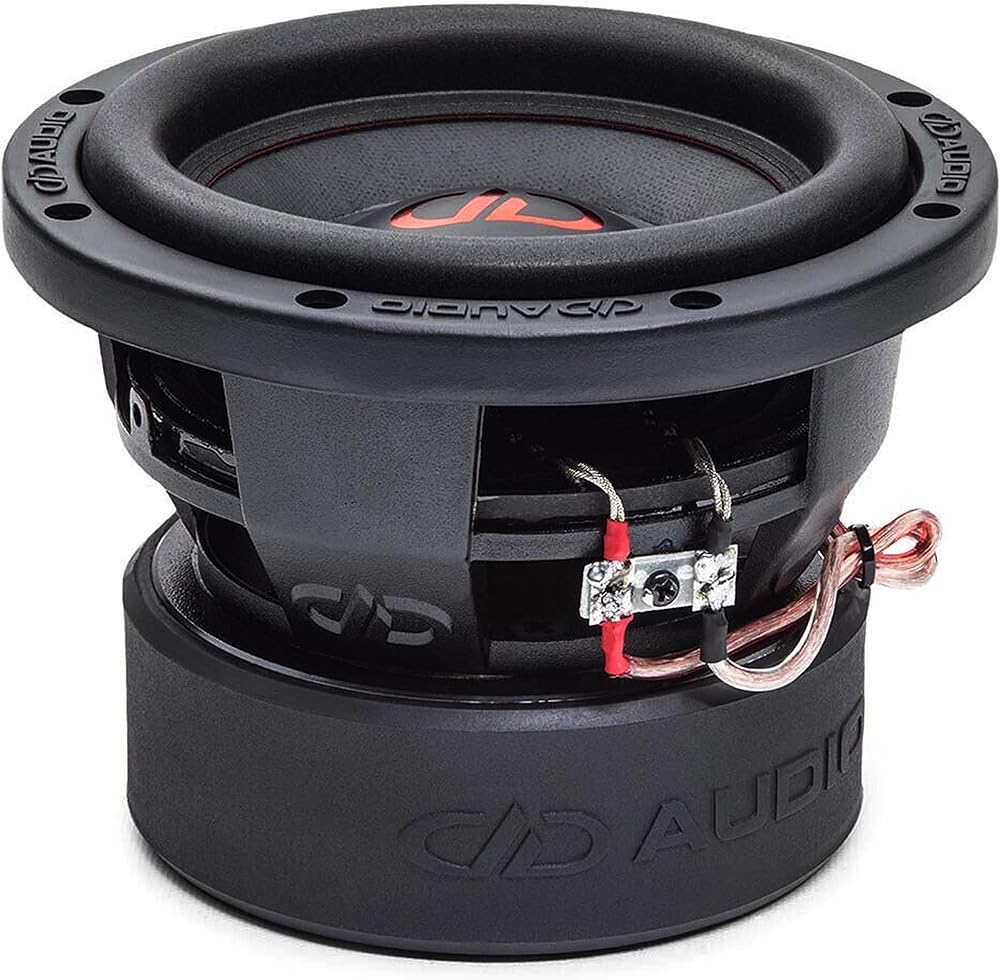

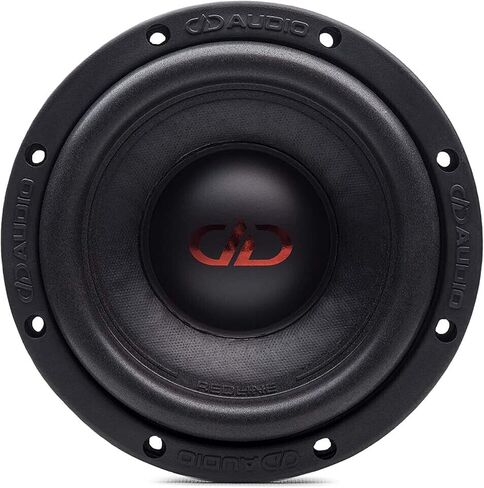

606d-D2 | DD Audio Digital Designs 6.5" Dual 2-Ohm 1500W Subwoofer
FEATURES:

SPECIFICATIONS:

Product Features:
The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 250-500 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.
Features
EROM surround
High-temp, 2.0”, voice coil
Double Layer Deep bass, high excursion spider system
Unique glass fiber and natural pulp cone
Back plate coil gap venting
Extended pole piece
DD cast basket
606d: 250w to 500w – 6.5 Inch Power Tuned Subwoofer
Speaker Size (In): 6.5
Watts RMS: 250 - 500
Watts Peak: 1500
Impedance: D2 / D4
VCD (In): 2
Piston Diameter (In): 5.375
Fs (Hz): 43.74
Qms: 4.907
Qes: 0.558
Qts: 0.501
Vas: 4.395
Xmech (MM): 56
Xmax (MM): 9
Frame OD (In): 7
Frame OD w/Gasket (In): 7 1/8
Mounting Diameter (In): 6
Mounting Depth (In): 4 1/2
Motor Diameter (In): 5 1/2
Motor Depth (In): 2
Woofer Displacement (CuFt): 0.04
Sealed Enclosure (CuFt): 0.25 - 0.5
Ported Enclosure (CuFt): 0.25 - 0.75
