Mounting Brackets
Please notice: This link is with 2 style model, please make sure before order

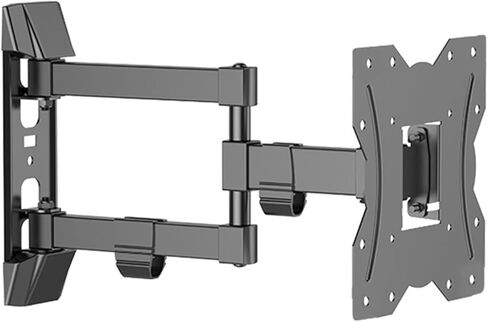

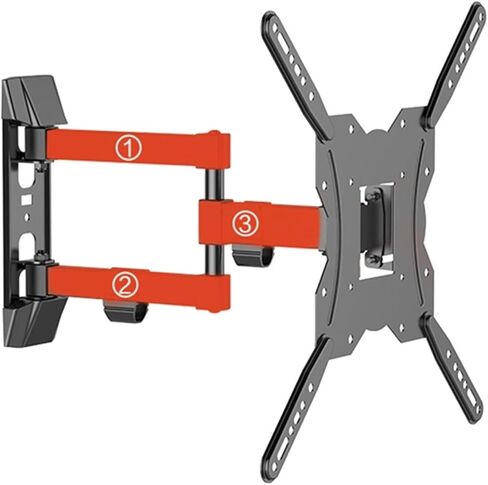

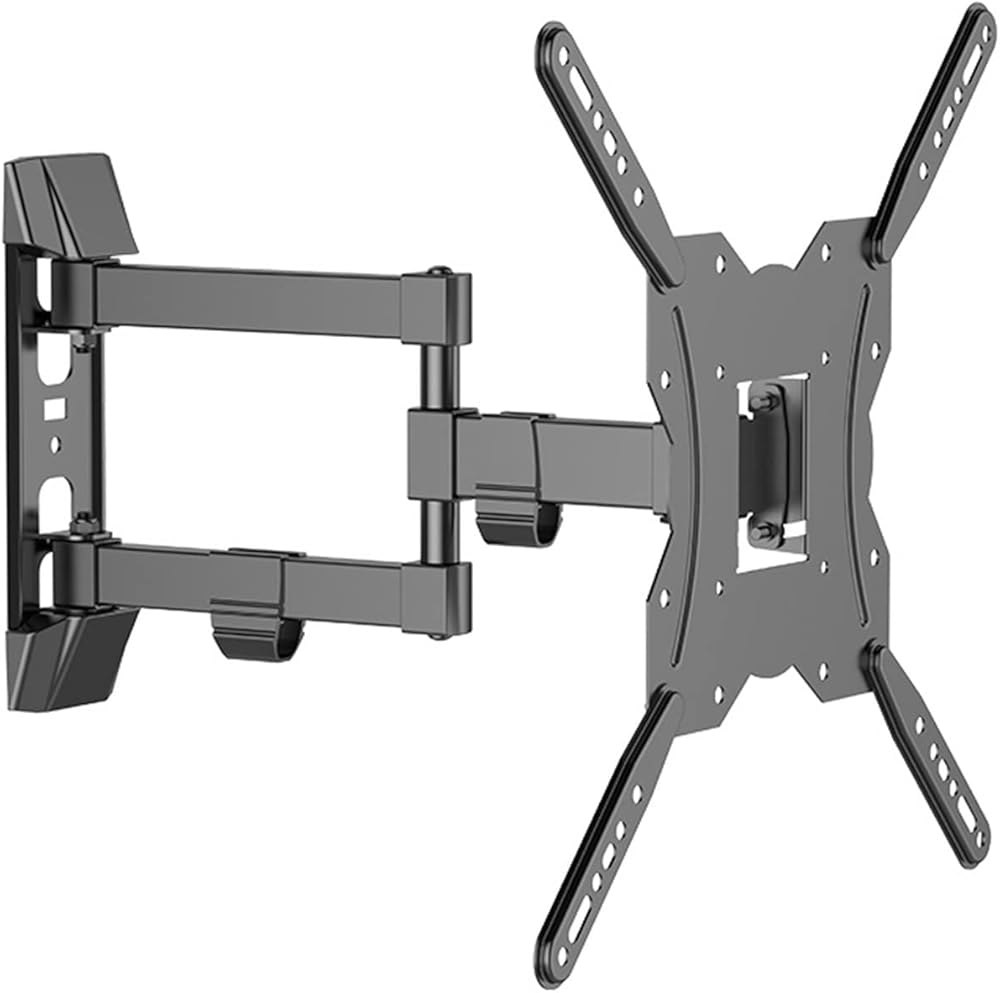

Full Motion TV Wall Mount Bracket Wall Stand
Specifications:
Function:Wall Mount Bracket for HDTV,LED LCD TV
Material:cold rolled steel

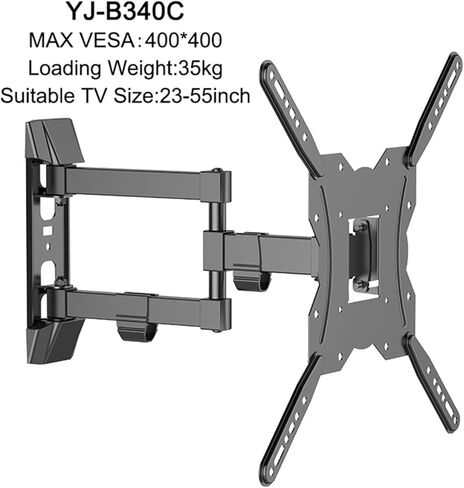

Suggested Tv Size: YJ-B320C ------ 14-42" YJ-B340C----- 23-55"
Hole distance: YJ-B320C------100x100mm~200*200m YJ-B340C------100*100mm~400*400mm
Load Capacity:35kg
Maximum distance from the Wall:422mm
Minimum distance from the Wall:62mm
Type/Adjustment:Tilt -3°~10° Swivel 120°
Features:
This heavy-gauge TV mount has high standards, holding screen up to 55",supports weight up to 35kg

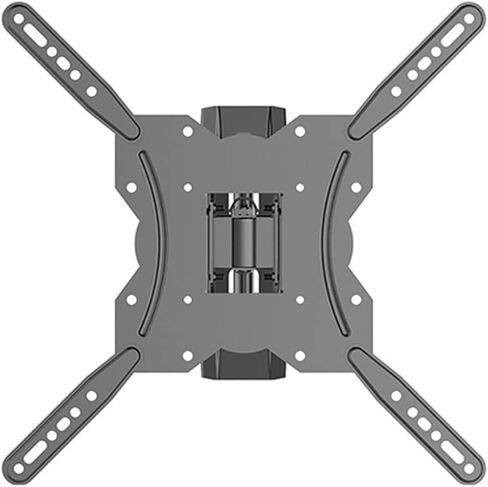

Compatible with VESA:(mounting hole pattern)100x100mm~400x400mm
Post-installation level adjustment allows the TV to perfectly level
Tilt+10°/-3°, swivel 120 degrees and rotate for maximum viewing flexibility; VESA plate can be taken off for easy installation by one person

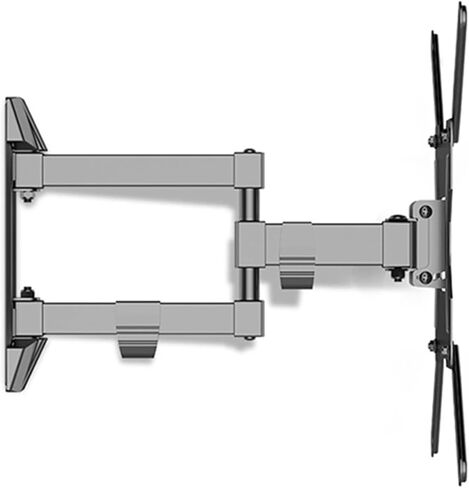

Low Profile mount retracts to 62mm to save space, Extends 422mm from the wall
Packing Include:
1*tilting panel TV wall mount
