This Two way self locking joystick is widely used for indus l control AC 50Hz and DC circuits
We strive to provide you with the highest quality product and the best customer experience, 12 volt way joystick, if you re not entirely satisfied, 12v joystick, please just feel to contact us at any time.
Specifications The joystick is 2NO type inst neous , so it has 2 normally open contacts.
elbow lever , The rubber sleeve has the characteristic of water resistance, oil resistance and resistance
HIGH QUALITY This momentary joystick is widely used for indus l control AC 50Hz and DC circuits.
وصف
Specification:
Descriptions:

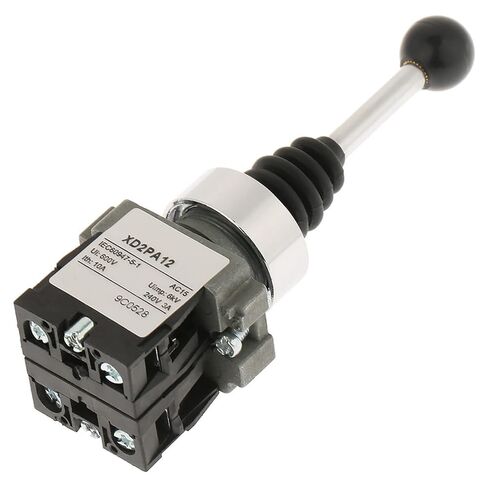

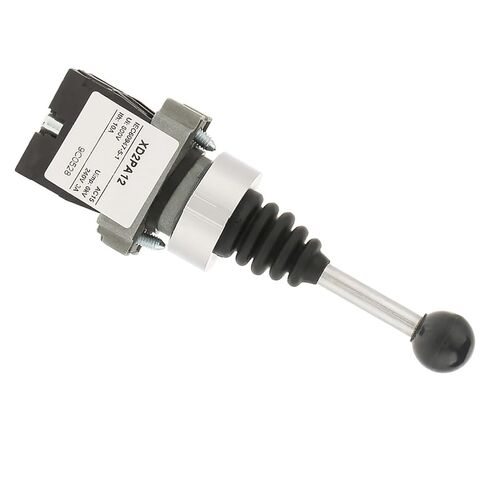

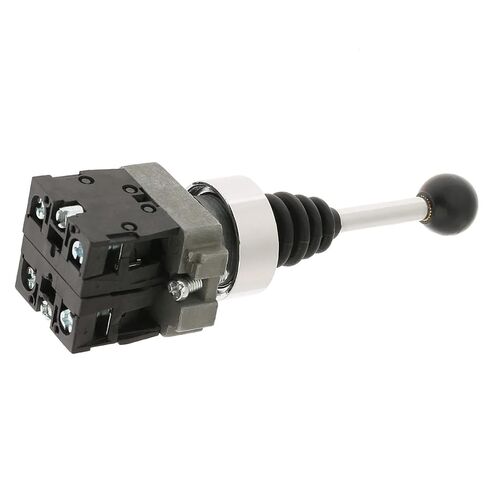

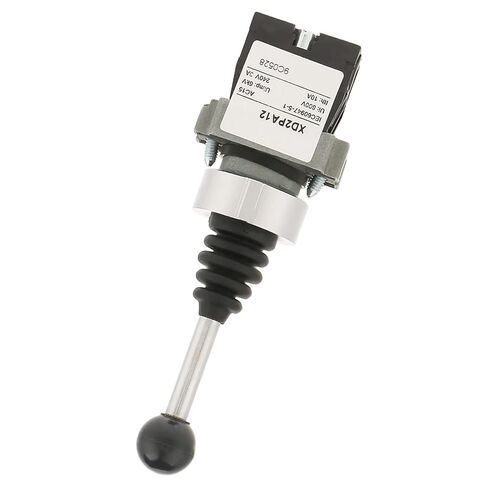

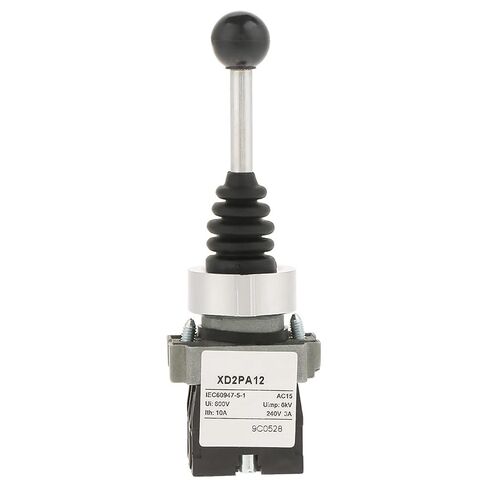

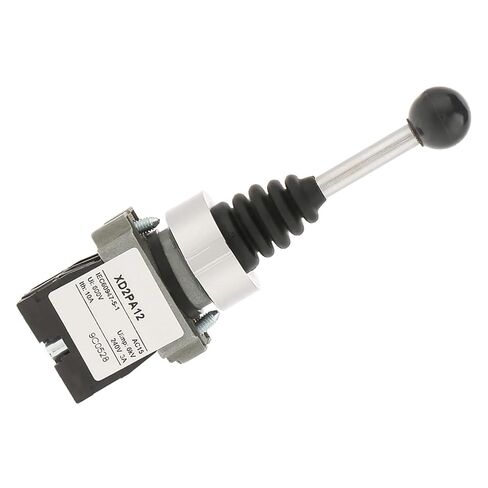

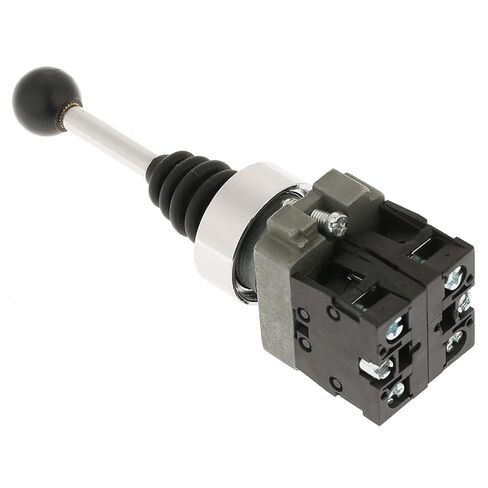

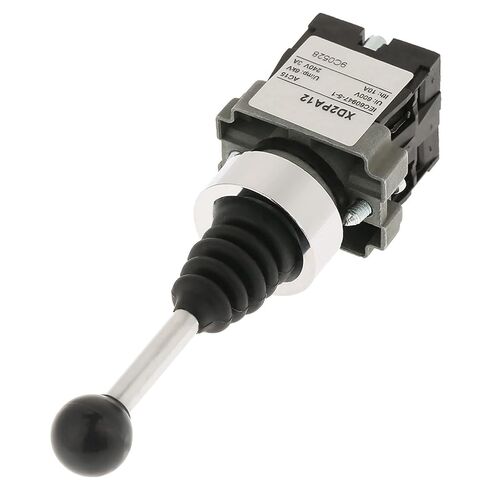

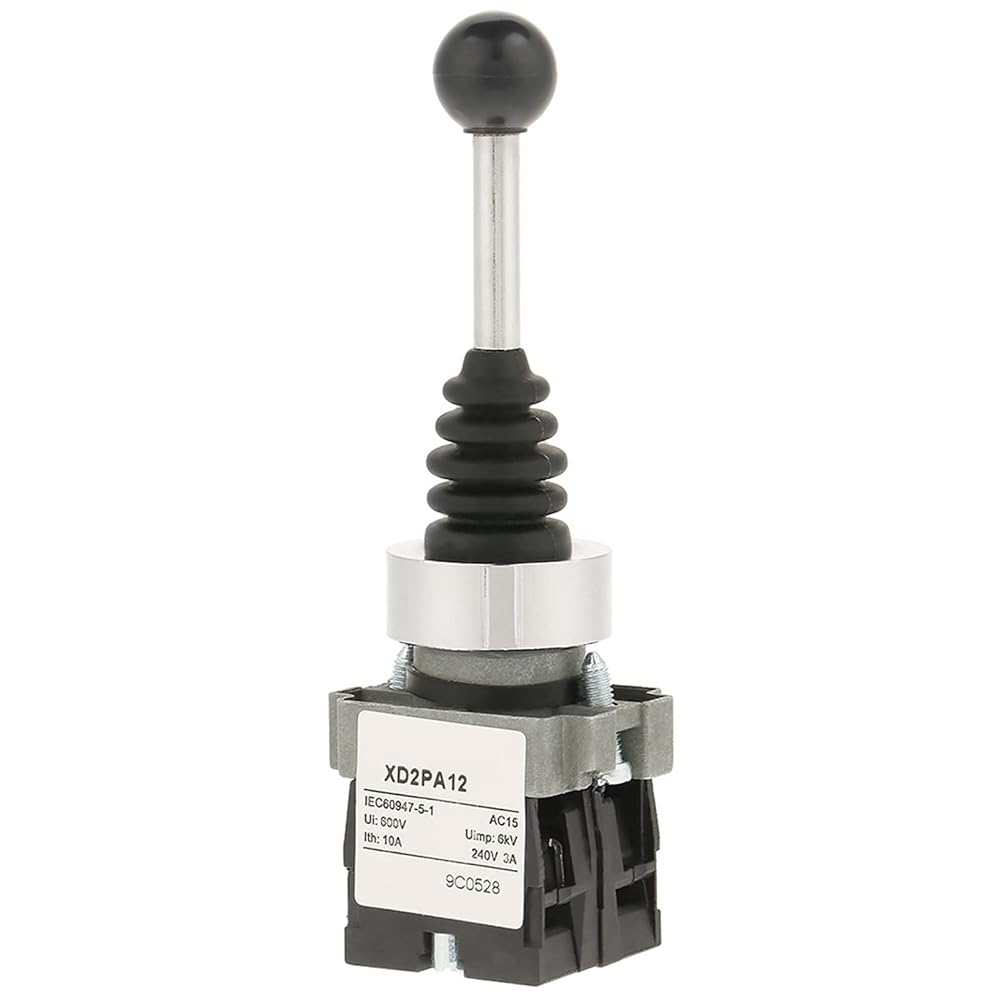

This Two-way self-locking joystick switch is widely used for industrial control AC 50Hz and DC circuits.It can control magnetic starter, contactor, relay and other electrical circuits.
Features:
This Two-way self-locking joystick switch is widely used for industrial control AC 50Hz and DC circuits.
It can control magnetic starter, contactor, relay and other electrical circuits.
The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance.
The joystick switch is a Two-way self-locking switch, is 2NO type, so it has 2 normally open contacts.
This switch is easy for mounting and operation, with long serving life.
Specifications:
Model: XD2PA12
Contact: 2 NO
Rated voltage: 220V / 380V
Rated current: 5A / 10A
Assembly aperture: Dia. 22 mm
Electrical life: >500,000 times
Mechanical life: > 500,000 times
Standard operating environment:
Ambient temperature: -25 ~ +55 degrees Celsius (no ice)
Operating humidity: 45 ~ 85%RH (no condensation)
Contact resistance: ?50m?
Insulation resistance: ?100?
Maximum withstand voltage: 3000V, AC 50Hz
Vibration: 50 Hz, amplitude: Approx. 1mm
Impact resistance: > 10m/(about 10G)
grade: IP55
Overall size: 12.3 x 4cm / 4.84 x 1.57inch
Weight: 124g
Package Includes:
1 x Joystick Switch (XD2PA12)
