Stable and Practical Design: This antenna tuner features a high quality metal shell that ensures stable performance and practicality. It is easy to operate, making it suitable for everyday use while offering stable service over an extended period.
Automatic Tuning for Radio Stations: Designed to automatically tune without the need for control wires, this antenna tuner is compatible with most radio stations. Its automatic tuning capability simplifies setup and , enhancing efficiency for both amateur and professional users.

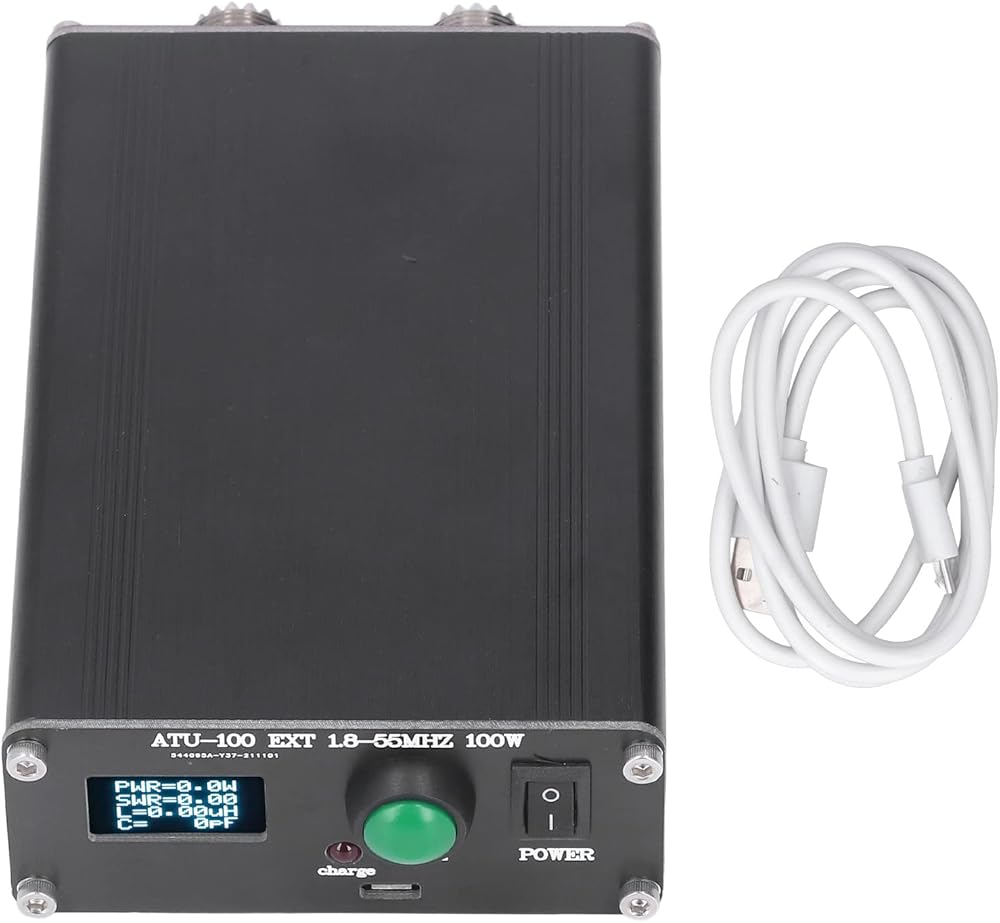

Compact Display and Housing: The mini shortwave automatic antenna tuner comes equipped with a Type C charging port and a 0.96 inch display. The compact design and housing make it easy to handle and monitor tuning status, providing convenience for on the go adjustments.
Advanced Configuration Components: Utilizing C channel capacitors and high quality 1000V SMD capacitors along with advanced chips, this tuner offers excellent configuration. These components ensure precise tuning and stable connections, supporting optimal performance in various environments.
Resistant Aluminum Construction: Constructed from high quality aluminum material, this antenna tuner boasts good strength and resistant. The robust construction protects internal components from damage, ensuring consistent performance even under challenging conditions.
Description
Item Type: Antenna Tuner
Material: Aluminum alloy
Model: ATU-100
Display: 0.96in OLED
Operating Frequency: 1.8-55 MHz
Battery Model: 3.6V lithium battery 1350MAH
USB Charging Current: 1A
Maximum Operating Power: 100
Maximum Possible Measured Power: 150
1 Watt: Necessary to start setting the minimum power
Minimum Possible Measured Power: 0.1
Measurement Steps With Power Up To 10W: 0.1W
When Robust Measurement Steps STI Above 10 : 1 watt
Power Measurement Accuracy: 10%
Specified Maximum Inductance: 8.53uH capacitance
Minimum Installation Step Size of Inductor: 0.05μH
Maximum Mounting Capacity: 1869 pF Capacitor
Minimum Installation Step: 10
Package List:
1 x Host
1 x USB Cable
1 x User Manual
Note:
1. Insufficient adjustment may occur within 5W. So don't try to go below 5W.
2. It is recommended that the maximum power should not exceed 30 during tuning. (it can be set to 100 after tuning, and work at this power, otherwise it is easy to burn)
3. You need to use 9‑12V to start the ATU‑100. If you use a power bank or computer USB port to output power, you cannot start the ATU‑100 because their voltage is too low.
