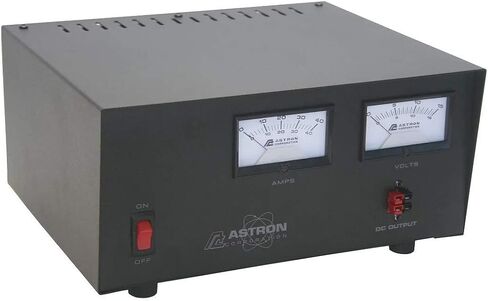

Astron RS-70M-AP Desktop 13.8VDC Linear Power Supply with Meters and Anderson Power Poles, 70A Peak, 57A Continuous

KWD 226

Brand
VORAGA
Weight
20.5 kg
1 +

Special Features

  • CONTINUOUS DUTY: 57 Amps
  • ICS: 70 Amps
  • POWER TERMINALS: 1/4"-20 Screw Type and Anderson Power Poles
  • FAN COOLED: Yes
  • Separate Voltage and Amperage Meters Included

Description

Features and Specifications
SOLID STATE ELECTRONICALLY REGULATED
FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output
CROWBAR OVER VOLTAGE PROTECTION ON ALL MODELS
MAINTAIN REGULATION AND LOW RIPPLE at low line input Voltage
THREE CONDUCTOR POWER CORD
HEAVY DUTY HEAT SINK
INPUT VOLTAGE: 105-125VAC
OUTPUT VOLTAGE: 13.8VDC ±0.05 volts​
INTERNALLY ADJUSTABLE VOLTAGE (11-15VDC)
RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)
LOAD REGULATION: 0.08% from 0 to Full Continuous Load​​
EFFICIENCY: 77%
OPERATING TEMP: -10 to 55°C
