Features:
Effortless One-Click Data Backup: Simplify your data backup routine! Simply plug in both hard drives to the NVME docking station and press the clone button for seamless data transfer from source to target drive. No computer connection required, streamlining your backup process like never before.
Fast Transfer Speeds: Experience unparalleled data transmission with support for USB 3.2 Gen2x2 and dual NVME protocols. This M.2 NVME SSD docking station boasts astonishing transfer speeds of up to 1700MB/s, enhancing your work efficiency and saving precious time.
Convenient Mobile Access: Access your data on-the-go with mobile support. Connect your smartphone to the external hard disk using a data cable and effortlessly retrieve or transfer files directly from your phone.

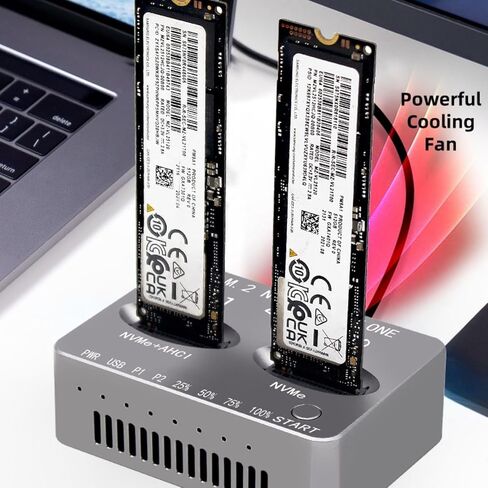

Advanced Cooling System: Ensure optimal performance with a built-in powerful cooling fan and aluminum alloy casing. This combination ensures efficient heat dissipation, maintaining safe operating temperatures for your hard drives and prolonging their lifespan.
Robust and Stylish Design: Crafted from durable aluminum alloy, this solid disk case is designed to withstand the test of time. Its sleek and sturdy design not only provides robust protection against damage but also facilitates efficient heat exportation, ensuring your hard drives remain safe and secure.
Specifications:

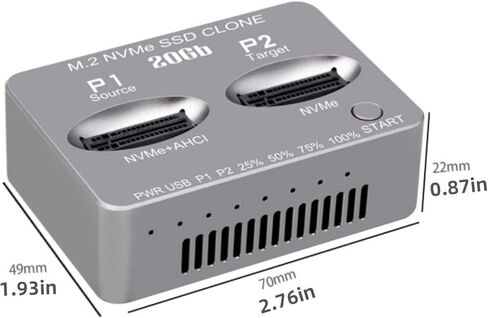

Dimensions: 70x49x22mm (2.76x1.93x0.87in)
Color: Grey
Model: PH8586U

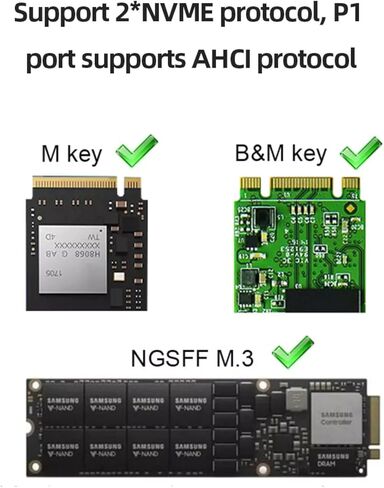

HDD Interface: Supports M Key, B&M Key
Input Interface: USB3.2 Type-C Gen2X2 (20Gbps)
Compatibility: For Windows, for Mac, for Linux (With UASP function)
Protocol: Supports M.2 & M.3 NVME PCI-E
Main Control Chip: JMS586U
Transmission Speed: Up to 20Gbps
Material: Aluminum Alloy Shell
Supported SSDs: 2x NGFF M.2 M-Key NVME SSDs, P1 AHCI SSDs, for Mac 2013-2015 12+16Pin SSDs, for Macbook Air Retina, for Mac Pro, for iMac
Interface: Type-C
Data Transfer: GEN2x2 (20Gb/s)
Power Supply: PD Protocol 5V-20V, QC Protocol 5V-12V
Cloning: Supports NVME to NVME SSD offline cloning, supports AHCI to NVME SSD offline cloning
SSD: Only for NVME, not for SATA
Indicator light description:
PER: White power indicator. Turns on when power is switched on; turns off when power is switched off.
USB: Emerald green + red. Type-C USB GEN2x2 data link is normal when the emerald green indicator light is on; USB data is not connected when the red indicator light is on.
P1: Emerald green SSD status indicator for the P1 position. Lights up when the SSD link in the P1 position is normal.
P2: Emerald green SSD status indicator for the P2 position. Lights up when the SSD link in the P2 position is normal.
25%, 50%, 75%, 100%: Blue indicators. Represent the mode and cloning progress.

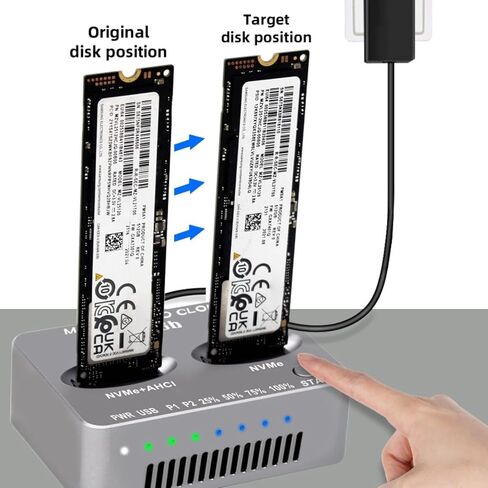

Offline cloning instructions for use:
1. The P1 position accesses the original data disk, supporting NVMe protocol and AHCI protocol SSDs (Note: For the P1 position using MAC12 + 16Pin AHCI protocol SSD, an adapter card is required to convert the SSD to NGFF M.2 M-Key gold finger).
2. The P2 position accesses the cloning target disk, supporting NVMe protocol SSDs with a capacity equal to or greater than the source data disk.
3. Connect the Type-C power adapter and lightly press the power switch to turn on the power. The PWR white power indicator light will illuminate; there is no need to connect the Type-C USB GEN2x2 cable.
4. Wait for a few seconds until the green LEDs on P1 and P2 light up, indicating that the master has recognized the P1 source data disk and the P2 clone target disk.
5. Long-press the "START" button for 5 seconds. When 25% to 100% of the four blue lights flash continuously, it indicates entry into cloning mode. Press the "START" button again; when the data copy progress reaches 25%, the 25% to 100% of the four blue lights will start moving back and forth. When the data copying progress reaches 25%, the 25% blue indicator light will remain lit, while the 50%-100% lights continue to move back and forth. Know that when 100% is lit constantly, it means the cloning is completed.
Package Included:
1 x SSD Clone Base
