DIGITUS Network Cabinet 10" / 19" - Wall Installation - 10 inch (10 Rack Units Horizontal) or 19 inch (5 Rack Units Vertical) - Gray

KWD 83
Brand
Digitus
Category
Racks & Cabinets
Weight
10.3 kg
– 1 +

Special Features

  • The combination network cabinet with 10 horizontal rack units for 10" devices (alternatively 5 rack units for vertical 19" installations) is particularly suited for small office environments or private use
  • In the front area of the wall housing there is a profile frame for horizontal & vertical installation - In the rear area, additional profile rails are available with 10 rack units for 10" installations
  • The max. installation depth of the rack to the back wall is approx. 260 mm, to the rear profile perforation approx. 220 mm - Entries for cable feedthrough are positioned in the roof, floor and on the back side

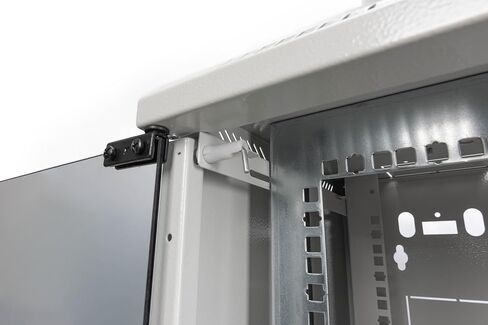

  • The combination wall housing is protected in accordance with IP20 and has a lockable glass front door as well as 2 removable side wall - The door made of safety glass has an opening angle of 200°
  • Thanks to the robust steel construction, the load capacity of the profile rails is 30 kg - The compact design enables organized cable management and sufficient ventilation

Description

With its front installed all-around profile frame, the wall mounting cabinet offers the option of horizontal installation of 254 mm (10”) components (10 rack units) or alternatively a vertical installation of 482.6 mm (19”) components (5 rack units). The front profile frame depth is adjustable There are also integrated profile holes (254 mm, 10”) in the back of the cabinet frame for attachment of other components. The case is made of robust steel. Cable entries in the roof, floor and back offer excellent opportunities for organized cable management. The compact size makes it ideal for all standard IT and telecommunication applications, especially if space is limited or in private households.
