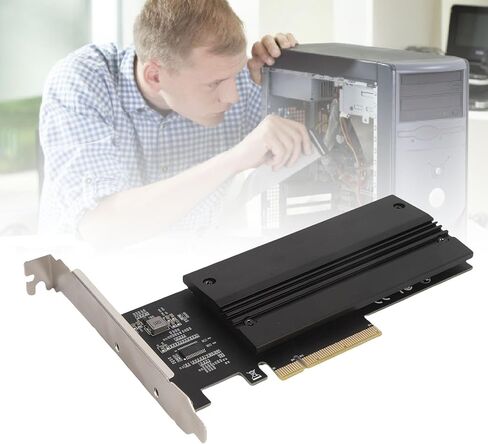

Sanpyl NVMe PCIe Adapter Card, 2 Port M.2 NVMe to PCIe 4.0 X8 Expansion Card with Aluminum Heat Sink, for Enhancing Data Management Storage Performance
M.2 NVMe to PCIe 4.0 X8 ADAPTER CARD: Install 2 M.2 NVMe SSDs on this PCIe 4.0 X8 adapter card, supporting for 2280 2260 2242 2230 M.2 NVMe SSDs, allowing your computer to access 2 M.2 NVMe SSDs simultaneously with full speed transfer up to 2x 32Gbps.
HARDWARE PLATFORM: Support soft RAID in for AMD platform. Configure PCIe Bifurcation mode in BIOS for corresponding PCIe slots to support X4X4X4 or Hyper M.2 X8 mode.
UPGRADED DESIGN: Features full metal heatsink design to prevent SSD from running slow due to high temperature and does not take up additional space in other PCIe slots. Independent LED indicator design shows the working status of each SSD. Compatible with all sizes of M.2 PCI-e NVMe SSD: 80x22mm, 60x22mm, 42x22mm, and 30x22mm, does not support any M.2 (B+M Key and NGFF based on Serial ATA) SSD.
HIGH PERFORMANCE: This expansion card is meticulously crafted with a high end PCB circuit board and features an aluminum heat sink to ensure excellent conductivity. The gold plated surfaces offers outstanding durability, ensuring optimal performance and longevity.
EASY INSTALLATION AND SETUP: The M2 NVMe expansion card is designed for straightforward installation and setup. With clear instructions and user friendly features, you can easily integrate it into your system to enjoy advanced storage capabilities. Experience seamless data management and enhanced storage performance.
Description
Spec:
Item Type: NVMe PCIe Adapter Card
Material: PCB+Aluminium Alloy
Interface Type: PCI Express 4.0
Slot: x8
Supported Hard Drive: M.2 NVME SSD, not compatible with M.2 Serial ATA protocol SSD, not compatible with NGFF
Compatible SSD Specs: Support for 2280 2260 2242 2230
Supported Systems: for Windows, for Linux
Transfer Rate: 2x32Gbps
Power Supply: No external power required
How to Use:
Simply remove the product for immediate use
packing list:
1 x Adapter Card
4 x Silicone Heat Sink
1 x Screwdriver
2 x Screws
2 x Nuts
Notice:
The motherboard supports PCI-E split function
