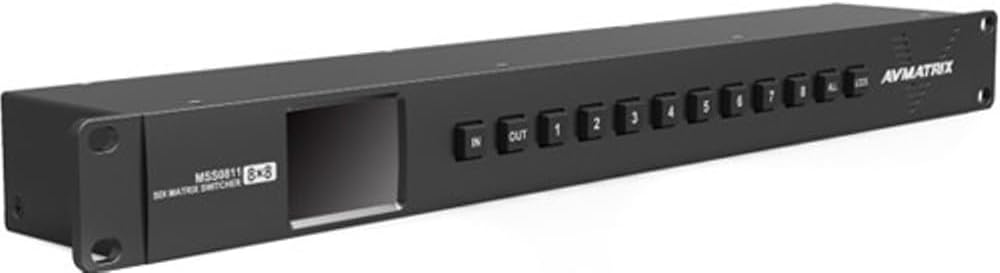

The AVMatrix MSS0811 is an 8 x 8 3G-SDI Matrix Switcher (YUV). It accepts 8 channels of input, and can drive them to 8 separate output feeds, controlled by manual switches on the front of the device.
8 x 8 Channels 3G-SDI Matrix Switcher
YUV Color Space
1U Standard Rackmount
Seamless Signal Switching - no black screen or snow
Pluggable modular cards, flexible configuration
LCD screen for system status

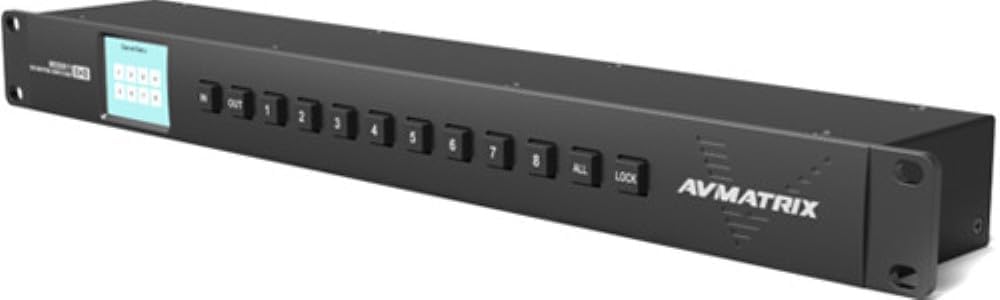

Front panel button control
RS232/4585/RJ45 port for remote control
Output supports up / down scaling and frame rate conversion
Equanlization and reclocking with professional rejitter Automatic test pattern generator

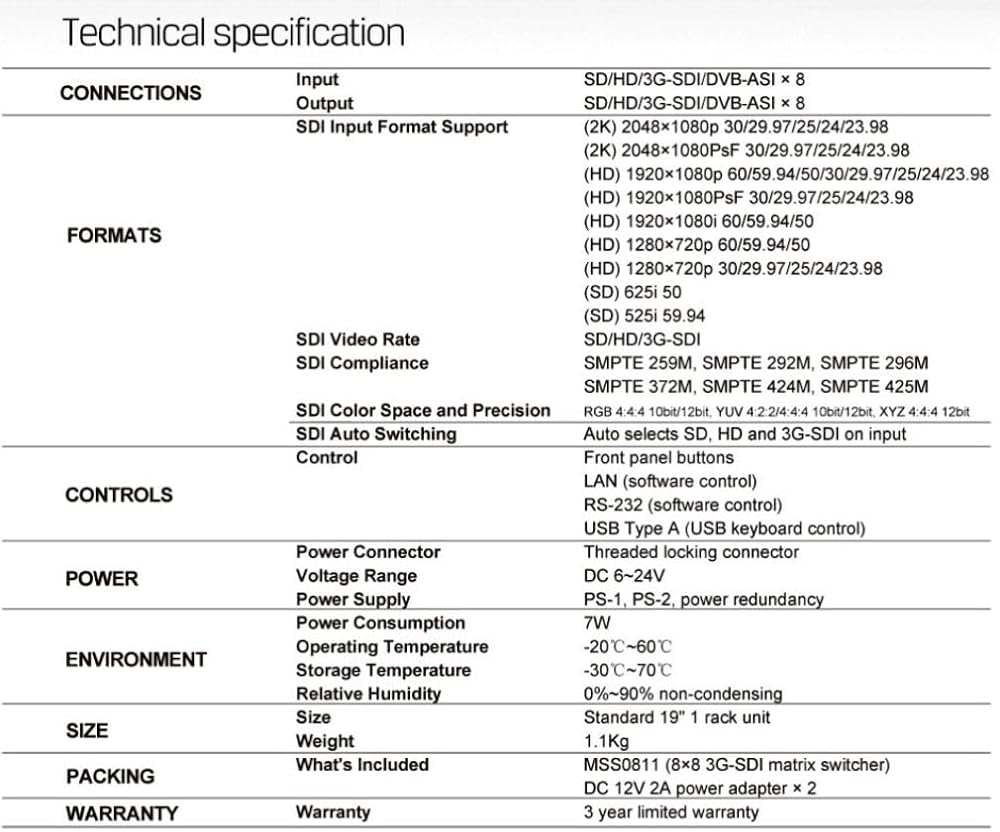

SDI Input
No. of Inputs8x
Bit Rate270Mbps - 2.97Gbps
Connector (SDI)BNC Compliant to IEC169-8 Standards
Signal Amplitude (SDI)800mV +- 10% (75 Ω)
Impedance (Input)75Ω
SDI Output
Bit Rate270Mbps - 2.97Gbps
Connector (SDI)BNC Compliant to IEC169-8 Standards
No. of Outputs8x
Signal Amplitude (SDI)800mV +- 10% (75 Ω)
Common Parameters
Operating VoltageAC 110-250V
Power Storage Humidity (%RH)0% - 90% RH
Storage Temperature (°c)-20°c to 75°c
Weight (g)2.8KG
Working Humidity (%RH)20% - 70% RH
Working Temperature (°c)0°c-50°c
