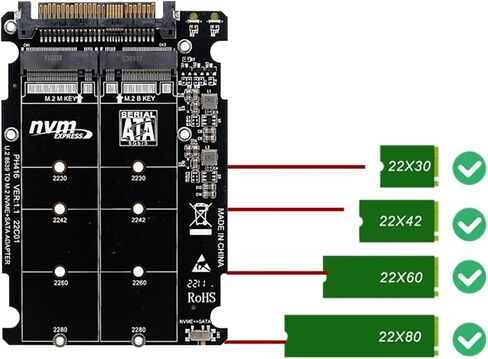

PH416 M.2 NVMe PCIe3.0 X4 to U.2 SFF8639 Extension Card 6G Support 2.5in SSD Bkey Mkey 2230 2242 2260 2280

Product Features
NGFF Mkey to m.2 NVME SSD U.2 Adapter
NGFF Bkey to m.2 SATA SSD U.2 Adapter
2in1 NVME and SATA M.2 to (U.2X16) Adapter Card

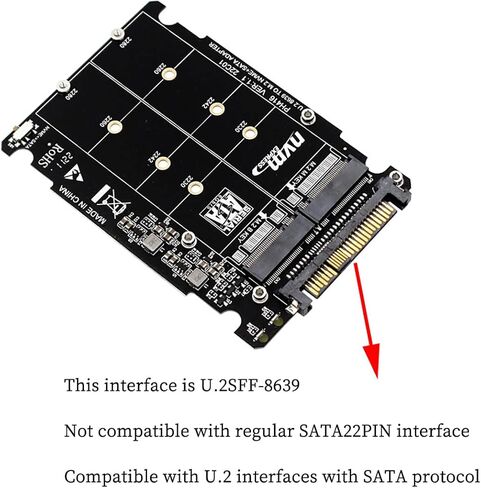

Interface U.2 SFF-8639
Does not support regular SATA 22PIN interface
U.2 interface with SATA protocol is supported.

Both disks can be used at the same time:
The PCIE+SATA to U.2 adapter can be used at the same time, and it can be used on server motherboards that support U.2 and SATA dual protocols, but only NVME SSDs can be used with 8643 to U.2 adapter cables, and ordinary motherboards that only have a PCIE channel but not a SATA channel.
When the switch is flipped to NVME direction: NVME protocol lights up.
When the switch is flipped to the SATA direction: SATA protocol lights up.
NVME disk has NVME indicator, SATA disk has SATA indicator, this switch just switch NVME indicator to U2 connector or SATA indicator to U2 connector.

Product Parameter
Product Name:M.2 to U.2 Expansion Card
Model No.:PH416PCBA/PH416B0X
Advantages:High-speed signal enhancement technology, full-speed transmission.
Precise structural design, support NVME SSD & SATA NGFF SSD, two 5A high power DC to DC power supply module, increase the switch indicator function.
Stable operation, PCIE3.0 X4 GEN3 design.
PH416PCBA size: 96*65mm
PH416BOX size: 100*70mm
