Package:

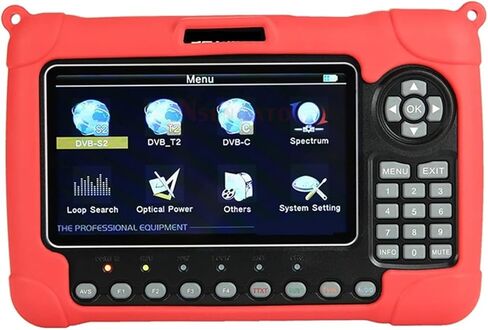

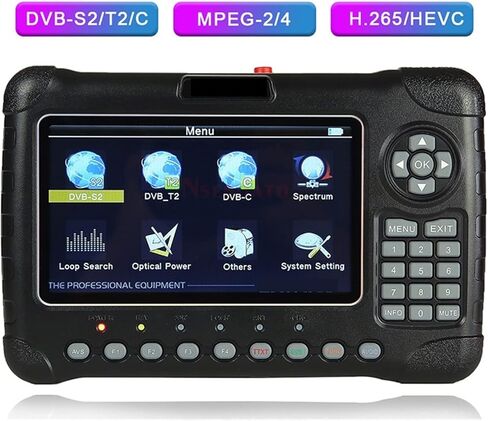

Digital Satellite Meter
User's manual
AV cable
Car charger cable
Power Adaptor
DC 12V connect line

Feature:
Constellation analyzer
Spectrum analyzer
Supports scan of Auto,Blind, Manual or NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Speaker Integrated
Support both AV out and AV in
Support both out and in
Support compass function
Optical Power measurement
LNB short protect
7.4V/5000mAh Liion Battery Included
Software upgrade via USB port
Easy to carry
TRANSMISSION STANDARDS:DVB-S2/S, DVBT/T2, DVB-C, MPEG-2, MPEG-4, H.264/H.265(8 Bit)
SATELLITE INPUT/DEMODULATION
Connector Type:F Type
Input Frequency:950 to 2150 MHz
Signal Input Level:- 65 to -25 dBm
Band Switch Control:22KHz
LNB Supply:13V/18V, IMax 350mA
Demodulation Type:QPSK,8PSK,16APSK,32APSK
DVB-T/T2/C INPUT/DEMODULATION:
Connector Type:Female Type
Input Frequency:48 to 862 MHz
Signal Input Level:-79.5dBm (MAX)
ANT Supply:5V, 12V/24V Imax 100mA
Demodulation Type:QPSK,16QAM.64QAM,256QAM
LCD FEATURE
LCD Type:TFT Transmissive
Number of Dots:800 x 3(RGB) x 480

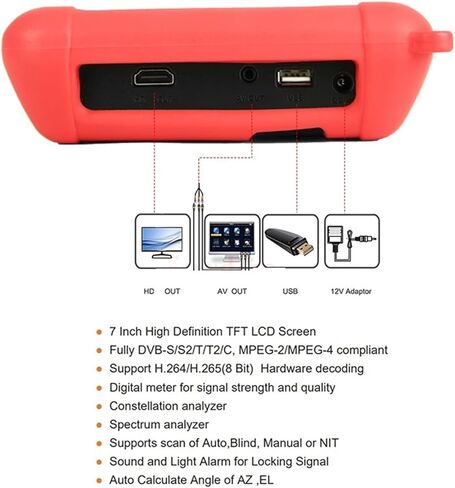

AV output/input interface
Connector Type:3.5 mm jack
Video input/Output:CVBS
Voice input/Output Stereo Voice L/R output
Voice/VIDEO PROCESSING
Video decompression:MPEG-2 MP@HL, MPEG-1 Decoding,MPEG4 ASP@L5 HD resolution,H.264/H.265 MP&HPL4HW JPEG decoding
Resolving ratePAL25 frame720*576,NTSC-30 frame@720*480
Signal compatibility:Support conversion for diferent video formats
Video Format:4:3,16:9,By Pan & Scan and Letter Box conversion
Voice DecompressionMPEG1 Layer III, MPEG-2 Layer I/II
Voice Output Mode:Stereo, Mono,R/L
POWER SUPPLY
LiIon Battery 7.4V/ 000mAh(The machine behind labeling shall prevail)
Adapter OUTPUT :DC12V/1.5A, INTUPT:100~240VAC 50/60Hz(Will
be subje
