2PCS 12V 25A with Equalization Li-ion Battery Protection Board 56x45x4.0mm Solar Street Light Sprayer Protection Board Li-ion Li-ion Battery PCB Protective Plate

KWD 12
Brand
YTgilo
Weight
28 g
– 1 +

Special Features

  • Over-voltage range:4.25-4.35V plus or minus 0.05V;Over-discharge voltage range:2.3-3.0V plus or minus 0.05V
  • Maximum operating current:0-25A;Maximum transient current:34-40A
  • Strictly follow the diagram to wire 0V (B-), 3.7V (B1), 7.4V (B2), 11.1V (B+), don't intentionally short circuit! It needs to be charged after wiring before output.
  • When connecting 3 groups of batteries in series, make sure that each group has the same voltage. If they are not the same, fill each set of batteries and use them. Do not mix good batteries with bad ones.
  • Do not mix good and bad batteries together! The closer the capacity/internal resistance of the 3 sets of batteries, the better! (The effect of using 2 good batteries + 1 bad battery = the effect of using 3 bad batteries).

Description

Model:HX-3S-FL25A-AOvercharge voltage range:4.25-4.35v plus or minus 0.05v
Size: 56x45x4.0mm
Over discharge voltage range:2.3-3.0v plus or minus 0.05v
Upper operating current:20-25A(pay attention to heat dissipation)Operating temperature:-40 to +509 degrees CelsiusUpper instantaneous current:35-40AStorage condition:-40 to +80 degrees Celsius
Static current: less than 30uA Effective life: more than 30,000 hours
Internal resistance: less than 100mS2
Short circuit protection:Protectable, delayed self-recovery.
Equalizing current:45mA
Charging voltage:12.6V-13V
Test point description:S1 52 short circuit a little P + P- will wheel out the voltage, that all MOS protection is normal, plus a normally open temperature detection can expand the role of temperature protection.

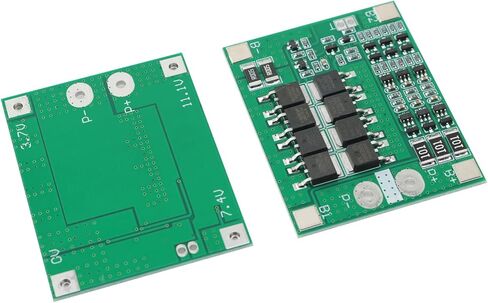

The size of the protection board and device description.
The protection board size of 56x45x4.0mm.
