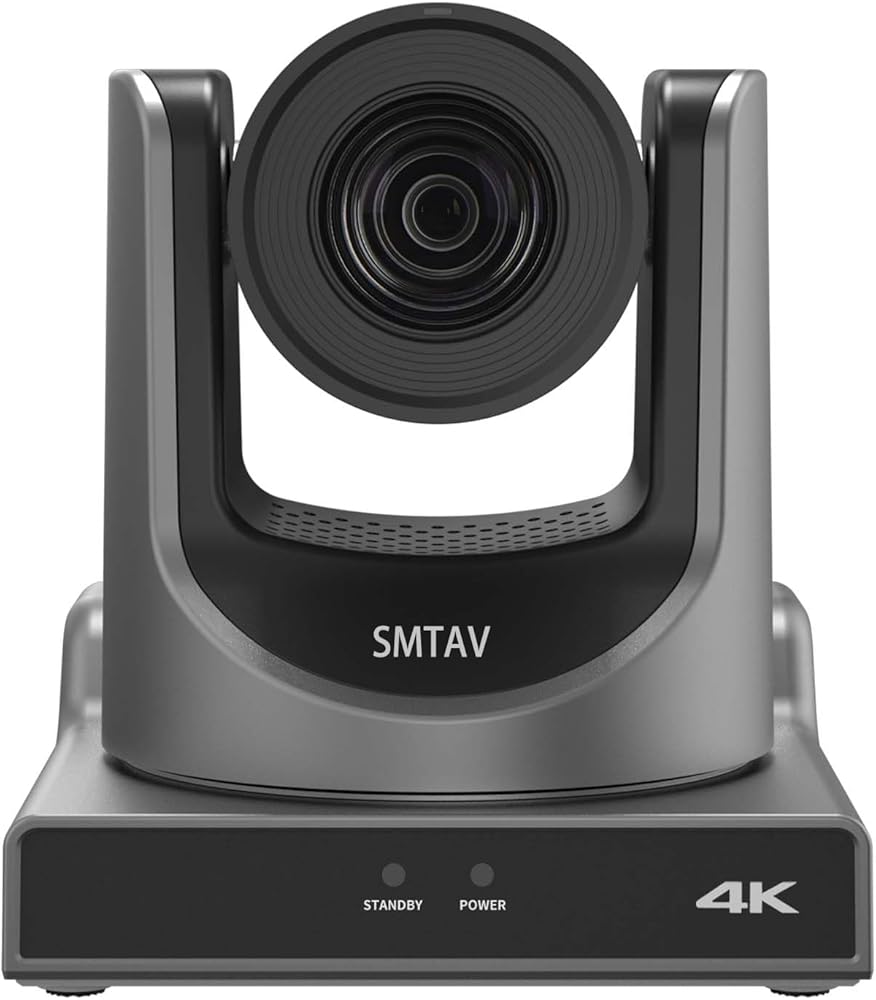

SMTAV 20X Optics Zoom 4KP60UHD NDI PTZ Camera, Support AI Auto Tracking and POE with Network IP Live Streaming, Simultaneous NDMi 3G-SDI and USB2.0 Video Output, for Conferences, Church, Teaching

KWD 287.500
Brand
SMTAV
Category
Webcams
Weight
1.5 kg
ColorBlack
Size20X 4KP60 NDI
– 1 +

Special Features

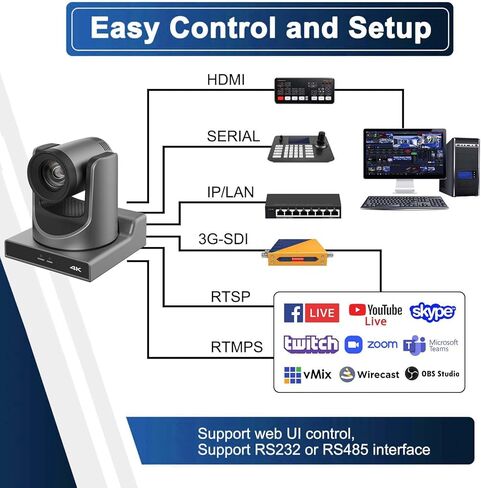

  • Rich interfaces: Support HDMi2.0 high-definition output, can directly output 4Kp60 uncompressed digital video. Equipped with 3G-SDI interface, 3G-SDI effective transmission distance can reach 150 meters (1080p30). HDMi or 3G-SDI, USB and LAN can simultaneously output three-way high-definition digital signals.
  • 20x optical zoom: Adopting a new generation of upgraded 1/1.8-inch high-quality UHD CMOS sensor 4K ultra-telephoto lens, 8 million pixels ultra-high resolution, it can achieve 4K (3840x2160) ultra-high resolution high-quality image quality. And backward compatible with 1080p, 720p and other resolutions. 20x optical zoom, maximum field of view up to 60°.
  • Low illumination: The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise in low illumination. The application of 3D noise reduction algorithm can greatly reduce image noise. Even in ultra-low illumination, the picture is still clear and sharp, and the image signal-to-noise ratio is as high as 55dB or more.
  • AI tracking: With the powerful AI computing power of the chip, the camera is equipped with advanced AI algorithms to achieve monocular human body tracking, and can achieve automatic tracking in scenes such as education, conferences, and live broadcasts.
  • Support NDI: NDI|HX2 has the characteristics of low latency and plug-and-play, which is convenient for project implementation and deployment, has a good ecology, supports simultaneous transmission of audio, video and control commands, and is a new generation of network video transmission.

Description

Sensor :1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels
Lens: 20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95
Digital Zoom: 16x
Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
Digital Noise Reduction: 3D digital noise reduction
Video S/N: ≥55dB
Horizontal Angle of View: 60° ~ 3.5°
Horizontal Angle of View: 35.7° ~ 2.0°
H & V Flip: Supported
Number of Preset: 255
Preset Accuracy: 0.1°
USB Featured
USB Type USB2.0 Type A
Color System / Compression: YUY2 / H.264 / MJPEG
Video Format YUY2 :MAX 1080P@5fps H.264 AVC: MAX 2160P@30fps MJPEG:MAX 2160P@30fps
Audio on USB Supported
USB Video Communication Protocol UVC 1.1~1.5
UVC PTZ Supported
Network Features
Video Compression H.264/MJPEG
Main Stream Resolution 3840x2160
Video Bit Rate 32kbps~51200kbps
Support protocols NDI|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on

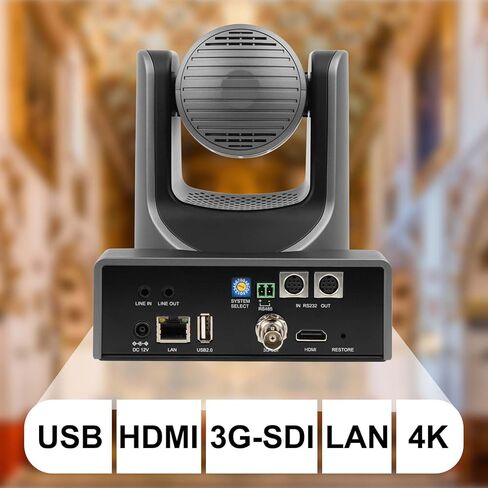

Input/Output Interface
1xHDMI: 2.0 Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94/29.97fps..
1x3G-SDI: BNC , 800mVp-p, 75Ω,1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps..
1xRJ45: 10M/100M/1000M Adaptive Ethernet, Support PoE
1-ch , 3.5mm Audio Interface, Line In；
1x 3.5mm Audio Interface, Line Out；
1xUSB2.0, Type-A(Can be configured as Host or Device by software)
1xRS232 In: 8pin Min DIN, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Protocol: VISCA/Pelco-D/Pelco-P
RESTORE Support
Power Jack JEITA type (DC IN 12V)
