The Alphacool Core Flat Reservior not only looks stylish with its aRGB lighting, but can also be used flexibly with a total of 5 connections. The expansion tank is made entirely of acrylic. A D5 or VPP pump is required for operation. Due to its flat design, the Core Flat Reservior also fits in small housings.

Core design
A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" connections. With the Core Flat Reservior, the connections are recessed and not screwed into a thread as usual. In this way, Alphacool avoids the problem of possible leaks due to Crack formation due to the direct screwing of the connections into the acrylic.

Easy installation

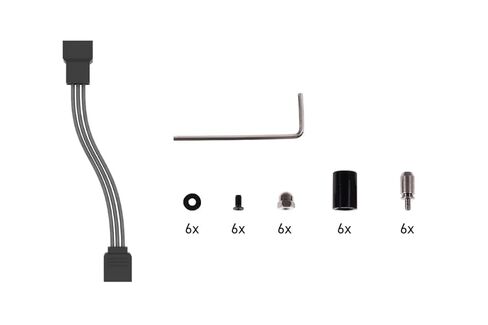

With the help of the included Core Push Mounting Kit, the Core Flat Reservior can be mounted on the housing panel or on a radiator. To do this, use the metal pins on the radiator or on the panel of the PC case attached and the matching female sleeves attached to the Flat Reservior (see manual).

High-quality choice of materials & brilliant lighting

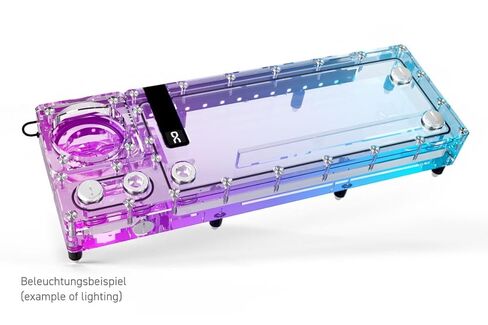

Alphacool's Core Flat Reservior is made from high-quality acrylic glass. This allows a clear view of the coolant and a brilliant play of colors thanks to the built-in digitally addressable aRGB lighting.
Compatibility:
- Mounting on the radiator or panel possible

Technical data
Dimensions (L x W x H): 360 x 125 x 45mm
Volume (expansion tank): 500ml
Material: Acrylic
Pump compatibility: D5/VPP
Connections: 5x G1/4“ internal thread / 1x drain port
Maximum working temperature: 60 C
Pressure tested: 0.8 bar
Number of digital aRGB LEDs: 12
Voltage digital aRGB LEDs: 5V
Power connection: digital aRGB LEDs 3-pin JST + 3-pin 5V
Color: transparent
Model: 15486
