Tripp Lite Isolator series isolation transformers offer complete line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, backround spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Active transformer filtering with no wearable parts is uniquely able to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500 offers 500 watts capacity with 4 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment. 2 year manufacturers warranty.

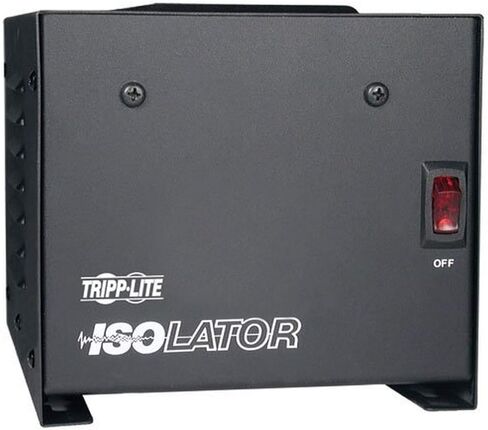

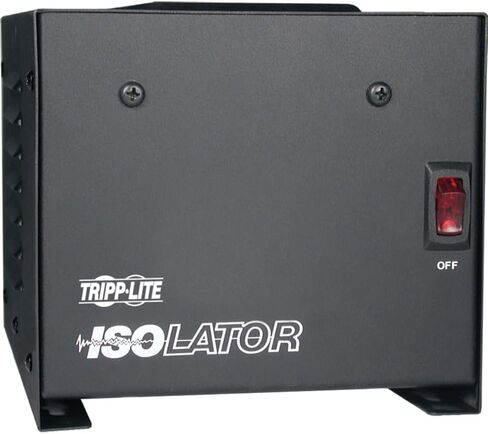

Utility power problems like EMI/RFI line noise, surges and background spikes can destroy equipment, damage crucial data and lead to critical system failures. Protect your sensitive devices and prevent power disruption with Tripp Lite's Isolator IS500 Power Conditioner. Featuring an internal isolation transformer with a Faraday Shield, the IS500 completely isolates equipment from line noise that can cause incremental, but devastating, equipment damage. Its 680-joule surge suppression rating protects equipment from surges and spikes caused by utility power disruptions and the operation of nearby equipment on the same circuit. With 100% isolation, the IS500 eliminates the need for dedicated circuits and costly site electrical upgrades. Its six-foot power cord allows for flexibility when installing, while the built-in circuit breaker prevents dangerous circuit overloads. 500 watts of capacity allow for use with a variety of sensitive electronics like point-of-sale equipment, diagnostic testing devices, telecom systems and more. The widely spaced NEMA 5-15R output receptacles fit any standard input plug and the lighted power switch offers convenient, one-touch power control. For peace of mind, the IS500 features a rugged, all-metal housing and comes with a two-year warranty.
Key FeaturesIsolator™ IS500 Isolation Transformer-Based Power Conditioner:Fully isolated protection with enhanced surge suppression and noise filtering for point-of-sale equipment, telecom systems, diagnostic testing devices and other sensitive electronics
Isolation transformer with Faraday Shield offers 100% isolation from the input AC line, removing harmful EMI/RFI noise, utility switching transients and background spikes
500-watt continuous capacity with 4 standard NEMA 5-15R output receptacles
680-joule surge suppression rating
6-ft. power cord provides installation flexibility
Circuit breaker provides overload protection
Convenient, lighted power switch for simple power control
2-year warranty
Completely Isolate and Protect Valuable Equipment for Less
Completely Isolate and Protect Valuable Equipment for LessBy isolating equipment from unpredictable and disruptive utility power, the IS500 eliminates the need for dedicated circuits or costly upgrades to your site's electrical systems. The internal isolation transformer with Faraday Shield provides 100% isolation from the AC power line for equipment plugged into the IS500 Power Conditioner. The IS500 is perfect for protecting sensitive point-of-sale, telecom and diagnostic equipment that can be affected by EMI/RFI line noise, utility switching transients, background spikes and other unpredictable power conditions.
High-Capacity with Robust FeaturesThe IS500's 500-watt capacity can handle a variety of devices, while features like a 680-joule surge suppression rating, integrated circuit breaker and powerful line noise filtering provide ultimate protection and safety in even the most dangerous conditions. With its continuous transformer filtering and no wearable parts, the IS500 reduces surges in the worst power environments to harmless levels.
Convenient, User-Friendly OperationA 6-ft. cord allows for flexible installation, while four NEMA 5-15R output receptacles let you plug your standard equipment into the IS500 without any adapters or custom power cords. Operation is easy; simply plug the IS500 into a grounded three-prong utility outlet, plug your equipment into the IS500 and turn the power on. The lighted power switch allows for simple one-touch power control of all connected equipment.
Peace of MindThe IS500 is compliant with RoHS and TAA standards and also comes with a two year warranty.
What's in the Box• IS500 Isolation Transformer System
• Instruction Manual with Warranty Information
Technical Specifications Tripp Lite's Isolator™ IS500 Isolation Transformer-Based Power Conditioner: Amp Capacity: 2.1A at 120V AC Efficiency: 96% Form Factor: Small tower format, wall mountable Input Plug Type: NEMA 5-15P Let-through Voltage (Combination Wave): L-N: 80dB common mode Nominal Voltage / Frequency: 120V / 60Hz Output Receptacle Qty / Type: 4 NEMA 5-15R Over Current Protection: Yes, 4.5A circuit breaker Suppression Joule Rating: 680 Joules Surge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms Total Harmonic Distortion: less than 1% Transformer Type: Low-impedance isolation transformer VA / Watt Capacity: 500 Input cord length (ft.): 6 Cooling method: Convection Unit Dimensions (HWD/in): 5.5 x 6.25 x 8.5 Unit weight (lbs): 12.8 Product Warranty Period (Worldwide): 2-year limited warranty
Isolator Power Conditioners Capacity 250 W 500 W Outlets 2 NEMA 5-15R 4 NEMA 5-15R Cord 6 ft. 6 ft. Surge Suppression 680 Joules 680 Joules Warranty 2-year 2-year
