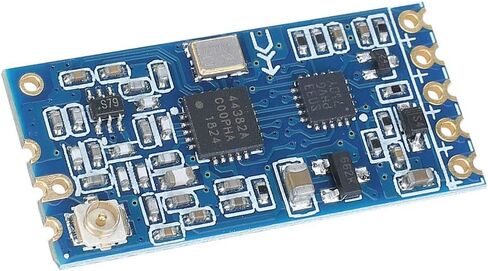

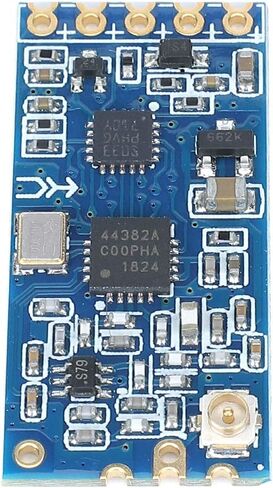

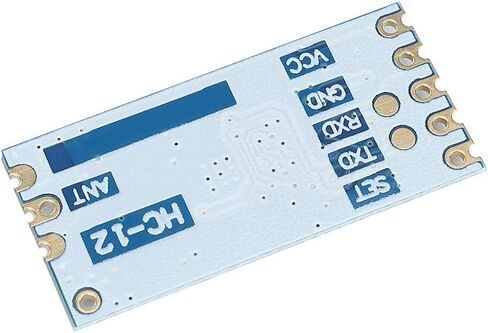

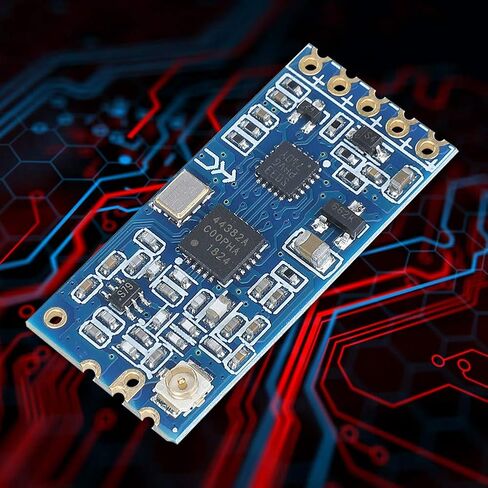

HC-12 SI4463 Serial Port Module 1000m with Spring Shaped Antenna for Networking, Transparent Transmission, MCU Communication

KWD 4.500
Brand
YWBL-WH
Category
Network Adapters
Weight
7 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Multiple Interconnection] Supports one to many connections and transparent transmission.
  • [Versatile Connections] Supports various connection types like one-to-one, one-to-many, many-to-one, many-to-many.

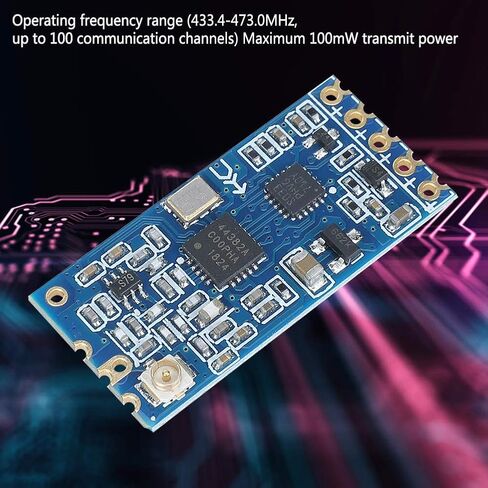

  • [Frequency Range] Operates from 433.4-473.0mhz, with up to 100 communication channels and 100mw transmit power.
  • [Built-in Program] No need to pay attention to serial protocol, automatic networking.
  • [Easy to Use] Built-in mcu for hassle- communication with external devices via serial port.

Description

Specification:
Voltage:3.2~5.5V(If the module is to be in the transmitting state for a long time, it is recommended to connect a 1N4007 diode in series when the power supply voltage exceeds 4.5V to avoid the built-in LDO heating of the module.)
Distance:600m(The maximum communication distance can be adjusted to 1000m and the air baud rate is 5000bps)
Default Standby Current:16mA(The working current of the module is different in different working modes)

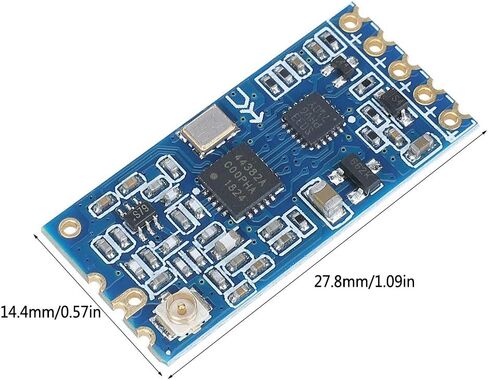

Size:27.8 * 14.4 * 4mm / 1.09 * 0.57 * 0.16in
Working Frequency:433.4~473.0MHz
Maximum Transmission Wattage:100mW

package
1*Module

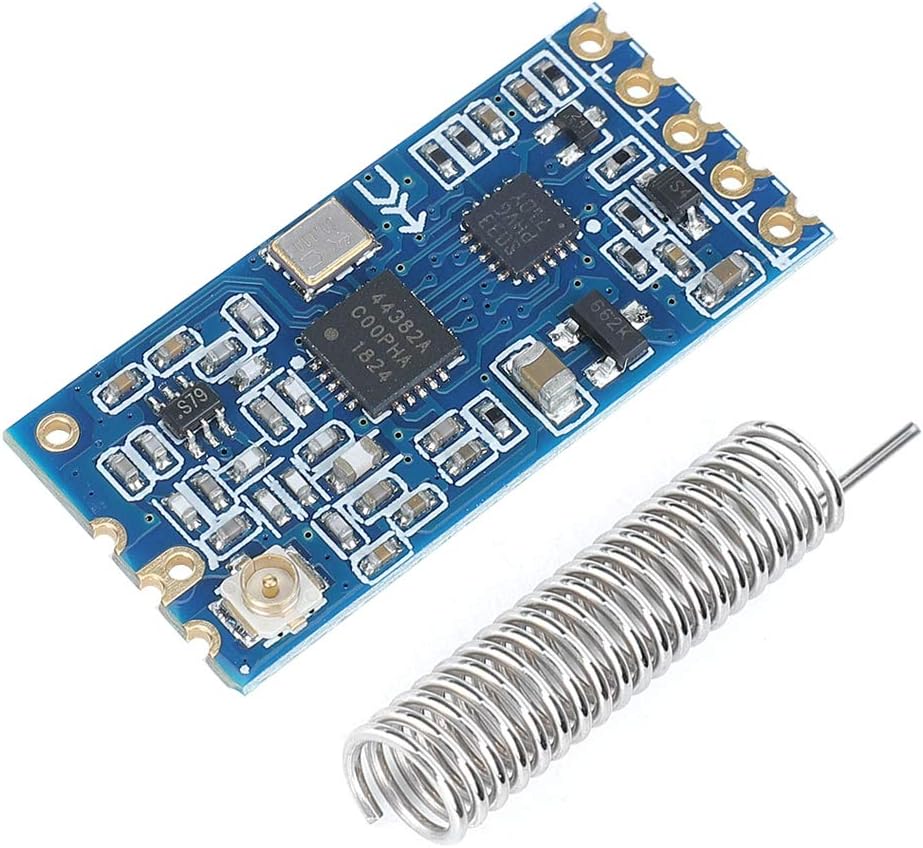

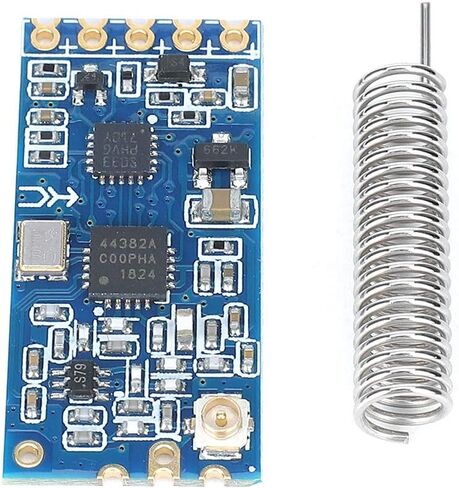

1*Spring Shaped Antenna
