Spec:
Item Type: Transmitter Receiver
Material: ABS
Model: YET-TR6
Color: As Pictures Shown
Support Music /Reception
Technical Support: AD2P
Version: BT5.0 + EDR
Working Range: 8-10m(Without Any Obstacles)
Matching Name(Receiver Mode): YET-TR6
Weight: Approx. 29g

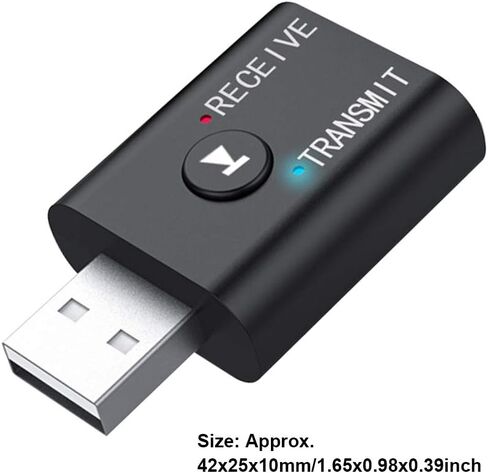

Size: Approx. 42x25x10mm/1.65x0.98x0.39inch
Using instructions
/reception mode switching
Audio cable insertion line TRANSMTT hole in mode, blue LED
Audio cable inserted into the RECEIVE hole in the receiving mode, red LED
USB insert computer transferring
How to use

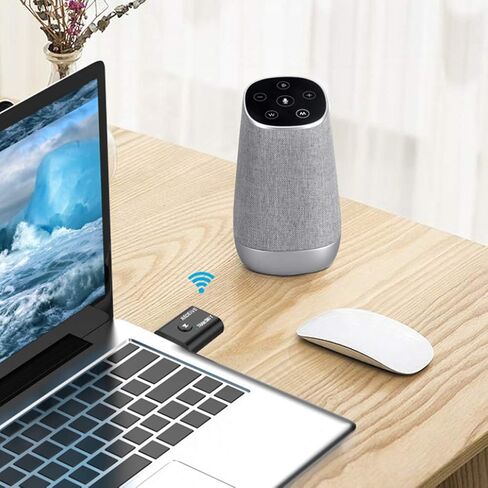

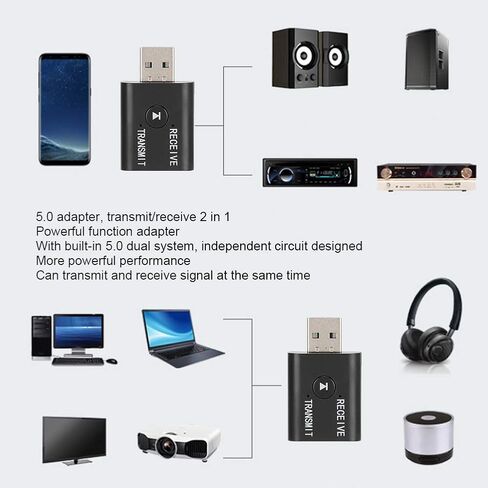

Transmitter mode (used to send Comeuter / TV / MP3 audio to Bluetooth headset / sound)
1. The adapter is plugged into the USB power supply, the blue LED flashes and enters the transfer mode
2. Insert one end of the audio cable into the adapter TRANSMIT port, and the other end into the audio output port (OUTPUT) of the TV or other equipment,
Remarks: In transmitter mode, this product has USB + AUX dual input function. If it is used in a computer, there is no need to plug in an audio cable, plug directly into USB
3. Turn on the Bluetooth headset / stereo, etc., and enter the pairing state
4. Wait a moment, the automatic connection is successful, and the indicator light is always on.
5. Open the APP music player software on the TV or computer, you can play music through the Bluetooth headset

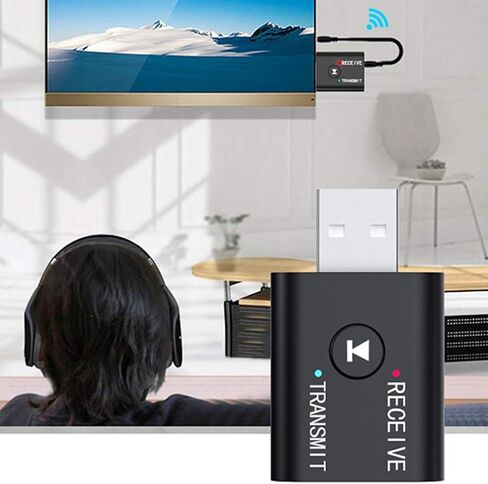

Receiver mode (used for normal audio / car / wired headphones, etc.)
1. Plug the adapter into USB power supply
2. Insert one end of the audio cable into the RECEIVE port of the adapter and the other end into the audio input tolerance (INPUT) of the audio equipment.
3. Turn on the Rhuetooth function of the phone or tablet, search: YET-TR6 click to pair
packing list:

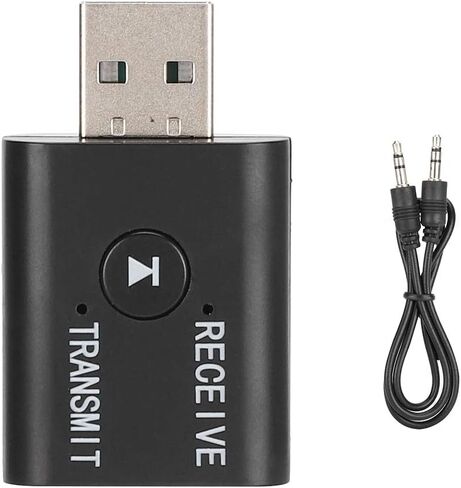

1 x Bluetooth 5.0 Transmitter/Receiver Adapter
1 x 3.5mm Assist Cable
1 x User Manual
