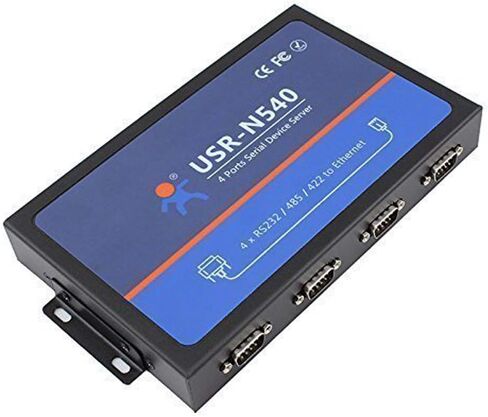

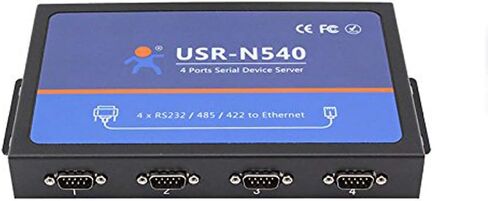

USR-N540, a four serial device server, can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface. it is based on ARM processor,low power, rapid speed and high stability. And N540 is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
RJ45 -
Port: 1
Standard: 4 pin RJ45
Speed rate: 10/100Mbps, MDI/MDIX
Protection: 2KV electromagnetic isolation
Protocal: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Websocket, HTTPD Client
Buffer: TX: 16K byte, RX: 16K bytes
COM Port --
Port: RS232 / RS485 / RS485 x 4, can work at the same time
Standard: RS232: DB9 male connector, RS485: A+ B-, RS422: (A, B, Y, Z)
Baud rate: 600-230.4K bps
Data bit: 5, 6, 7, 8
Parity bit: None, Odd, Even, Space, Mark
Stop bit: 1, 2
Buffer: TX: 2K byte, RT: 2K byte
Flow control: RTS/CTS
RS485 resistor: 2.2K Ω
Protection: ESD 2KV, lighting, surge, over current
Power Input --
Voltage: 5-36 V
Type: DC jacker and + - terminal
Working current: 53mA (average) 12 V
Protection: ESD, lighting
Working Environment --
Working tempreture: -40 - 85 °C
Storage tempreture: -40 - 105 °C
Storage humidity: 5% - 95% (no condensation)
Dimensions: 222x122x29 mm, without terminal
Certification: CE, FCC, ROHS, WEEE

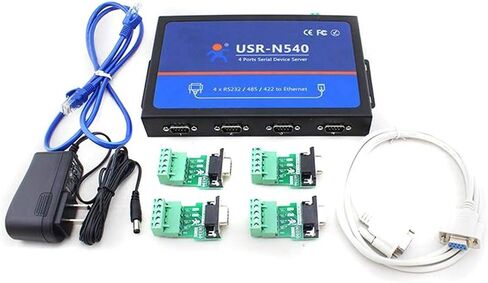

Packing List
Serial Device Server x 1
RS232 to RS485/RS422 converter x 4
Power adapter x 1
Serial cable x 1
