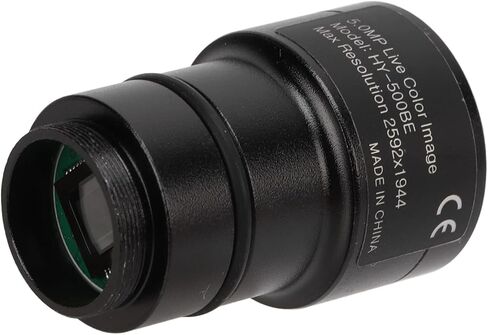

EVTSCAN Microscope Camera,5MP Cmos USB Digital Microscope Camera Alloy High Resolution High Speed Industrial Camera

KWD 47

Brand
EVTSCAN
Category
Microscopes
Weight
190 g
1 +

Special Features

  • [USB2.0 Interface] High speed USB2.0 interface, up to 480Mb/s, large area array CMOS progressive scan image sensor.
  • [Static And Dynamic Image] Support static and dynamic image acquisition, the exposure time can be adjusted arbitrarily.
  • [Simple To Use] This microscope camera can be used with a binocular or trinocular microscope, and it can be directly mounted on a biological or stereo eyepiece, suitable for biological microscopes and stereo microscopes.
  • [Installation Size] The installation size is 23.2mm, 30mm, 30.5mm, including two adapters 23.2mm to 30mm and 30.5mm.
  • [Widely Application] Widely used in pattern recognition, industrial detection, traffic management, image acquisition.

Description

Specification:

Item Type: Microscope Camera
Material: Alloy
Applicable Microscope: Biological microscope and stereo microscope
Interface: USB2.0
Picture Format: JPEG, BMP
Sensor Type And Size: MT9P001, 1/2.5 in true color CMOS
Pixel Size: 2.2um x 2.2um
Frame Rate: (MJPG) 2592 x 1944 and 12FPS, 2048x1536 and 15FPS, 1920x1080 and 15FPS, 1600x1200 and 15FPS, 1280x720 and 15FPS, 1280x960 and 15FPS, 1024x768 and 30FPS, 800x600 and 30FPS, 640x480 and 30FPS
Frame Rate: (YUY2) 2592 x 1944 and 2FPS, 2048x1536 and 2FPS, 1920x1080 and 4FPS, 1600x1200 and 4FPS, 1280x720 and 4FPS, 1280x960 and 4FPS, 1024x768 and 6FPS, 800x600 and 15FPS, 640x480 and 30FPS
Auto White Balance: Support
Exposure: Manual/Auto
Image Format: Jpg/bmp/png/gif
Video Format: AVI
Operating System: For WindowXP / for win7 / for win8 / for win10 or above / for Vista
Support: Capture software, driver
Software: Capture software, driver
Use Voltage And Current: 5V 1A
Installation Size: Approx. 23.2mm / 0.9in, 30mm / 1.2in, 30.5mm / 1.2in

Package List:
1 x Microscope Camera
2 x Lens Adapter
1 x CD
1 x USB Cable
1 x Manual

Note:Please supply power according to the use voltage, using other voltages may cause fire and product damage
