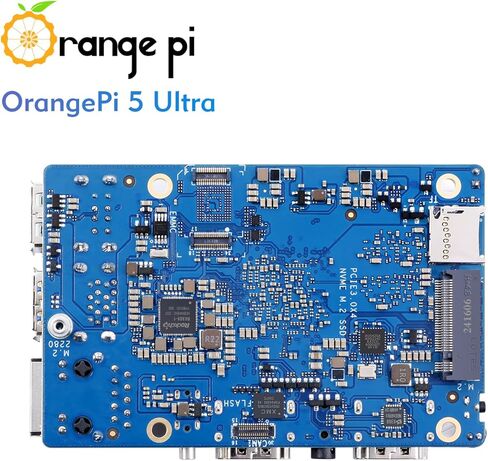

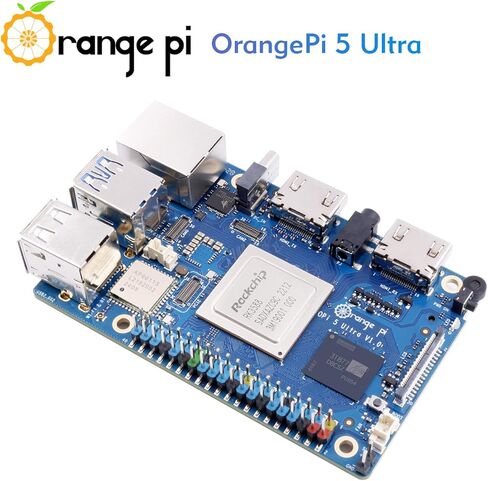

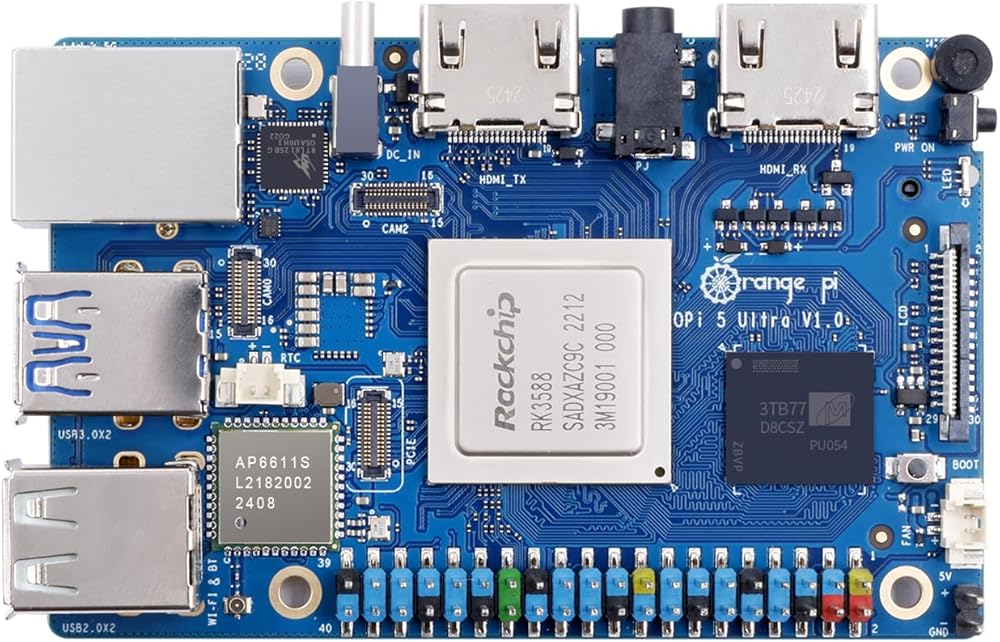

5 Ultra 16GB RAM LPDDR5 Rockchip RK3588 Development Board, 8K Video Decoding 2.4GHz Frequency M.2 PCIE 2.5G LAN Wi-Fi 6E+BT 5.3/BLE Single Board Computer (Pi 5 Ultra 16GB)

KWD 57

Brand
Orange Pi
Weight
57 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

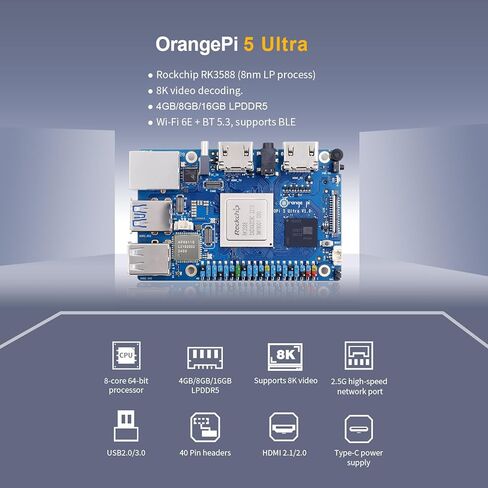

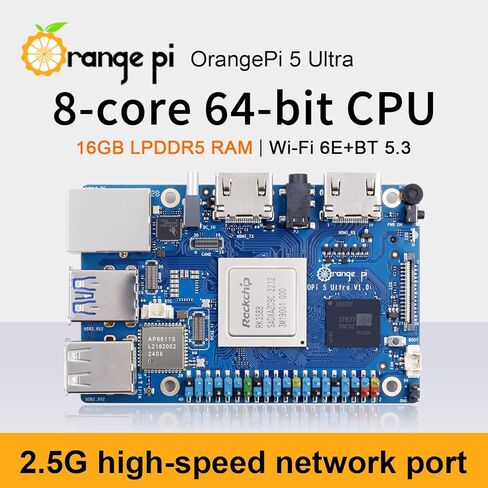

  • High Performance RK3588 - Orange Pi 5 Ultra 16GB uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2
  • LPDDR5 8K Video Decoding - Orange pi 5 Ultra has 16GB LPDDR5, with up to 8K display processing capability, the powerful video codec allows for clearer images and more detailed picture quality, 1*HDMl 2.1 out up to 8k@60FPS & 1*HDMl 2.0 in up to 4k@60FPS, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision. supports eMMC socket and onboard eMMC (either one )
  • 6TOPS High Computing Power - Orange Pi 5 Ultra 16G embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices, suitable for developing AI applications.
  • Wi-Fi 6E+BT 5.3 with BLE Support - Orange pi 5 Ultra has WiFi 6E + Bluetooth 5.3, supports BLE, stronger and more stable signals and easier and faster network transmission

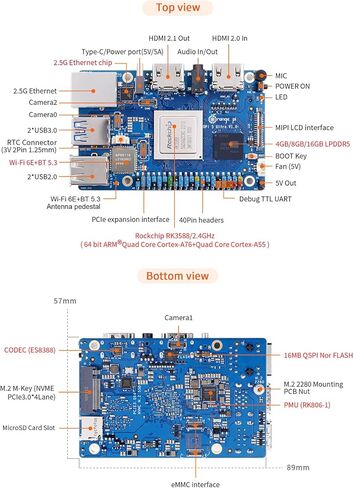

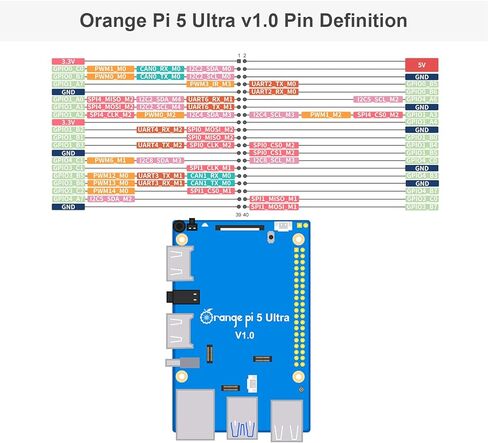

  • Rich Ports - OrangePi 5 Ultra provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.
  • Wide Range of Application Scenarios - Orange Pi 5 Ultra is compact, PCB measuring only 89mmX57mmX1.6mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Ultra supports Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS (OH), Ubuntu, Debian, Android13 operating system.
  • Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.
