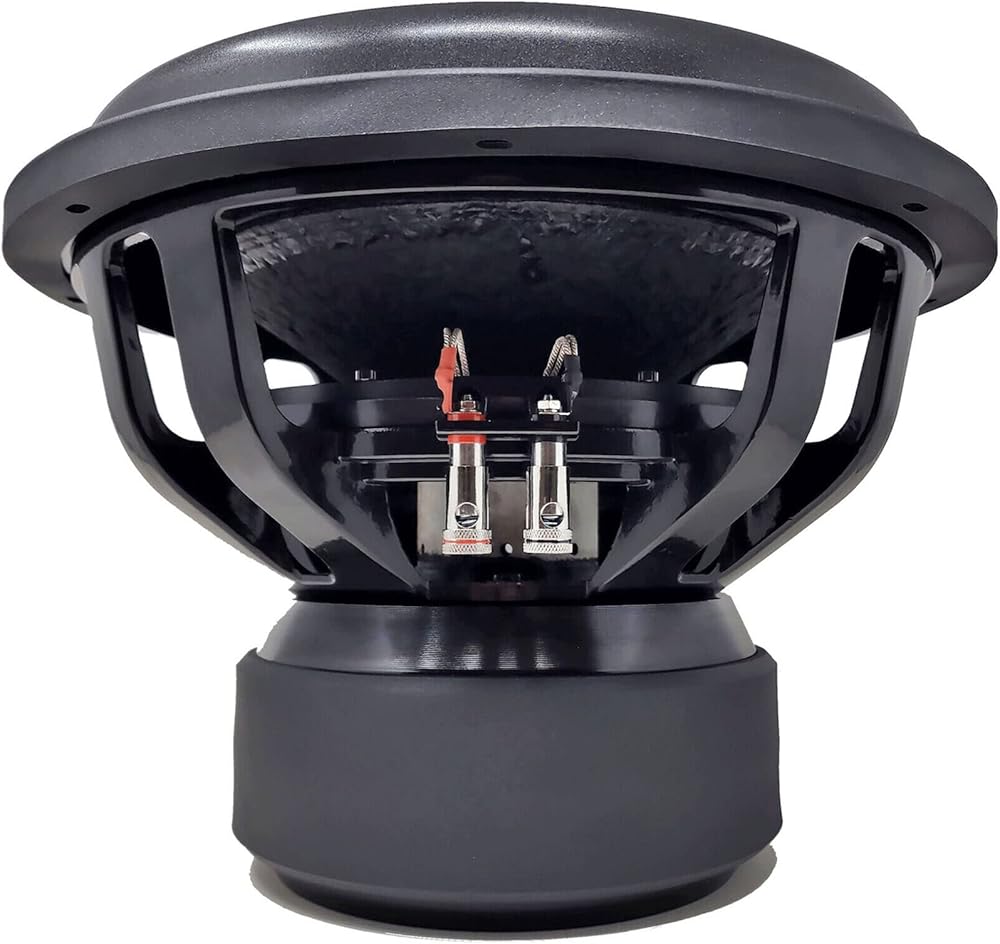

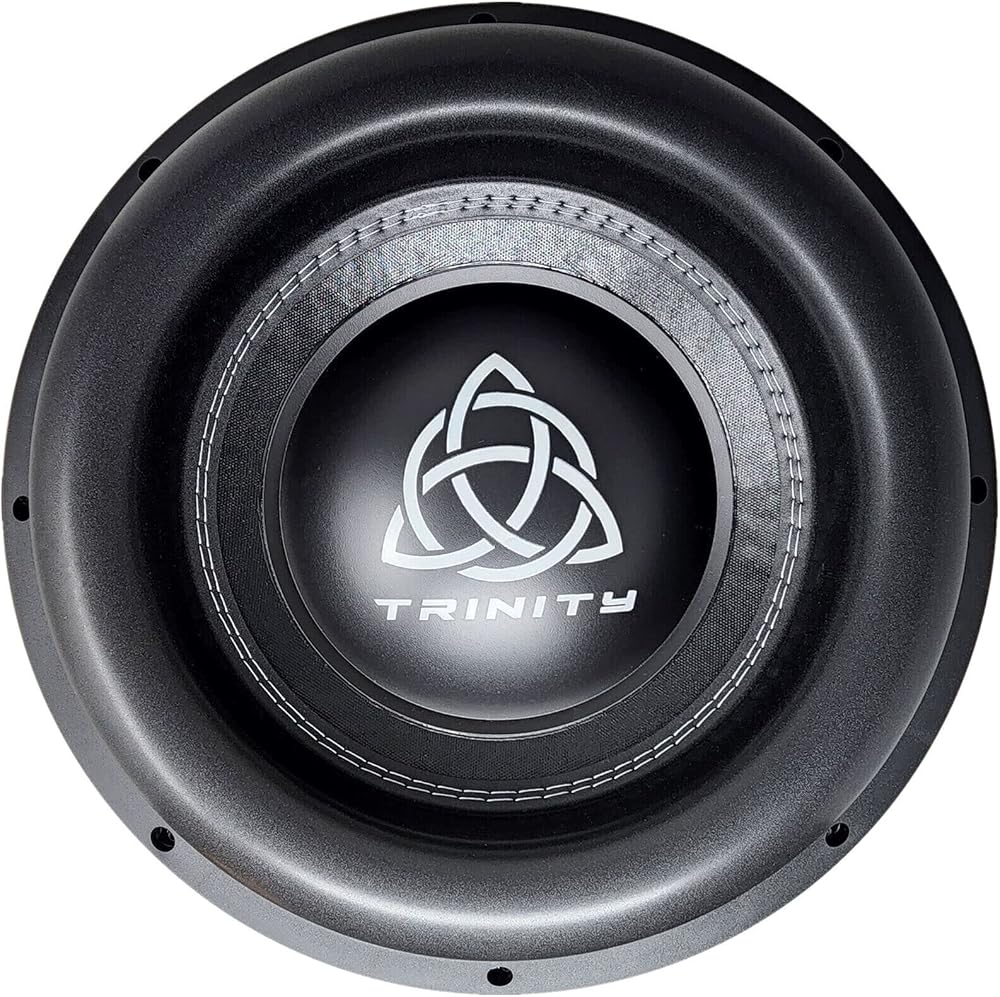

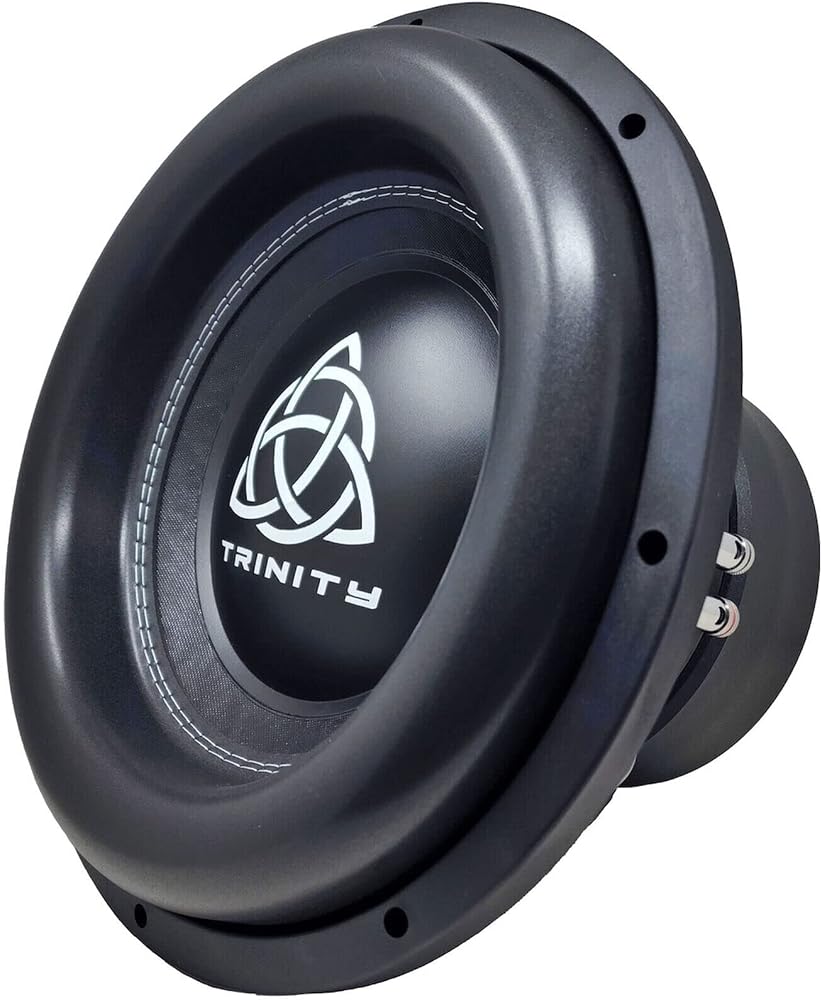

TAS-M15-D2 | Trinity Audio 15" 6000W Dual 2-Ohm Subwoofer
FEATURES:

Highlights:
- Cast aluminum high excursion basket with optimized air flow design.
- FEA enhanced motor structure.

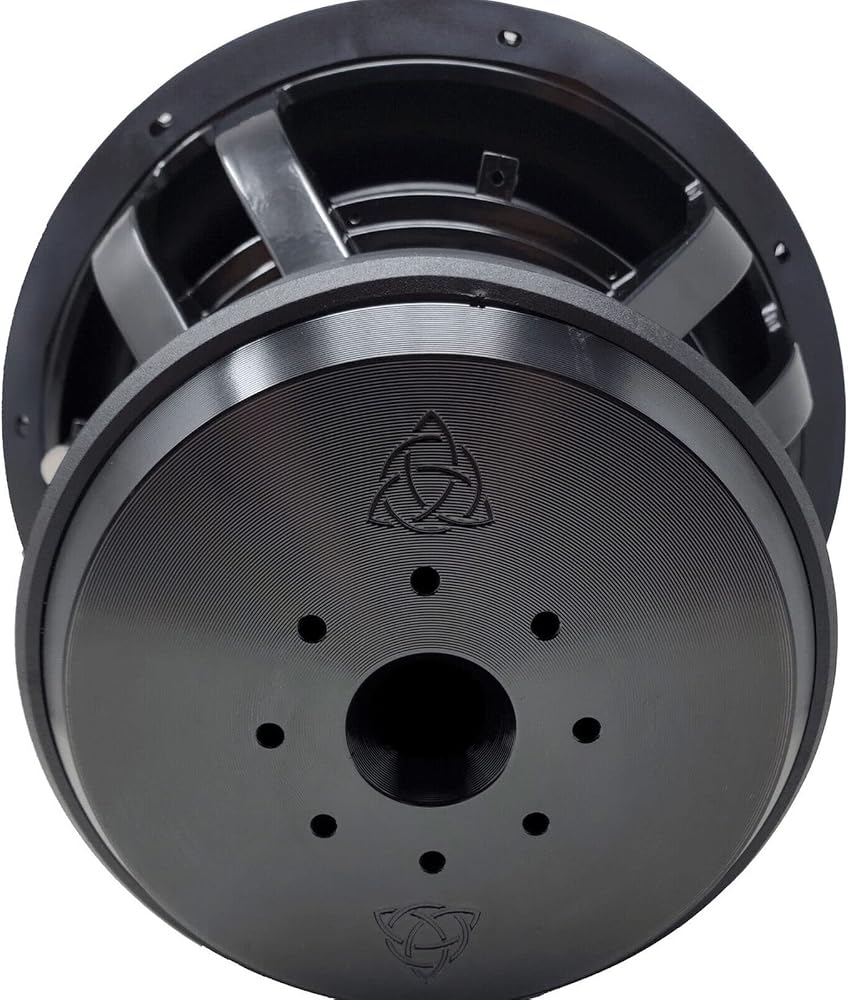

- CF tech (Cooling Flow) flared vent backplate for increased heat dissipation.
- Rigid composite paper cones with increased stability.
- Soft compliance triple layer stretch foam surround.
- 10“ Quad layer progressive roll spider pack.
- 3“ BASV high temperature dual voice coil.
SPECIFICATIONS:

SPECIFICATIONS PER SUBWOOFER:
Nominal Diameter: 15“
Nominal Impedance: Dual 2 Ohm
MAX Power Handling: 6000 Watts
RMS Power Handling: 2000 Watts
Sensitivity (1w/1m): 89.4dB
MOTOR:
Voice Coil Diameter: 3“
Voice Coil Former Material: BASV
Cone Material: Rigid Composite Paper
Surround Material: Foam
Basket Material: Aluminum
Basket Color: Black
Magnet Material: Ferrite
Magnet Weight: 650oz
Displacement Volume: 0.36ft³
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 48.4L
Excursion (One Way): X-Max - 1“ / X-Mech - 1.5“
Free Air Resonance: Fs - 27.2Hz
Mechanical Factor: Qms - 6.44
Electrical Factor: Qes - 0.04
Total Factor: Qts - 0.38
DC Resistance: Re - 3.8 Ohm
RECOMMENDED ENCLOSURES:
Sealed: 50L / 1.77ft³ / Qtc 0.475
Ported: 90L / 3.18ft³ / P.A 25.2in² L:20.2“ FB: 30Hz
4th Order: 2.5 : 1 Ratio
DIMENSIONS PER SUBWOOFER:
Overall Diameter: 15.55“ (395mm)
Front Mount Baffle Cutout: 13.78“ (350mm)
Mounting Depth: 9.37“ (238mm)
Motor Diameter: 9“ (230mm)
