Product Description

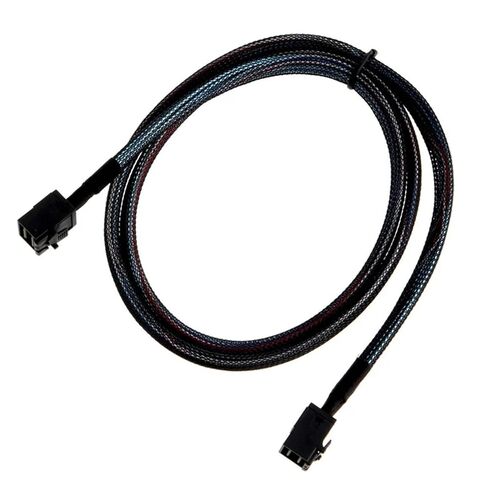

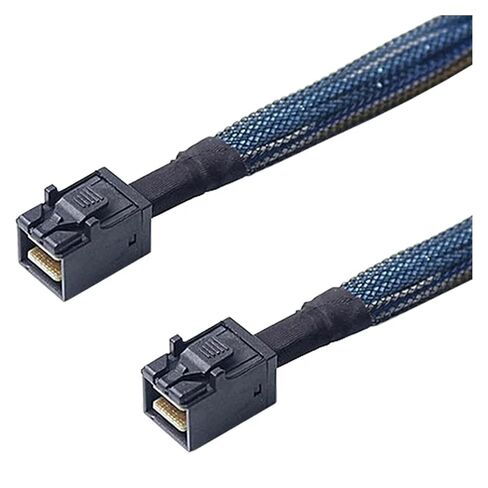

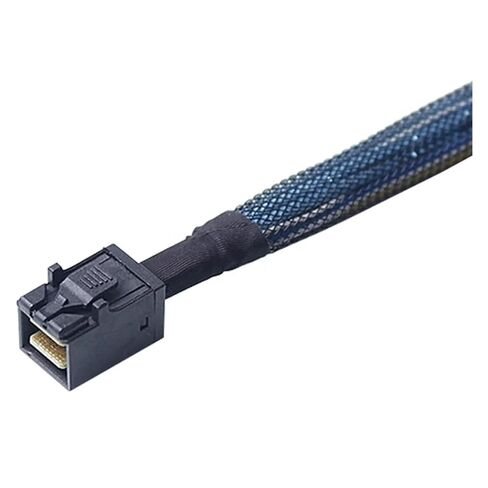

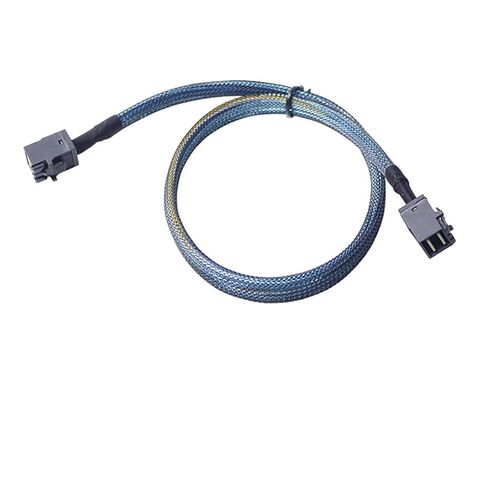

M/i/ni STR TO STR
M/i/ni 36P Straight to 36P Straight
Part Number
LRSAS M/i/ni SFF-8643
Product Description
Mini8643 to 8643
Series
M/i/ni sff cable
Cable Length
1.0/2.0/3.0 meters
Signal Wire Size
30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Plating
Au 3u' min over Ni 100u' min
Compliance
RoHSCable Horizontal flame, PCB 94V-0, PBT 94V-0
Introduction
The SFF-8643 is the latest M/i/ni connector design compatible with the implementing Internal interconnect solutions.
36 pin High Density M/i/ni SFF-8643 Internal cable assemblies are available compatible with the 2.1, 6Gb/s and 3.0, 12Gb/s specification. Hybrid versions of these new cables will allow compatible with the a smooth transition from 6Gbps to 12Gbps.
SFF-8643 is the new connector uses less PCB real estate and allows higher port density compatible with the internal hosts and devices.
SFF-8643 interface is the new connector uses less PCB real estate and allows higher port density compatible with the internal hosts and devices. It support up to 4-ports (4 lanes) of data and is compliant with the latest 3.0 spec
M/i/ni STR TO STR
Product Description: M/i/ni 36P Straight to 36P Straight
Series: M/i/ni
Cable Length: 1/2/3 meters
Wire Size: 30AWG, Tinned copper,OD: 0.9*2.3mm
Lock to Mating Part: With Latch
Plating: Au(3u" min) over Ni(100u" min)
Compliance:
Flammability: Cable Horizontal flame,PCB 94V-0,PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12 Gbps.
2. Meet SAS3.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. insert and extract at a speed of 25mm/minute.
Mating Force: 100 N maximum.
Unmating Force: 50 N maximum.
