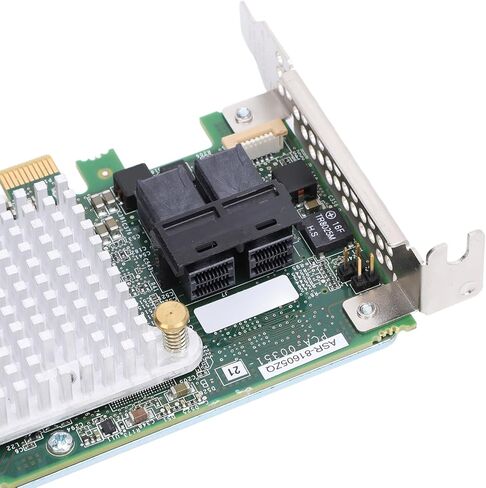

ASR 81605ZQ RAID Controller Card, 12Gbps PCI E Expander Card, 1GB Cache 16 Channels 256 Storage Devices PCIe X8 SAS RAID Controller Card

KWD 22
Brand
Bewinner
Category
Internal Cards
Weight
173 g
– 1 +

Special Features

  • HIGH SPEED PERFORMANCE: The ASR 81605ZQ array card supports data transfer rates of up to 12Gb/s, significantly enhancing data throughput to ensure fast and efficient data processing, ideal for computing environments with intensive data read/write requirements.
  • LARGE CAPACITY CACHE: Equipped with 1GB cache, this card enhances read/write performance and reduces latency, ensuring stable and efficient data processing capabilities even under high workload conditions.
  • VERSATILE RAID LEVEL SUPPORT: With support for multiple RAID levels including RAID 0, 1, 5, 6, 10, 50, 1E, and 60, users can choose the most suitable RAID configuration based on specific application requirements, achieving optimal data protective and performance balance.
  • STRONG COMPATIBILITY: This half height card not only supports the PCIe 3.0 x8 bus standard but is also compatible with various operating systems such as for SunSoft, for FreeBSD, for Red Hat for Linux, for SuSe for Linux, for Debian for Linux, for Ubuntu, and for VMware ESXi.
  • FLEXIBLE EXPANDABILITY: Featuring 16 channels and the ability to support up to 256 storage devices, the ASR 81605ZQ offers a scalable solution for future expansion, making it suitable for a wide range of applications in enterprise servers and data centers.

Description

Specification:
Item Type: RAID Controller Card
Material: PCB
Device Type: Storage Controller (RAID), Plug in Card, Half Height
Bus Type: PCIe 3.0 x8
Interface: 6Gb/s / SAS 12Gb/s
Data Transfer Rate: 12 Gbit/s
Cache: 1 GB
Supported Devices: Hard Drive, Disk Array (RAID), State Drive
Channel Qty: 16
Maximum Storage Devices Qty: 256
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1E, RAID 60
System Support: for SunSoft , for FreeBSD, for Red Hat for Linux, for SuSe for Linux, for Debian for Linux, for Ubuntu, for VMware ESXi

How to Use:
Plug and play

packing list:
1 x SAS Array Card
