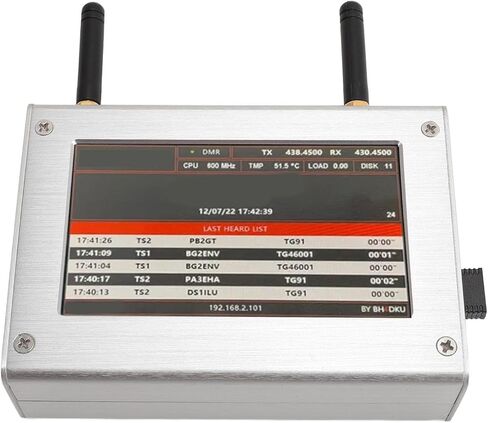

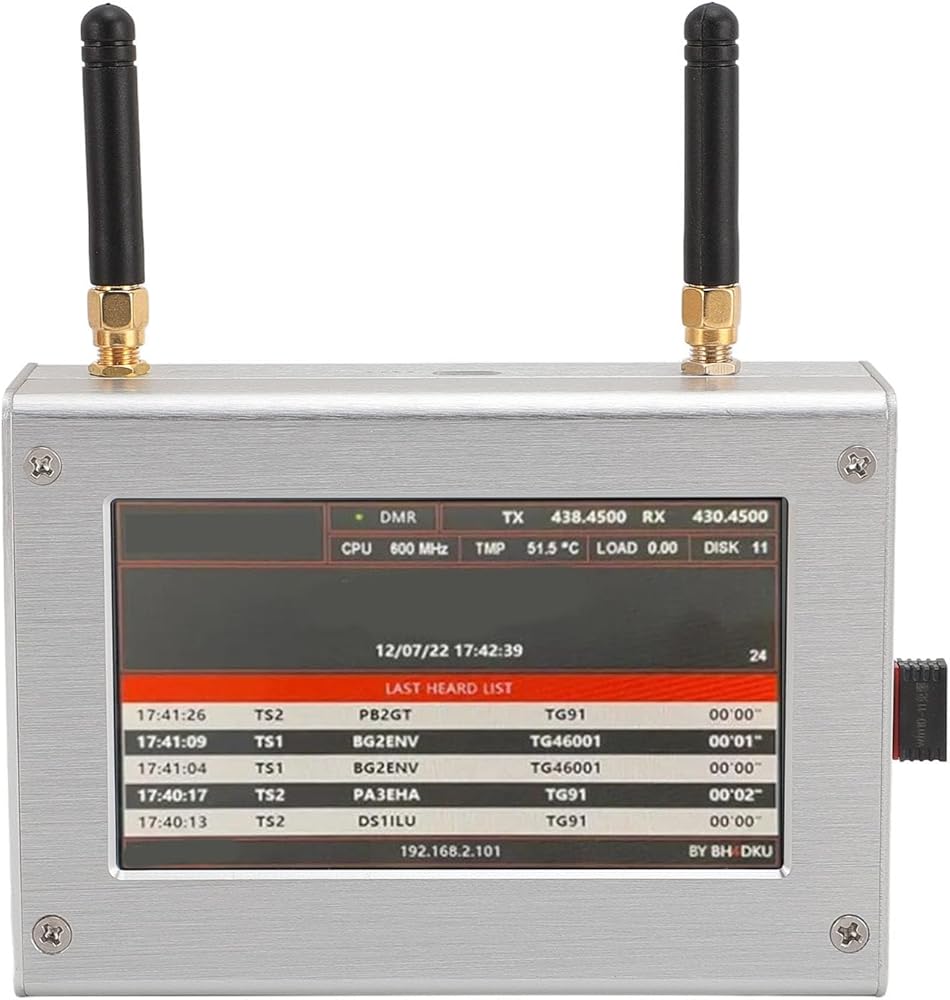

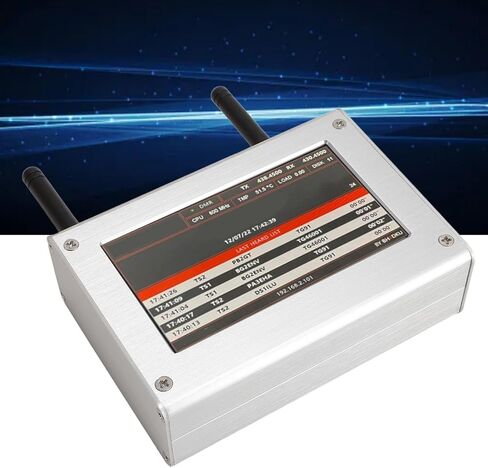

MMDVM Duplex Hotspot Board, 4.3inch Color Display, 3000mAh Battery, Multi Mode Digital Voice Modem with Ethernet Connection, for HAMs

KWD 101
Brand
EBTOOLS
Weight
495 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Duplex Hotspot Board: It is a MMDVM hotspot digital networking box, multi mode digital voice modem, help to register international ID and open a default group, show that the firmware has been updated, using imported temperature compensated crystals, DMR format, frequency bias, duplex double time slot.

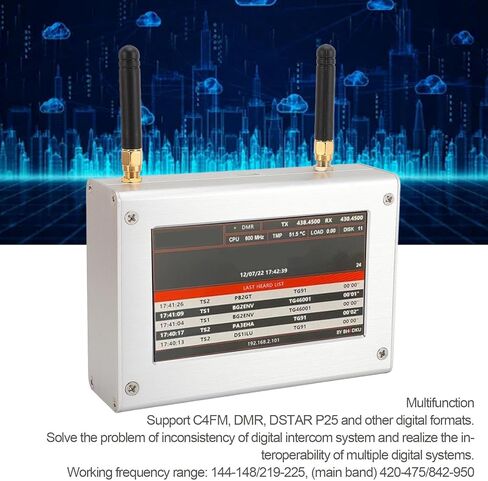

  • Multifunction: Support C4FM, DMR, DSTAR P25 and other digital formats, to solve the problem of inconsistent digital intercom system, to achieve multi digital system interoperability, the working frequency range: 144‑148/219‑225, (the main band) 420‑475/842‑950, with a cell phone hotspot or Cordless Fidelity network networking connection, to meet you and the world's HAMs Connectivity.

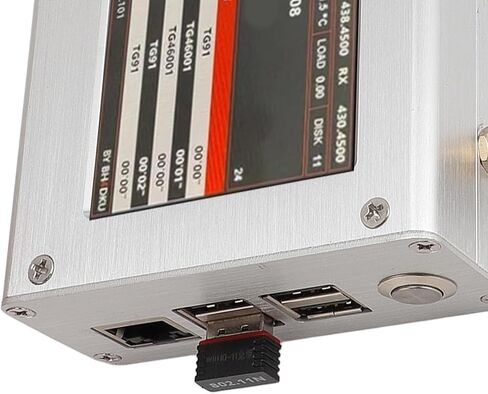

  • Ethernet Connectivity: The unit comes with an Ethernet connectivity device that plugs into one of the micro USB ports. After plugging the device into an Ethernet switch, it will instantly and easily connect to your home network. For a wired connection, log on to the unit using the IP address assigned by your network router.
  • Excellent Heat Dissipation: MMDVM duplex dual slot digital hotspot board optimizes the alignment, faster motherboard frequency, 4.3inch display with component layout, low heat generation and fast heat dissipation for long term startup.
  • Easy Charging: Mobile charger or USB cable connected to your computer or laptop with a large 3000mAh battery. If you connect the hotspot to your cell phone network, the hotspot can also be used on the move in your vehicle (without USB cable).

Description

Spec:
Item Type: MMDVM Duplex Hotspot Board
Product Material: Aluminum Alloy
Color: Silver
Battery: 3000mAh Lithium Ion Battery (internal)

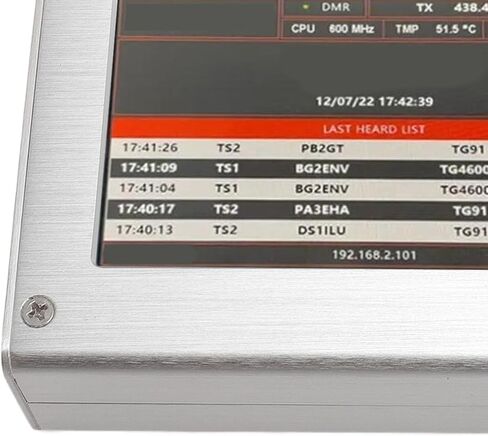

Display: 4.3inch Color Display
Support Digital Format: C4FM, DMR, DSTAR P25 and Other Digital Formats
Operating Frequency Range: 144‑148/219‑225, (Main Band) 420‑475/842‑950

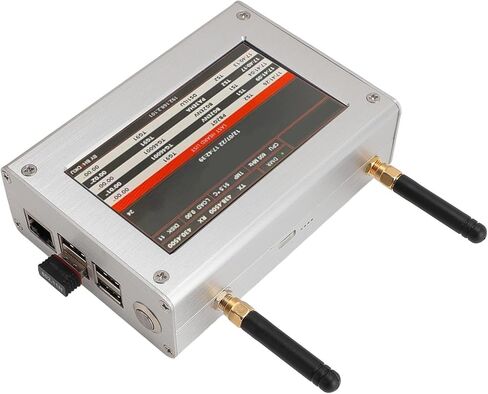

Expansion Interface: USB x 4, RJ45 x 1
Built in Storage: Built in 8G Memory

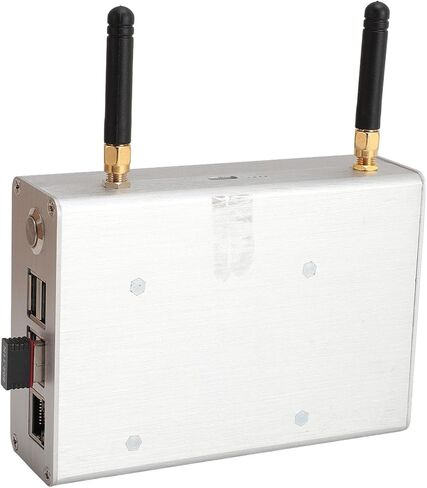

Antennas: Two External Antennas

How to Use:
Cordless Fidelity settings when MMDVM first starts up:
I. Connect to an automatic AP hotspot:
1. The hotspot is powered up.
2. Wait for for Pi‑Star to start. It usually takes about a minute (longer if using for Pi0W). If your hotspot has an on‑screen display, you can watch for Pi‑Star start up until you are prompted to log in.
3. Wait 2 minutes for the Auto AP feature to activate. 4.
4. View the hotspot named Pi‑Star‑Setup on your computer or cell phone and connect. Cordless Fidelity Hotspot: Pi‑Star‑Setup; Password: 12345678
II. Login for Pi‑Star page.
1. Connect successfully.
2. When you start for Pi‑Star for the first time, you will see a page showing No Mode Defined.... Click Configure. Click Configure or wait 10 seconds to be redirected to the configuration page.

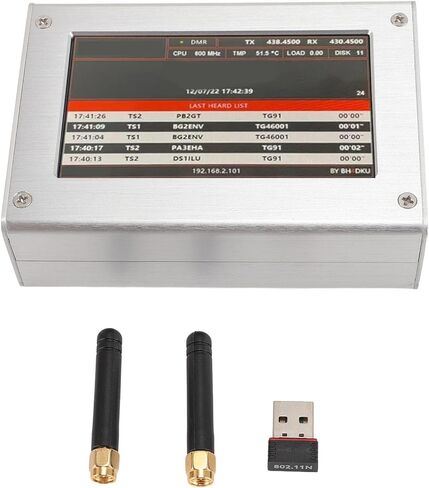

Package List:
1 x Hotspot Board
2 x Antennas
