Hubs
introduce
The POE switch is designed with four 10M/100M copper wire RJ45 POE ports and two Uplink ports, with a built-in 48W power supply. Full metal shell, conducive to heat dissipation and protection.
main feature
6 ports, and play, high speed and stability
4 ports 10M/100M POE+1 port uplink
Full metal material, better heat dissipation performance
52V 48W, no screen burn

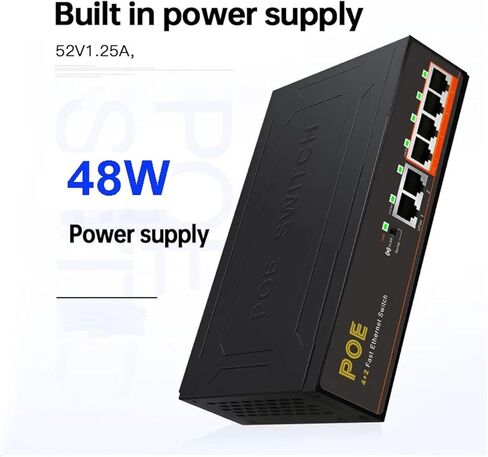

48W built-in power supply, stable power supply
Transmission distance up to 250m
Series power connection
It has VLAN isolation function to ensure good network bandwidth, network transmission performance and security.
Working temperature: -30℃~75℃
Ambient humidity: 0~95 (no condensation)
Connection Diagram

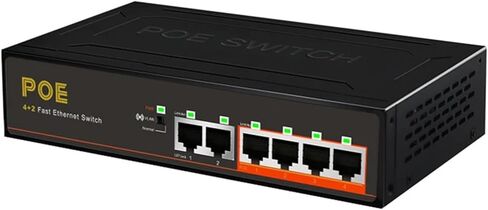

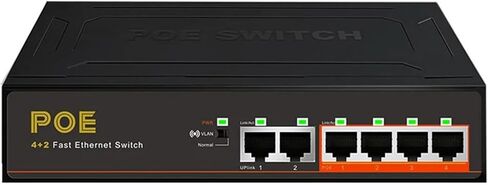

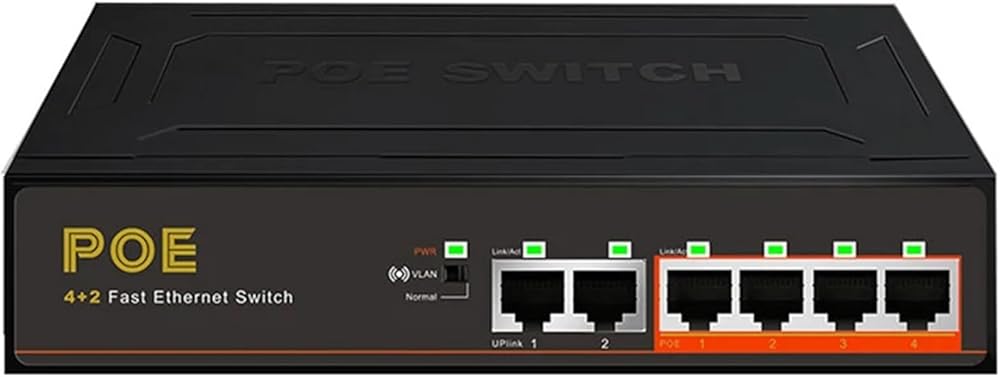

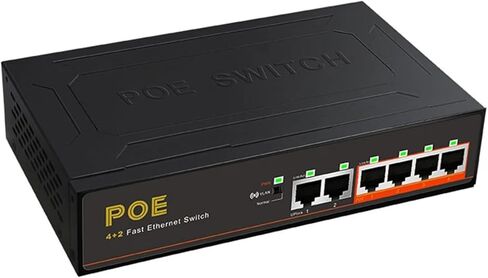

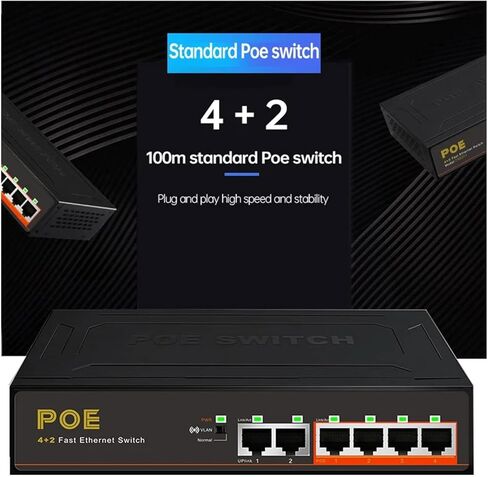

Product display
Specification
Product name: 100M 4 ports + 2 uplink ports POE power supply switch
Product description: Fast Ethernet switch with 4-port POE function
Product size: 220X160X40mm (length, width and height)
Transmission distance: 250 meters
Port description: 4*10M/100M copper wire RJ45 ports + 2* uplink ports
Supported protocols: IEEE 802.3/IEEE 802.3u/IEEE 802.3x
POE port: 48W built-in POE switch power supply
Working environment: Temperature: -30℃ 75℃, Humidity: 0~95% (no condensation)
Power supply: standard 52V power supply
packing list
POE switch*1
*1
English manual*1
