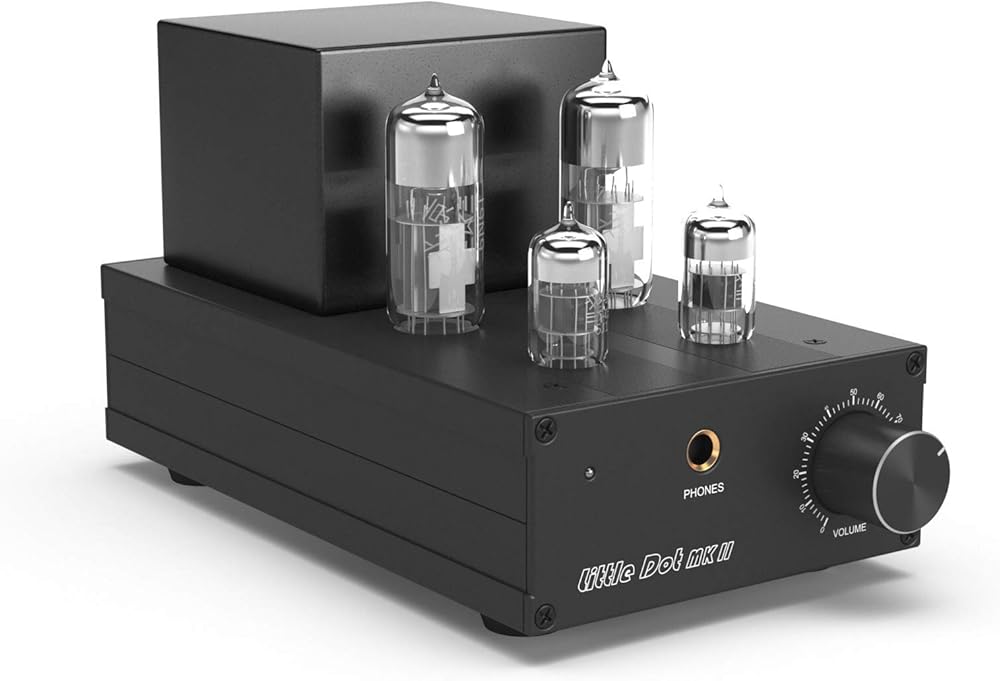

AIMPIRE Little Dot MK2 MKII 6J1 X 2 6N6 X 2 Headphone Amp Amplifier Pre-Amp Tube

KWD 62
KWD 72
Brand
Little Dot
Category
Home Theater
Weight
2 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Little Dot MKII greatly increases sound quality, dynamic range, output impedance, and harmonic distortion
  • Little Dot MKII also gains the driver tube-rolling options from the rest of the MK-series with the ability to roll 6JI, WE403A/B, GE5654, M8100, CV4010, EF95, etc at its factory jumper setting, and with jumper pins shorted, EF92, CV131, and all equivalents and drop-in replacements

Description

SEPP (Single ended Push Pull) OTL in Class A Input: Gold Plated Unbalanced (RCA) Jacks Output: 1/4\" Gold Plated Stereo Headphone out Driver Tubes: 6JI Power Tubes: 6N6 Frequency Response: 20HZ ~ 50KHz (minus 1 dB) THD plus N: 0.1 percent (50mW into 300 ohms) Suitable Headphone Impedance: 32 ~600 ohms Input Impedance: 50K ohms Pre Amplifier Output Impedance: 600 ohms Pre Amplifier Gain: 3~10x (also controlled via gain switches) Pre Amplifier Voltage: 10V RMS Pre Amplification circuit includes both driver and power tubes Power Output: 300mW into 300 ohms 200mW into 120 ohms 100mW into 32 ohms Power Consumption: 28W (228V x 0.124A) Metric: 210mm (length) by 110mm (width) by 130mm (height) English: 8.26 inches (length) by 4.33 inches (width) by 4.18 inches (height) Weight: 2.5 kg or 5.5 lbs.v
