Hubs
feature:

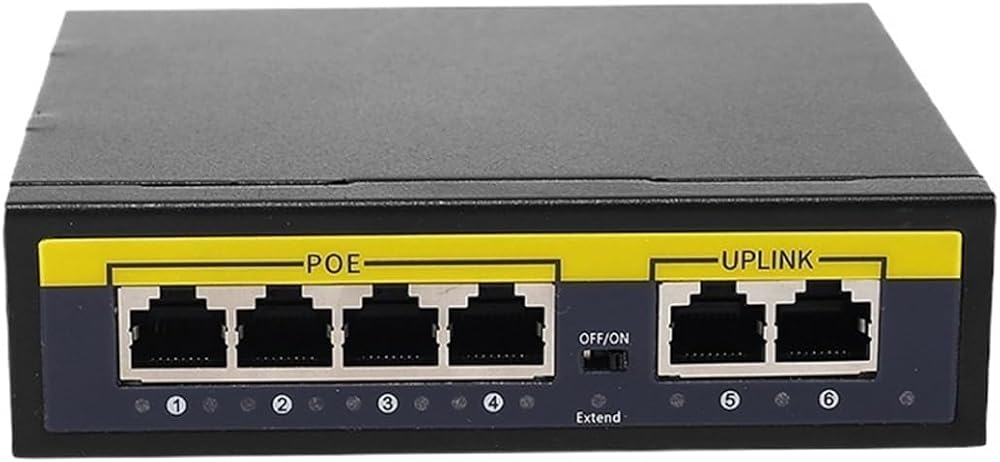

Product name: MINI 4-port 10/100M active POE switch (4+2)
Data pins: 1/2+, 3/6-
Power supply type: built-in, 1/2+, 3/6-
PoE output power: 15.4W/30W
Connector: 4*10/100mbps POE port, 2*10/100mbps uplink port
Network media Cat5 (UTP) or more
Network standards: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control IEEE 802.3af Power over Ethernet
PoE power: 15.4W per port (IEEE802.3af).
Wiring: Data and power provided via pairs 12 and 36
Half-duplex backpressure and IEEE 8023x full-duplex flow control
Buffer memory: 48Kb embedded memory per unit
Backplane bandwidth: 1.2G
Network delay: 100Mbps to 100Mbps transmission, 64-byte frame in store-and-forward mode is less than 20us
strength
Input: 52V DC input
PoE power consumption: 15.4W per port (IEEE802.af)
LED Indicator System: Power, PoE Max Power
Per port: link, activity, speed, PoE activity, PoE errors
Environmental specifications
Working temperature-10-55(32-104)
Storage temperature-40-70(14-158)
Operating humidity 90% maximum relative humidity, no condensation
Storage humidity 95% maximum relative humidity, non-condensing
Package Included:
1 PoE switch
1 power cord
1 user manual
8-port POE switch
Note: The appearance color of this device is as shown in the picture below.
feature:
Product name: 10-port 10/100M/POE switch (8+2)
PoE output power: 15.4W/30W
Connector: 8*10/100mbps POE port
2*10/100/100mbps uplink ports
Network media: Cat5 (UTP) or above
Network standards:
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control IEEE 802.3af Power over Ethernet
PoE power: 15.4W per port (IEEE802.3af).
Backplane bandwidth: 2G
Power supply: Input 52V DC input
Working temperature: -10-55(32-104)
Storage temperature: -40-70(14-158)

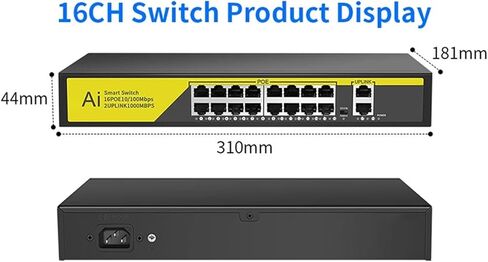

16-port POE switch
