Hubs
Functional specifications

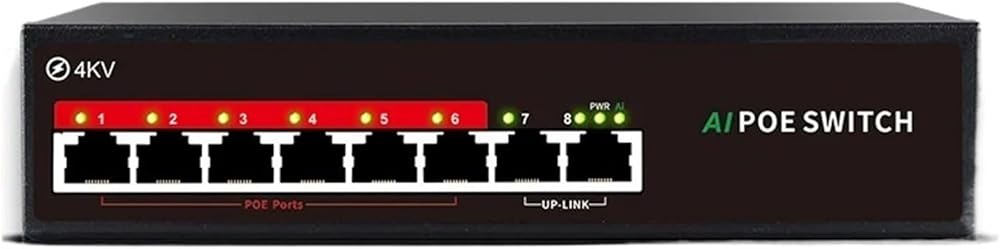

All ports 14 Fast Ethernet ports with a transfer rate of 10100Mbps 12 36 and 2 uplink Fast Ethernet ports with a transfer rate of 10100Mbps.
Safety: Independent ports and current protection features
Cable type: 3 types and above 3 types of soft twisted pairs, suitable for 10BaseT (not supported
power supply); 5 types and more than 5 types of soft twisted pairs are used for 100Base-TX\100Base-TX.
Software specifications
Switch capacity: 1.2G
Exchange method: store and forward
Data signaling rate: 1-4 ports 10/100Mbps and 2 uplink ports 10/100Mbps (half-duplex mode)
Comply with standards: IEEE802.3AF/AT
address space: 8K
working environment
Mechanical dimensions: 133mm (length) × 84mm (width) × 27mm (height)
input power:
Maximum power per port 30W
Ambient temperature: working temperature 0 to 40℃/storage temperature 40 to 70℃
