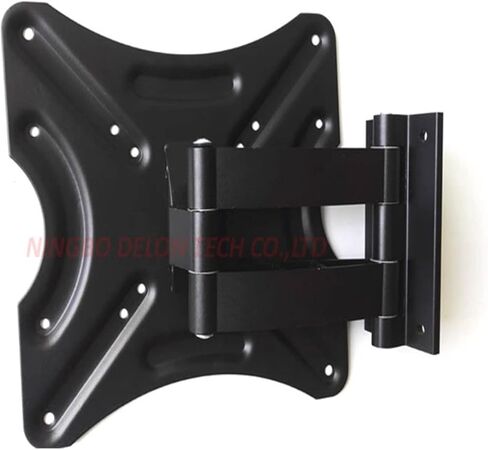

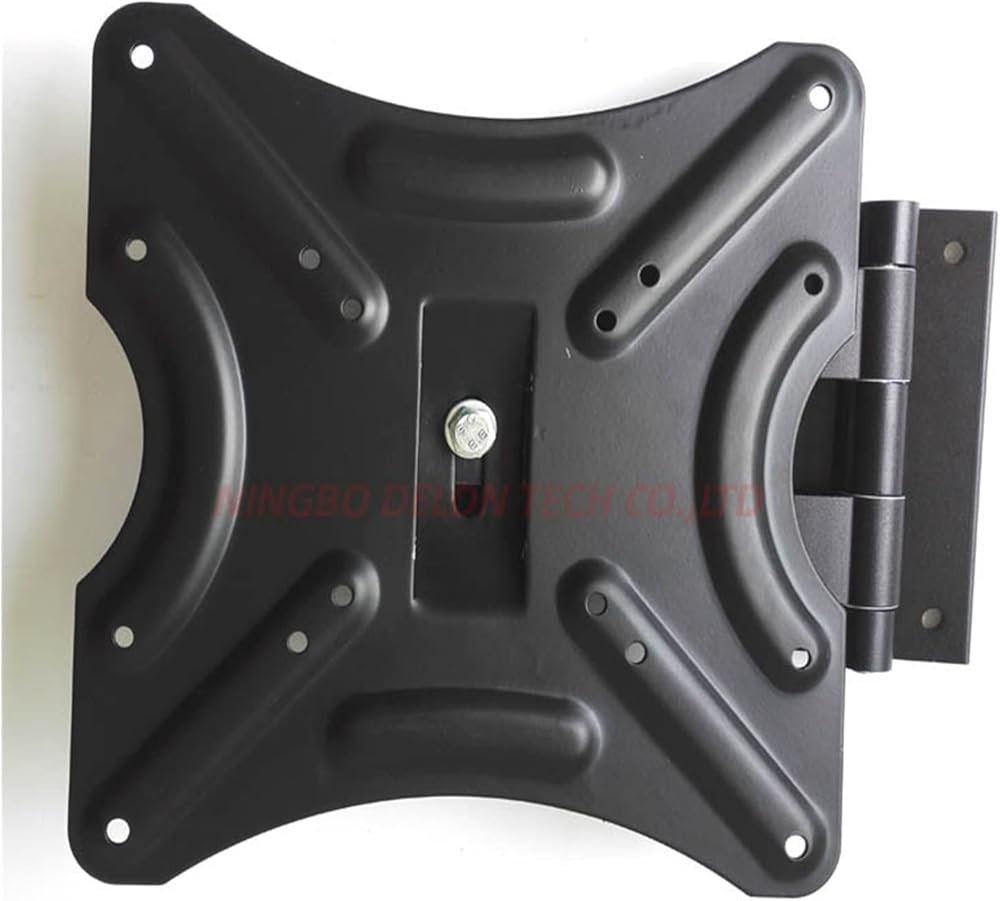

Mounting Brackets
Suitable for 10"- 37" Televisions

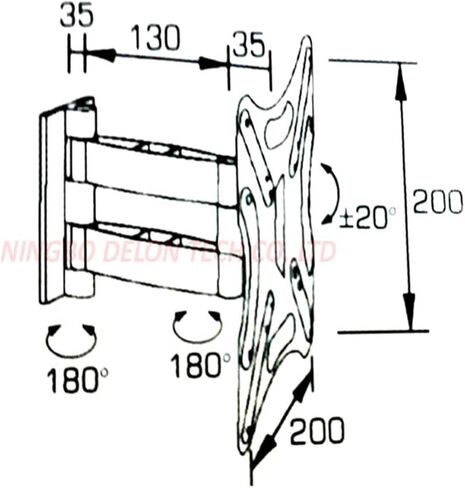

+20° to -20° Tilt angles
180 degrees Swivel
Distance from tv to wall: from 50mm to 210mm
Max load: 30kg/66lbs
Color: Black
Fit tv installation hole distance50X50 ,75X75MM 100X100MM,200x100mm,200x200mm
wall plate and arms aremade of die-casting aluminum
Plz kindly note:in the box description, it's written to fit 10inch to 24inch,but it fit most30 inch TV,as long as the tv weight is witihin 20KG and themax hole distance is 50x50mm,75x75mm,100x100mm
A: 75mm/100mm
B:75mm/100mm
