Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

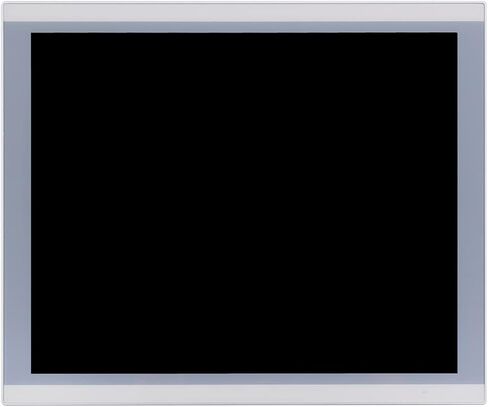

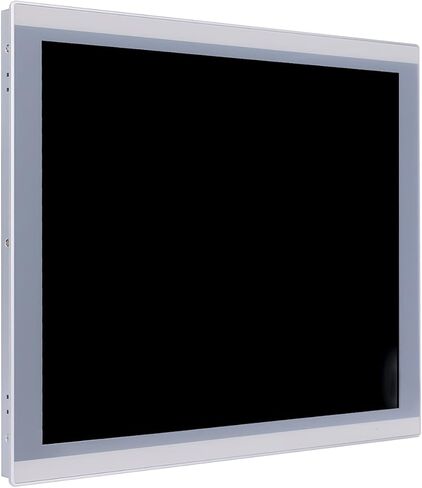

Model Number: HUNSN PW27
Panel: 17" TFT LED panel, front panel protection IP65
CPU: Intel I5 Gen. 3th CPU, ship one of them
Memory: 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 4 x USB2.0, LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 386.3 x 321.3 x 54mm
Weight: 4.6kgs
Opening Hole: 380 x 315mm
Resolution: 1280 x 1024
Perspective: 80(L), 80(R), 60(T), 60(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW27 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
