RCC-1503 9 psi crossover w/o قوس السعة العالية مع تعديل التحيز

KWD 75
– 1 +

وصف

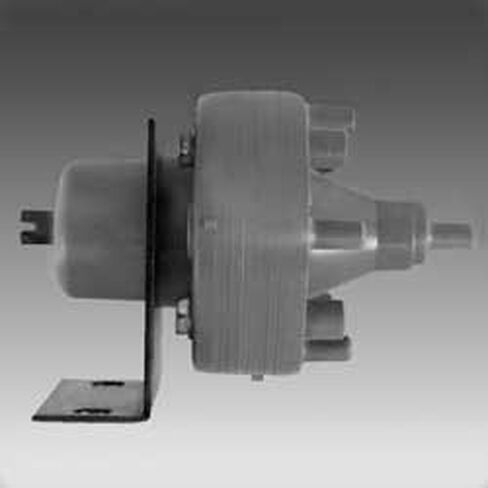

Adjustable Reversing Relay, 9# calibration, no bracket

Description
The KMC RCC-1501-1504 adjustable reversing relays are designed to reverse a proportional signal from a controlling device. These relays are intended for any application where the output signal to the controlled device must be the reverse of the source signal.

The RCCs are factory adjusted so the input and output cross-over at a certain pressure. The RCC-1501/02 is 8 psig (55 kPa) in and out while the RCC-1503/4 is 9 psig (62 kPa) in and out. A bias adjustment of +/- 15 psig (103 kPa) is provided to retard, or advance, the output. The RCCs small size and light weight make them suitable for in-line mounting.
