1. Capable of filling the interval and effectively transferring the heat of the heat-generating component to the heat sink.
2. Thermally conductive silicone sheet has excellent thermal conductivity to meet the thermal conduction and insulation requirements of most electronic products. It is specially designed for the use of heat transfer through the interval.
3. At the same time, the product is sticky and easy to use.
4. The mat is placed between the heater and the heat dissipating component to achieve heat transfer and insulation.
5. For thermal conductivity, insulation, viscosity, elasticity, low heat , filling.
6. Suitable for graphics card memory creastline, home appliances, high-speed hard drive, micro heat pipe , high-power power supply, LED industry.

Spec:

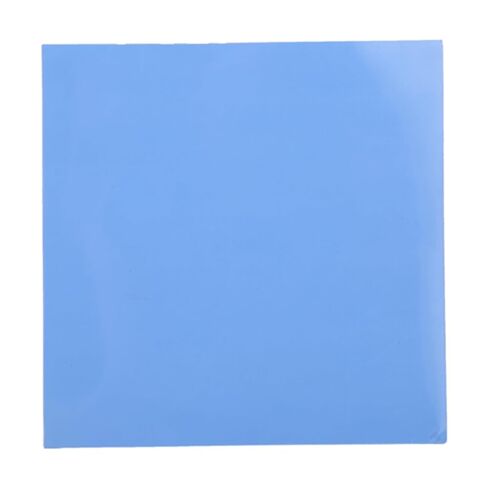

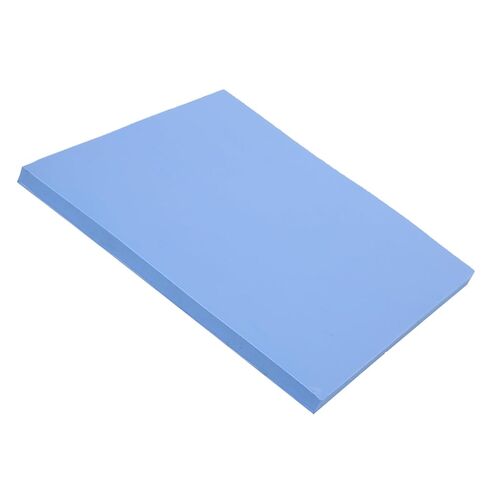

Item Type:Thermal Conductive Pad
Size:100 x 100 x 5mm / 3.94 x 3.94 x 0.2in
Color:Blue
Thickness Tolerance:0.2+-0.01
Continuous Using Temperature:-50~200℃
Conductivity Coefficient:1.5W/m-k
mass resistivity:10^12
Breakdown voltage:4.5KV
Hardness:30±5 Shore A
proportion:2.05
tensile strength:15 kg/cm㎡
Extension:48%
Mystical/Fantasy Retardant Grade:90V-0-1
Users Manual:
1.Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.
2.Tear protective film
The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.
3.Fixed heat sink
Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.

PackageList:
1 x Thermal Conductivity Pad
