1. Good thermal conductivity, insulation, viscosity, elasticity, low heat , filling.
2. Applicable to graphics card North-South bridge, home appliances, high-speed hard drive, micro heat pipe , high-power power supply, LED industry.
3. Thermally conductive silicone sheet has excellent thermal conductivity and meets the thermal insulation requirements of most electronic products.
4. The pad is specially designed for the use of heat transfer through the interval, which can fill the interval and effectively transfer the heat of the heat-generating component to the heat sink.
5. The pad has viscosity, simple and convenient application, stable heat conduction, insulation and softness and flexibility.
6. The pad is placed between the heater and the heat dissipating component to achieve heat transfer and insulation.

Spec:

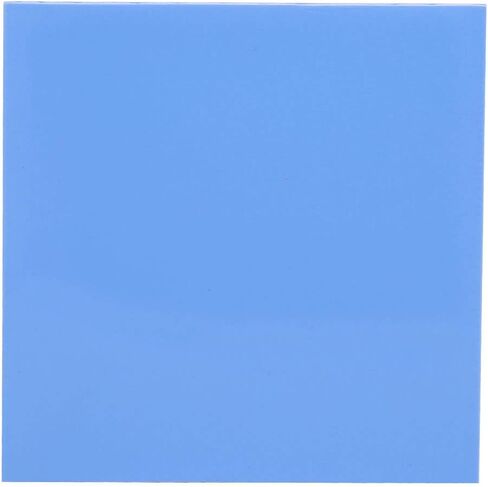

Item Type:Thermal Conductive Pad
Size:100 x 100 x 0.5mm / 3.94 x 3.94 x 0.02in
Color:Blue
Thickness Tolerance:0.2+-0.01
Continuous Using Temperature:-50~200℃
Conductivity Coefficient:1.5W/m-k
mass resistivity:10^12
Breakdown voltage:4.5KV
Hardness:30±5 Shore A
proportion:2.05
tensile strength:15 kg/cm㎡
Extension:48%
Mystical/Fantasy Retardant Grade:90V-0-1

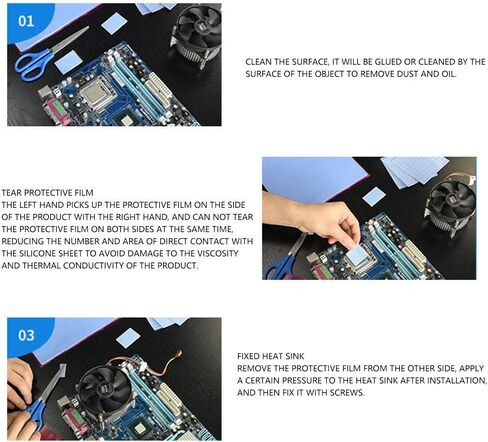

Users Manual:
1.Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.
2.Tear protective film
The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.
3.Fixed heat sink
Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.

Package
