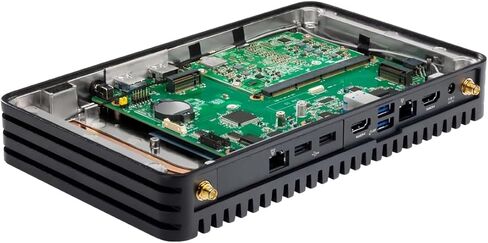

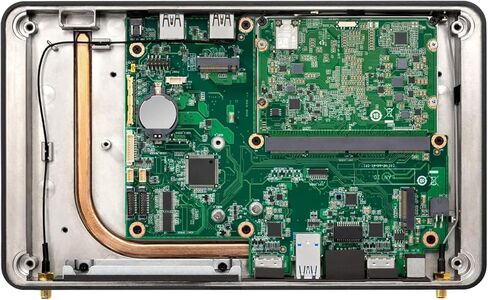

Fanless, dust-resistant chassis with I/O board installed; preliminary IP50 rating
Design implementation: Dual LAN (CMCR1ABB)
Dual M.2 22x80 key M slots for PCIe x4 NVMe and SATA SSDs
Two HDMI 2.0a ports with built-in CEC
Support for dual 4k@60Hz via HDMI 2.0a
Intel Optane Memory H10 with Solid State Storage ready
Dual GbE LAN: Intel i219-LM and Intel i211-AT 10/100/1000 Mbps RJ45 Ethernet
1x front and 2x backpanel USB 3.2 Gen 2 type A ports, 1x internal USB 3.0 header
1x front and 2x backpanel USB 2.0 ports
2x RS232 serial port headers
Up to 7.1 multichannel (or dual 8-channel) digital audio via HDMI
Front panel header (with Vcc5/1A, 5Vsby2A, 3.3Vsby/1A)
Qualified for 24x7 operation
Delayed AC start; DC overvoltage protection
Display emulation (headless display, virtual display, persistent displays)
12 – 24VDC rear jack, internal 2x2 power connector
Metal chassis, Kensington lock with base security
0~40degC external ambient operating temperature
19VDC 90W power supply adapter with geo-specific AC cords (IEC C5 connector)
VESA mounting plate included, with mechanical support for power supply adapter
External dipole antennas
Chassis dimensions: 254 x 152.4 x 36 mm (plus additional 4.8mm of rubber feet height)
Microsoft Windows* 10, Windows 10 IOT Enterprise, compatible with various Linux distros
Individual brown-box packaging
Three Year Product Life Cycle
Three Year Warranty
