[sturdy Material] - Made from flexible silicone for long-lasting heat conduction and insulation properties
[Versatile Use] - Ideal for graphics cards, home appliances, hard drives, and more
[Excellent Insulation] - Maintain proper thermal levels for electronic components
[Good Thermal Conductivity] - Ensure efficient heat transfer for electronics
[Easy to Apply] - Sticky design for simple installation on heat-generating components

Spec:

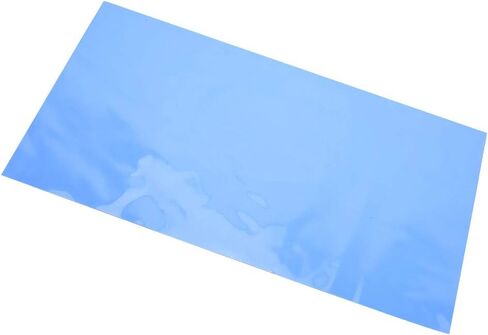

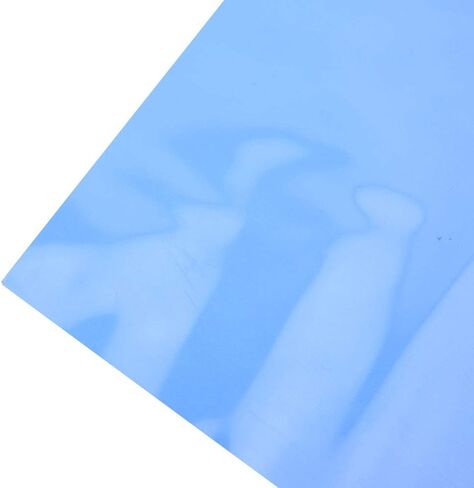

Item Type:Thermal Conductive Pad
Size:200 x 400 x 2mm / 7.87 x 15.75 x 0.08in
Color:Blue
Thickness Tolerance:0.2+-0.01
Continuous Using Temperature:-50~200℃
Conductivity Coefficient:1.5W/m-k
mass resistivity:10^12
Breakdown voltage:4.5KV
Hardness:30±5 Shore A
proportion:2.05
tensile strength:15 kg/cm㎡
Extension:48%
Retardant Grade:90V-0-1
Users Manual:
1.Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.
2.Tear protective film
The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.
3.Fixed heat sink
Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.

Package List:
1 x Thermal Conductivity Pad
