8G RAM 128G SSD 1TB HDD I5 1135G7

KWD 302.500

Brand
HUNSN
Category
Computer cases
Weight
4.6 kg
Colori5 1135G7
Size8G RAM 128G SSD 1TB HDD
1 +

Special Features

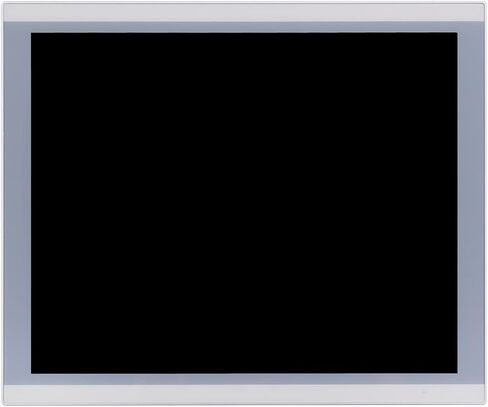

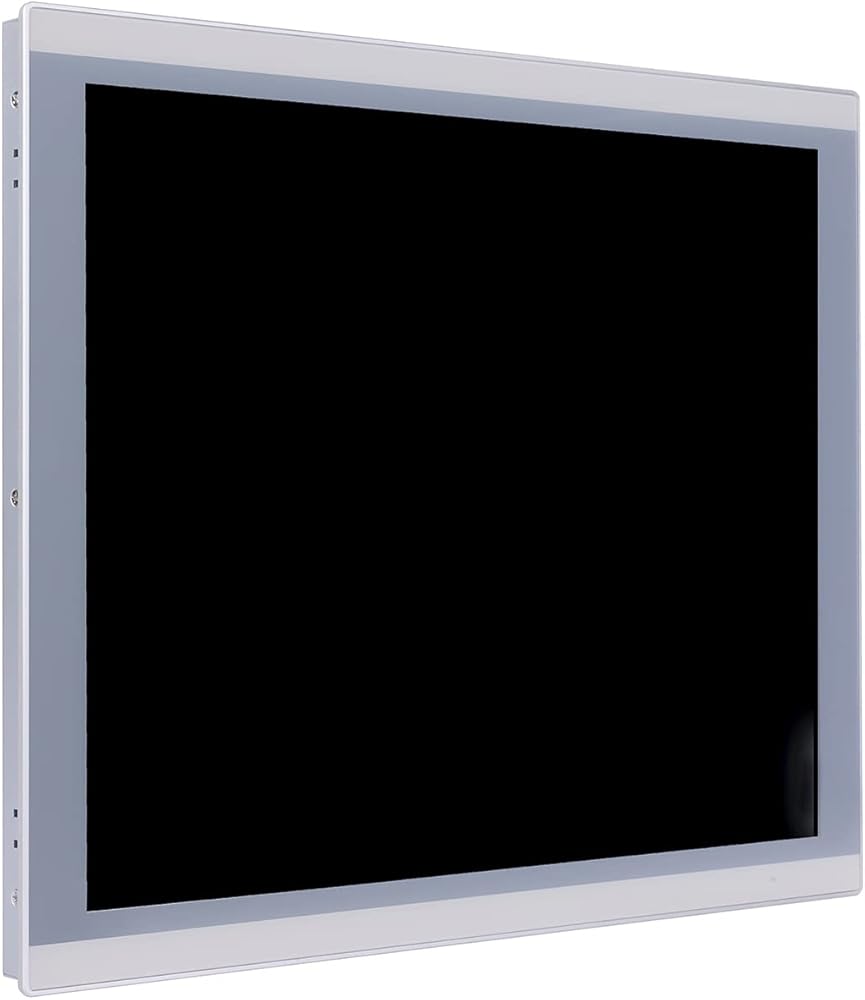

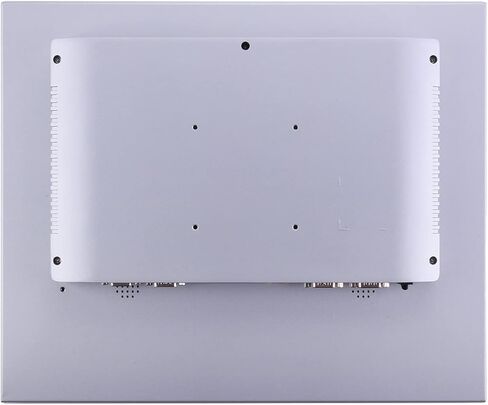

  • 17 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1280 x 1024 resolution, powered by intel gen 8th core i5 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
  • Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
  • Aluminum alloy fanless passive cooling design, silent solution that's ultra energy-efficient
  • HUNSN PW27 designed with 12v dc, hdmi, vga, 2 x usb3.0, 2 x usb2.0, 2 x lan, audio-in&out, 2 x com, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
  • Size at 386.3 x 321.3 x 54mm, 4.6kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance

Description

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW27
Panel: 17" TFT LED panel, front panel protection IP65
CPU: Intel I5 Gen. 8th CPU, ship one of them
Memory: 2 x SODIMM DDR4-2400, max. to 64GB RAM
Storage: 1 x mSATA SSD, 1 x M.2 2280 NVME PCIE X4/SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 386.3 x 321.3 x 54mm
Weight: 4.6kgs
Opening Hole: 380 x 315mm
Resolution: 1280 x 1024
Perspective: 80(L), 80(R), 60(T), 60(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW27 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
