PRODUCT DESCRIPTION

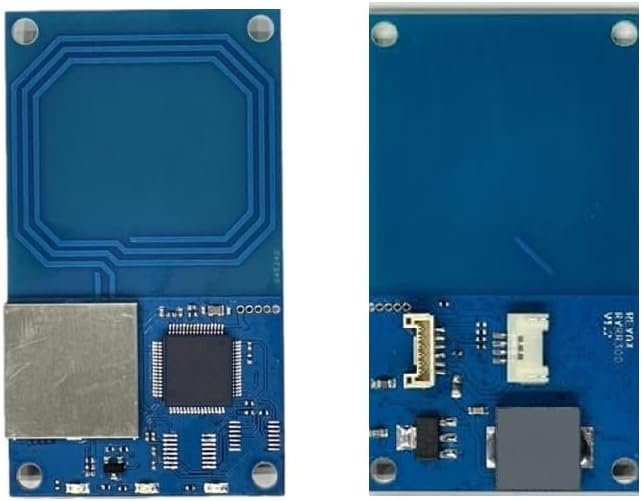

The RYRR30D can read and decrypt Near Field Communication (NFC) pass raw data from
Android® or iPhone® devices. The RYRR30D can also read general RFID cards and TAGs and supports
multiple protocols.

The RYRR30D supports +3.3V UART and USB2.0 interface. When using the +3.3V UART /
interface, you can use AT command to configure the ID and Key. If decrypt NFC pass is
successful, The NFC pass raw data will be output from the +3.3V UART interface.

When using the USB2.0 interface, you can edit the text file to configure the ID and Key. If decrypt
NFC pass is successful, The NFC pass raw data will be output from the keyborad interface.

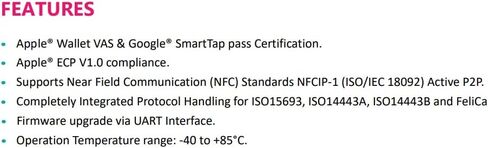

FEATURES
• Apple® Wallet VAS & Google® SmartTap pass Certification.
• Apple® ECP V1.0 compliance.
• Supports Near Field Communication (NFC) Standards NFCIP-1 (ISO/IEC 18092) Active P2P.
• Completely Integrated Protocol Handling for ISO15693, ISO14443A, ISO14443B and FeliCa
• Firmware upgrade via UART Interface.
• Operation Temperature range: -40 to +85°C.
