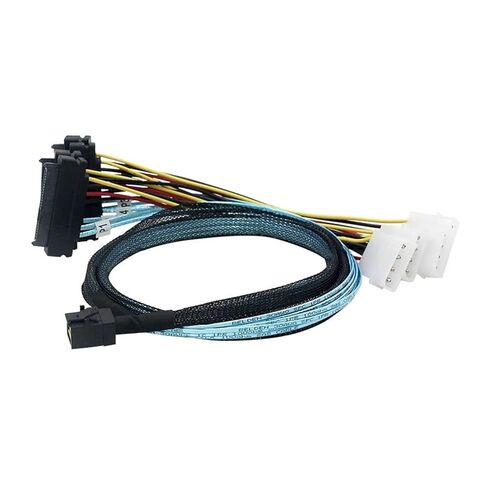

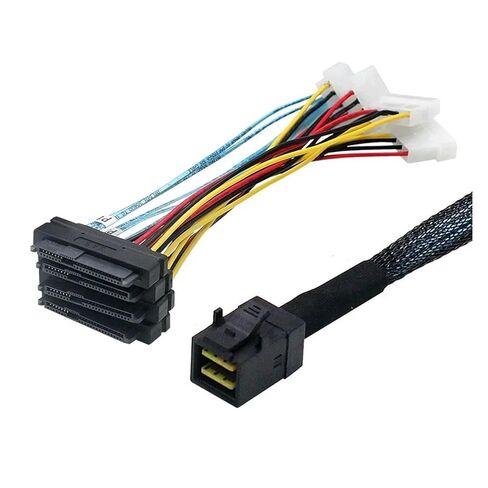

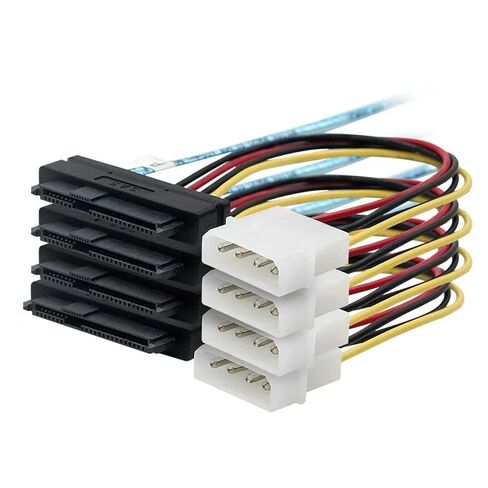

1. S-AS data+power connects the S-AS controller to four independent S-AS HD drives; The front fanout cable has 1 latch SFF 8643 S-AS host connector and 4 discrete S-AS target hard drive SFF-8482 connectors
2. The ContROLLER TO S-AS cable can provide internal computer connectivity between a serially connected SCSIController card host and a directly connected storage hard drive; 36 pin SFF-8643 host connector and 4 S-AS 29 pin SFF-8482 data and power target drive connectors
When expanding storage requirements for Storage Area Network (SAN) or Direct Attached Storage (DAS) applications, a forward fanout cable with an internal mS-AS connector is required. Durable molded connectors provide a secure connection; The slender ribbon cable in the woven mesh sheath reduces the impact of airflow on the computer case to a lower level; A large 4-pin power cord allows for easy viewing of connected power sources
1. Host/controller connection: 1x 36 pin S-AS SFF-8643- male pl-ug with latch
2. Target/ S-AS drive connection: 4 29 pin S-AS SFF-8482 female sockets
3. Power connection: 4 large 4PIN power supplies - male Pl>ug*s
4. Length: 0.5M, 1M
5. S-AS cable: SAS3.0 30AWG tinned copper impedance 100 ohms
Model Number : SFF-8643 To SFF-8482
TY>pe : Adapter Cable
Use : COMPUTER
USB TY>pe : Standard
Material : P-VC, Nylon, Plastic, Metal
Connector : S-AS
Jacket : P-VC, Nylon
