Cables

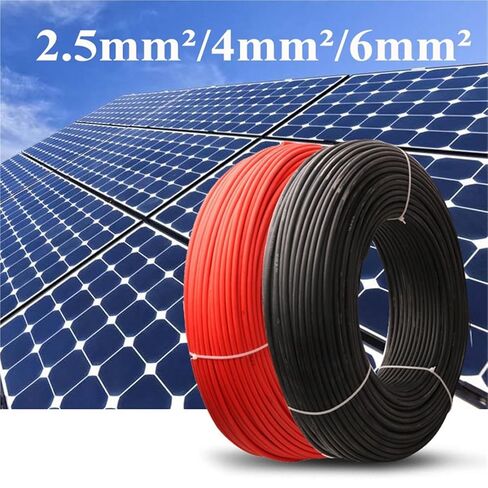

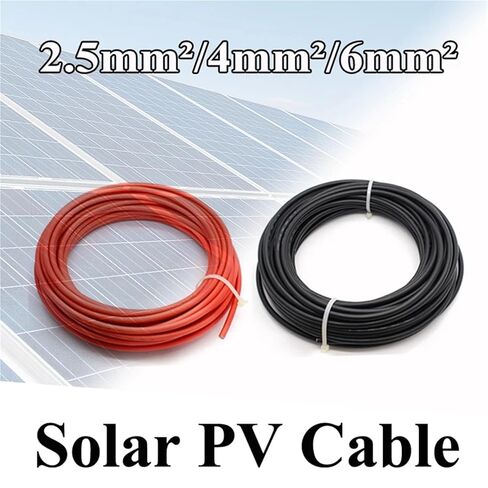

1 pcs solar cable red or black 10mm/6mm/4mm/2.5mm/1.5mm(8AWG/10AWG/12AWG/14AWG/16AWG)
Cable size range : 10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG)
1 Meters (3.28ft) /2Meters(6.56ft) /3Meters(9.84ft) /5Meters(16.4ft)/ 10Meters(32.8ft)
Solar Cable Structure :
Package included :1PCSCable
INTRODUCTION
specifications:2.5/4/6/10mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black
Feature:Double insulation cover,
Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 -90 )
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinction
TECHNICAL PARAMETERS
Model
Safe current(A)
Core diameter (mm)
Conductor cross section(mm²)
16 AWG
19
30*0.25
1.5
14 AWG
28
35*0.3
2.5
12 AWG
36
56*0.3
4
10 AWG
48
84*0.3
6
8 AWG
65
142*0.3
10
6 AWG
95
227*0.3
16
4 AWG
120
190*0.4
25
==========
Model Number : PV1-F
Application : Underground
is_customized : Yes
Type : Insulated
Conductor Type : Solid
Conductor Material : Copper
Insulation Material : PVC
Origin : Mainland
Model : 6/4/2.5 mm2 10/12/14 AWG
