Radiator Fan

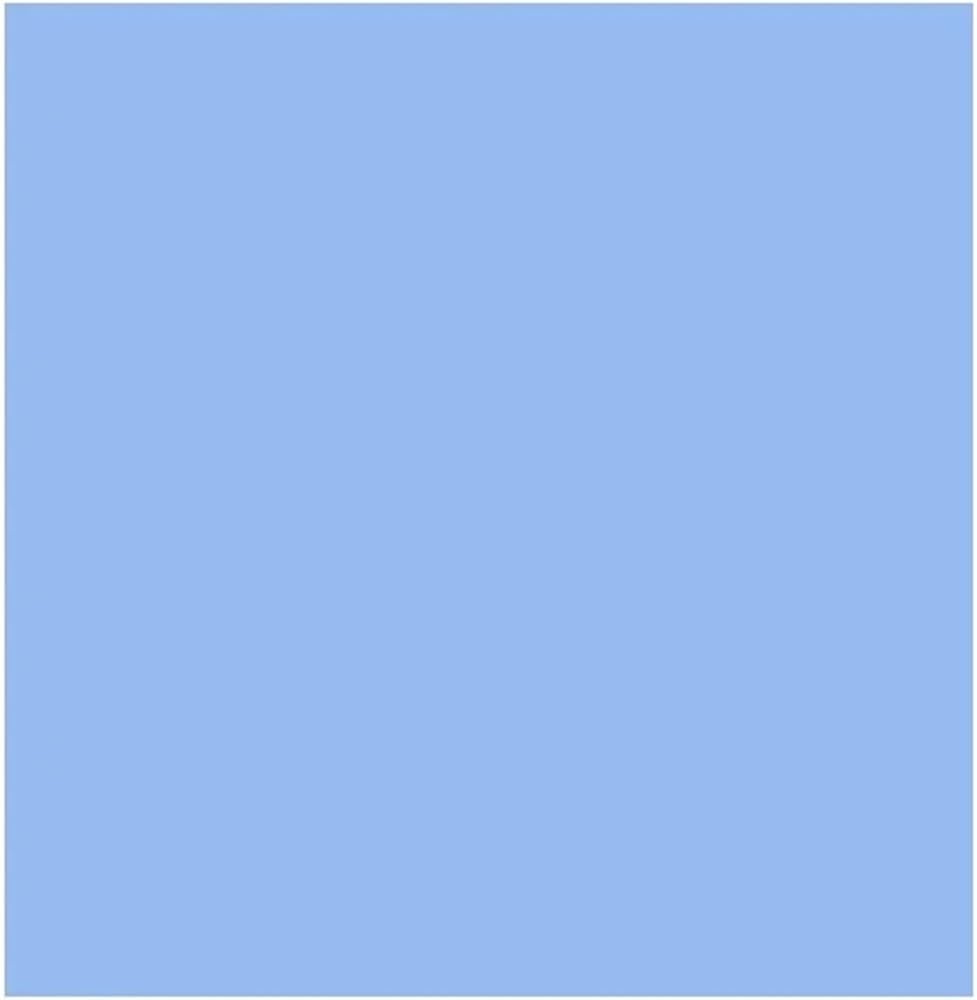

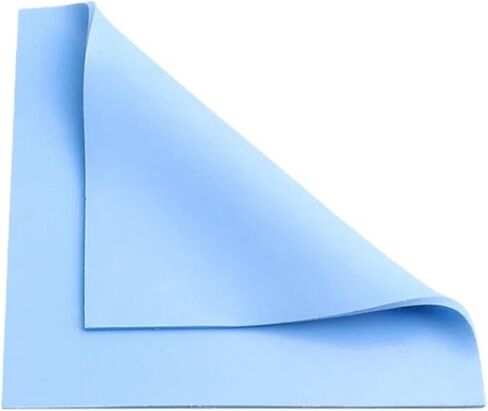

Thermal pad supports customization and, color: blue
Size: 100mm*100mm*0.3/0.5/0.75/1.0/1.25/1.51.75/2.0/2.25/2.5/2.75/3.0/3.5/4.0 mm
Other thickness: Customized (please contact us to customize according to your requirements)
Thermal conductivity: 6.0W/mk
Temperature: -40C~220C
Withstand voltage: greater than 7KV
Material: Hardness (Shore C): 30±5 Features:
1: Soft and naturally sticky
2: Good thermal conductivity and excellent ductility
3: Easy to cut, easy to paste
4: Non-conductive, non-corrosive, non-curing, and non-toxic.

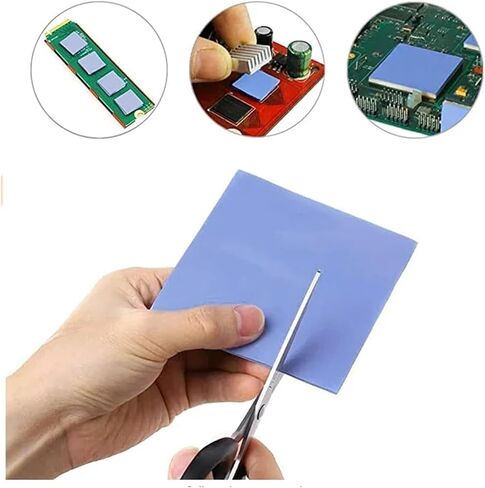

5: Can be used for CPU, GPU, graphics card, memory, mining machine, SSD solid state drive, laptop computer, gaming equipment, LED, server, appliances, radiator, capacitor, resistor and other heating components.
Package includes: 1 piece 100mm*100mm thermal pad (with packaging)
Note: Due to the influence of shooting light and different monitors, the color of the item in the picture may be slightly different from the actual item. The measurement allowable error is +/- 1-3cm.
(Customization: size/thickness/thermal conductivity/color/packaging)
Instructions:
Install the thermal pad:
The installation of thermal pads is much simpler than thermal paste because they can be easily attached to various places where heat dissipation is required, so there is no difficulty even with hands.
Remove the old thermal pad:
Every time you remove or install the radiator, you need to remove the aged thermal pad. After thorough cleaning, use the thermal pad again. Otherwise, the heat dissipation effect will be affected.
Thermal pad size and thickness description:

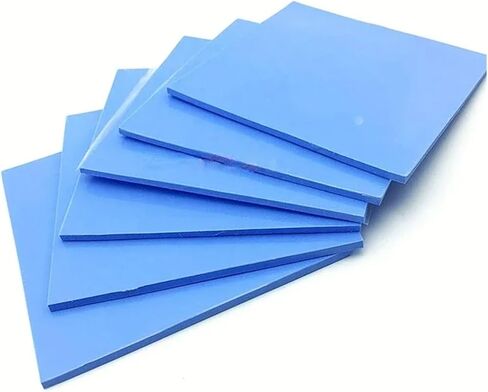

The thermal conductivity is the same for each thickness. Thermally conductive pads are available in a variety of thicknesses and sizes. Users can also cut them into the required size as needed.
FAQ:
How to choose the size you need.
1: Calculate the size of each location that needs cooling.
2: C
