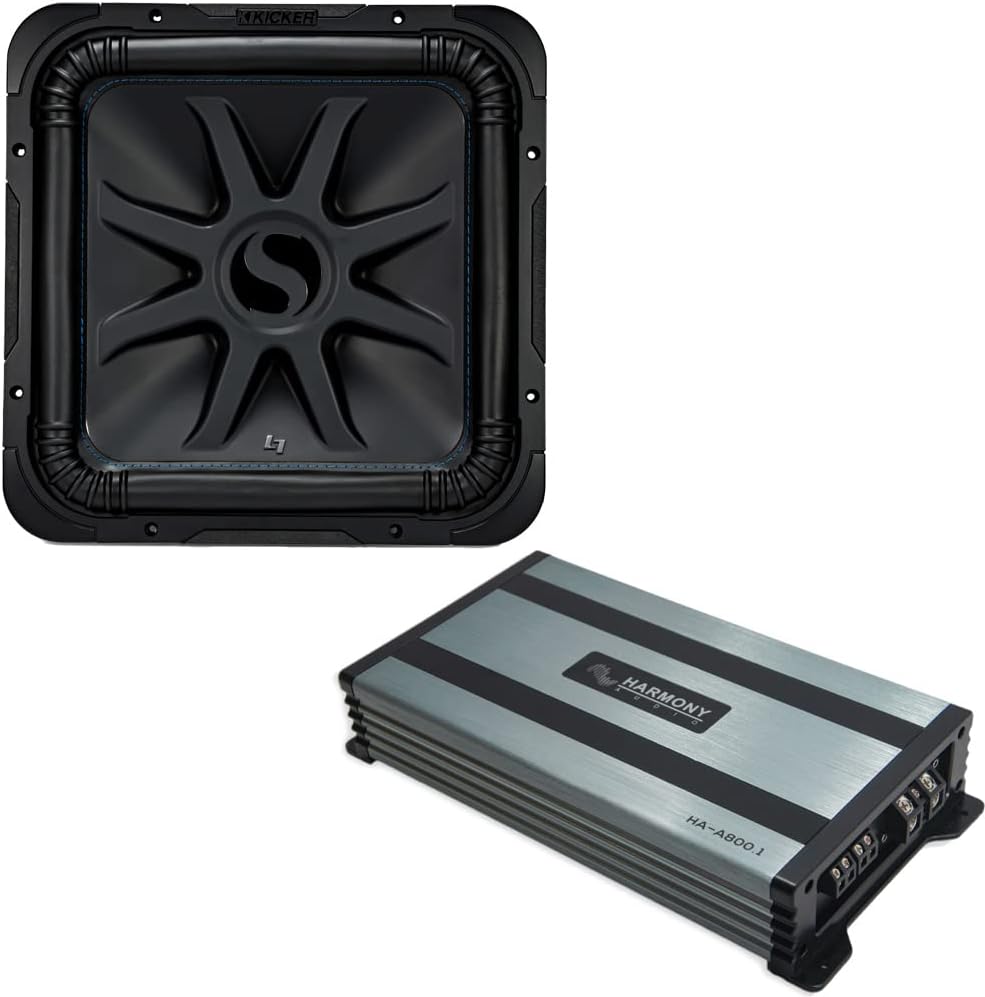

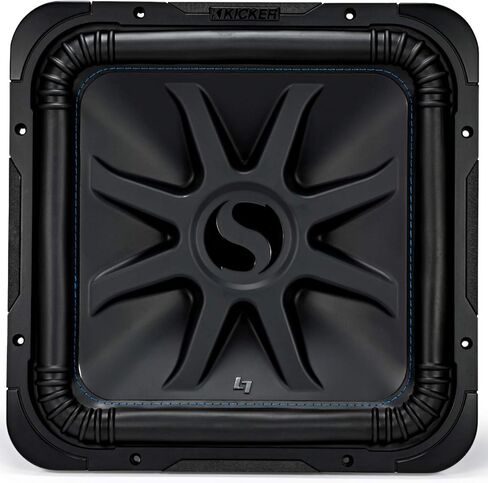

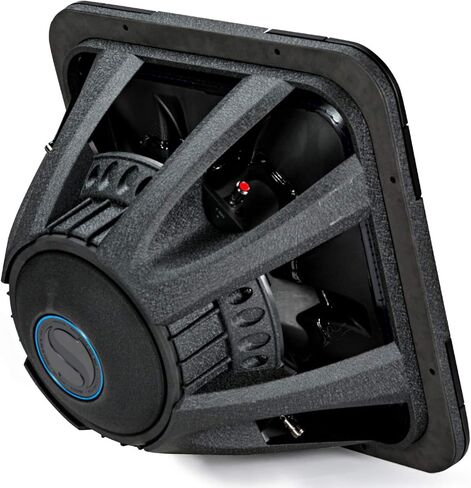

Kicker KIC17-44L7S154 15" Subwoofer:
Injection-Molded Polypropylene Cone
Patented Corner Ribs Minimize Distortion
SoloKon 360-Degree Back Bracing
Ribbed Santoprene Surround With Blue Surround Stitching
UniPlate Black Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
Thick Tinsel Leads
Large Ceramic Magnet
Cast Aluminum Basket
Satin-Nickel Plated, Spring-Loaded Speaker Terminals
1000 Watts RMS/2000 Watts Peak
Impedance:Dual 4 Ohm
Sensitivity:89.4 dB
Frequency Response:18-100 Hz
Mounting Depth:8-11/16"
Mounting Cutout:13-3/4"
Sub Box Recommendations:
Minimum Sealed:1.5 Cubic Feet
Maximum Sealed:6.0 Cubic Feet
Minimum Vented:3.0 Cubic Feet
Maximum Sealed:6.0 Cubic Feet
Harmony Audio HA-A800.1 Alloy Series Mono - 1 Channel Class D Amplifier Specifications:
14.4V@1 Ohm:800 Watts RMSx1/1600 Watts PEAKx1
14.4V@2 Ohm:600 Watts RMSx1/1200 Watts PEAKx1
Frequency Response:10Hz-180Hz
Signal to Noise Ratio:95dB,A-weighted
RCAs:Input and Full Pass Through Audio Output
Turn On:DC Offset or 12V Remote
Recommended External Fuse:100A
Recommended Wiring Power Gauge:1/0 Gauge
Dimensions:12-3/8"Lengthx6-1/8"Widthx2"Height
High Level Input Sensitivity:2.5V-40V
Low Level Input Sensitivity:90mV-10V
Gain:(Knob Variable)
Low Pass Filter:40Hz-180Hz(Knob Variable)
Subsonic Filter:0Hz-50Hz(Knob Variable)
Frequency:30Hz-80Hz(Knob Variable)
Bass Boost:0dB-12dB@50Hz(Knob Variable)
Includes Remote Bass Control Knob with Power Indicator LED
Includes HA-EASY Speaker Wire to RCA Adapter
When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
