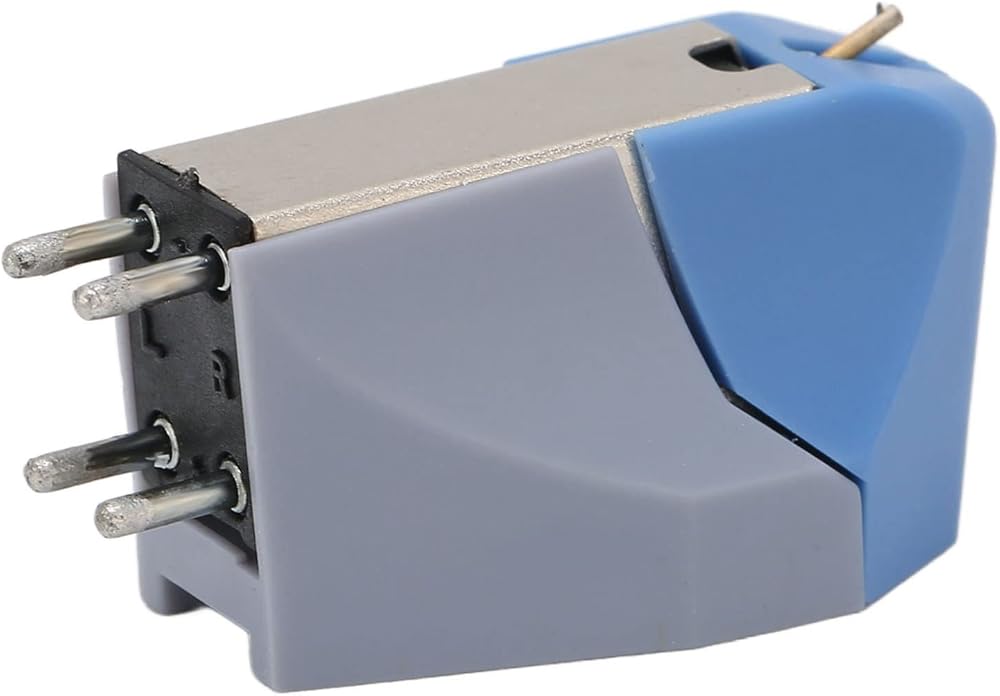

Magnetic Cartridge, Turntable Cartridge, Phonograph Cartridge with LP Needle for Record Player, High Precision Record Player Accessories, Stereo LP Record Player

KWD 8.500
– 1 +

Special Features

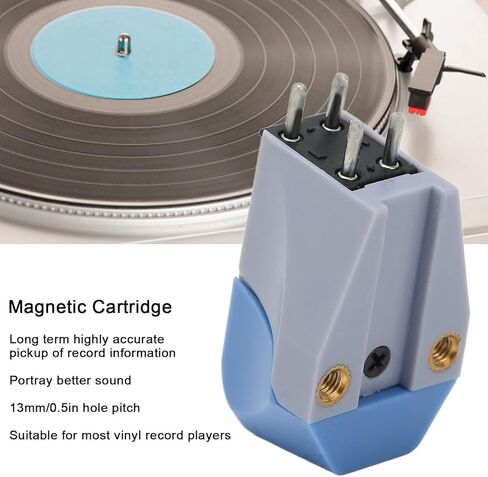

  • PROFESSIONAL: Standard MM moving magnet cartridge, with good and stable performance, providing excellent clarity and detail performance.
  • UPGRADE REPLACEMENT: Used to upgrade mid to high end record players, the cartridge adopts strict quality standards, high quality ABS shell, .
  • ACCURATE PICKUP: This cartridge adopts shape needles, which can pick up record information with high accuracy for a long time and portray better sound.

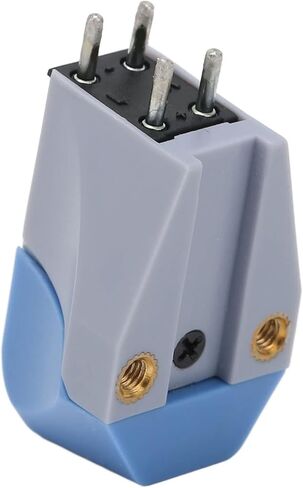

  • UNIVERSAL: 13mm/0.5in hole pitch, commonly used in the cartridge of most record players, remove the old cartridge and replace it with a new one.
  • ADJUSTABLE NEEDLE PRESSURE: The adjustable needle pressure range of the moving magnet cartridge is 1.9‑3.6g (recommended gauge pressure 3g).

Description

How to Use:
Remove the old cartridge and replace it with a new one.

Specification:
Item Type: Magnetic Cartridge
Material: ABS
Phono Type: MM Moving Magnet
Response Frequency: 10Hz～35kHz
Output Voltage: 3.5mV (1kHz, 33.3RPM.)
Channel Separation: >16dB (1kHz)
Output Balance: Needle Pressure: Approx. 1.9g-3.6g / 0.06oz-0.12oz (3g/0.1oz Recommended)
Q Value: 2.75
Coil DC : 250Ω
Recommended Load : 47kΩ
Load Capacitance: 200pF
Coil Inductance: 200mH (1kHz)
Static Obedience: 19 x 10-6cm/Dyne
Dynamic Compliance: 6 x 10-6cm/Dyne(100Hz)
Tip Shape: Combined Tapered Tip
Needle Bar: Aluminum Alloy Tube
Vertical Tracking Angle: 22°-24°

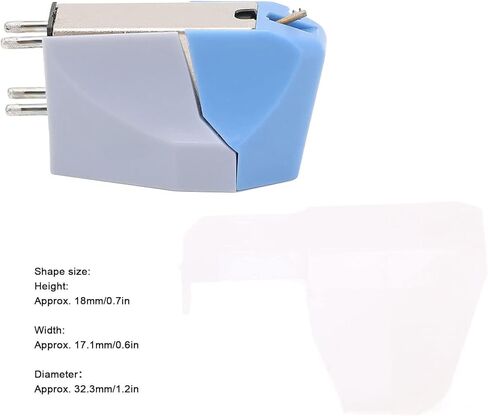

Shape Size: Height: Approx. 18mm/0.7in, Width: Approx. 17.1mm/0.6in, Diameter：Approx. 32.3mm/1.2in

Package List:

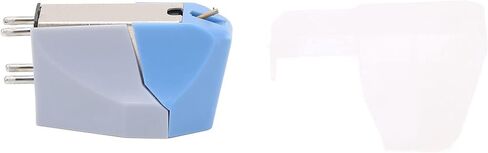

1 x Magnetic Cartridge1 x Cover

Note:
Manual measurement, please allow some errors.
