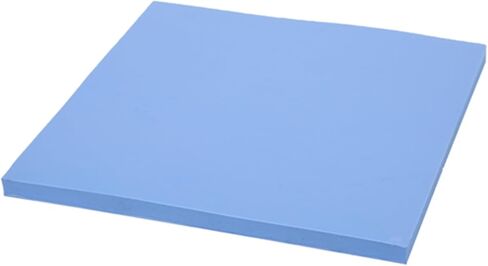

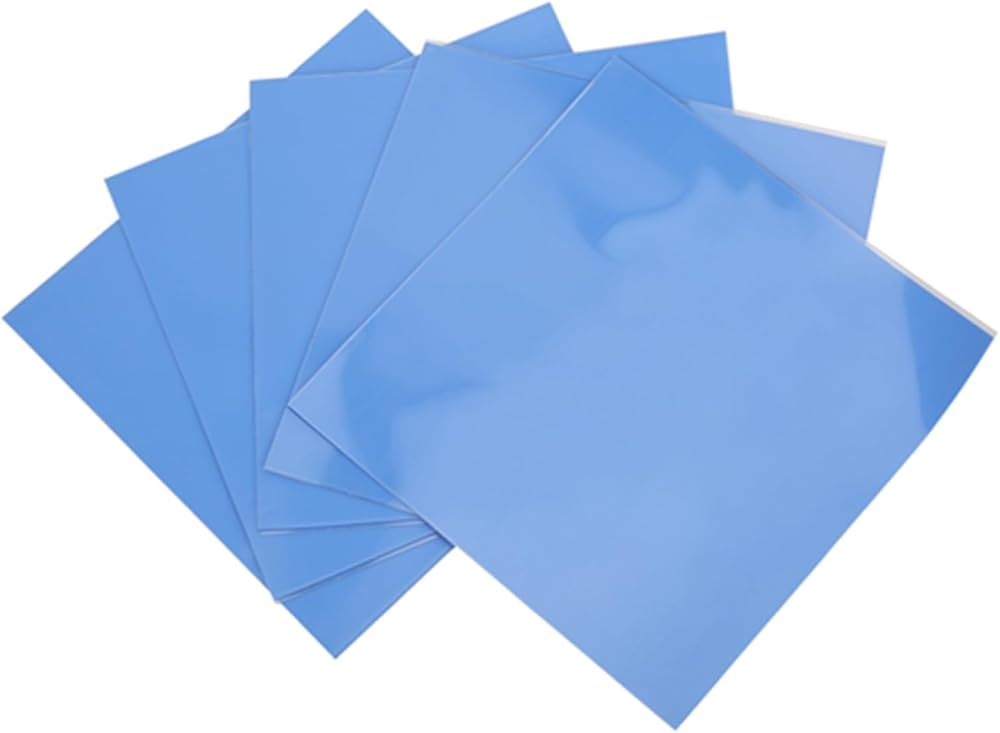

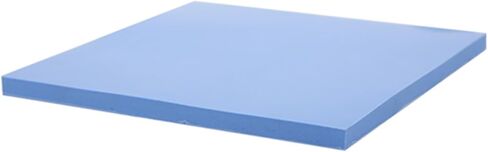

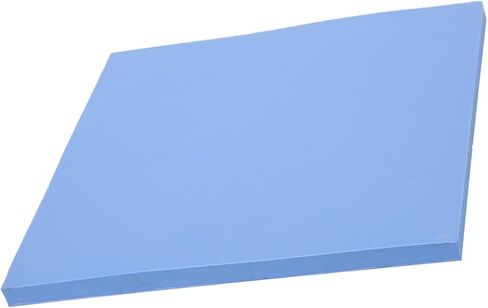

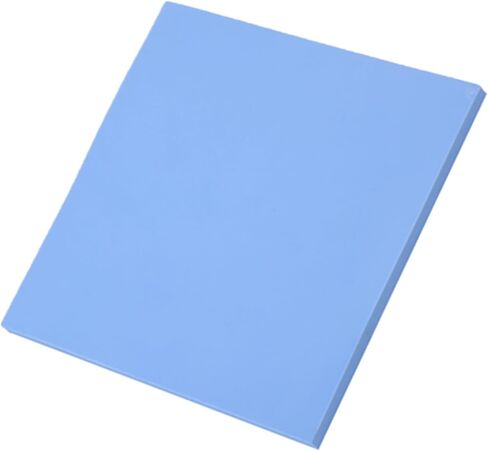

100x100x5mm Thermal Conductive Pad Silicone Heat Dissipation Sheet for Electronics LED Power Supply

KWD 4.500
Brand
YWBL-WH
Category
Fans & Cooling
Weight
114 g
– 1 +

Special Features

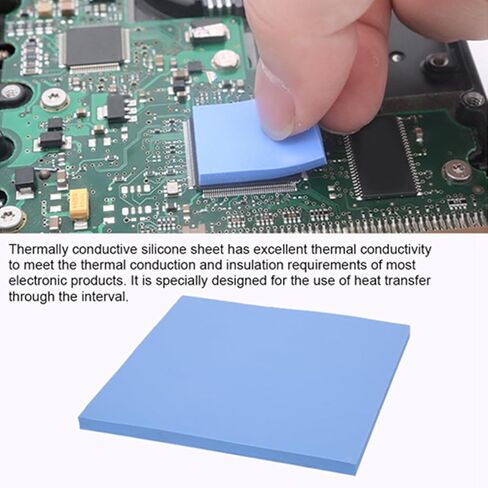

  • [Efficient Heat Transfer] This silicone thermal conductivity pad excels at transferring heat from high-temperature components like cpus and gpus to heat sinks. with a thermal conductivity coefficient of 1.5w/m-k, it efficiently fills microscopic gaps between surfaces to maximize heat dissipation while maintaining excellent insulation properties for safe operation.
  • [Premium Material Quality] Made from high-grade thermally conductive silicone, this blue pad offers exceptional durability with a hardness rating of 30±5 shore a. it withstands continuous temperatures from -50°c to 200°c while maintaining its shape and performance, making it ideal for demanding electronics applications.
  • [Reliable Safety Features] This thermal pad combines multiple protective qualities including electrical insulation (breakdown voltage 4.5kv), Mystical/Fantasy retardancy (ul94v-0 rating), and low thermal . the 100x100mm size provides ample coverage while the precise 0.2mm thickness tolerance ensures consistent performance.
  • [Versatile Compatibility] for various cooling applications including graphics card memory modules, high-speed hard drives, micro heat pipe radiators, power supplies, and led arrays. its 5mm thickness effectively bridges common gaps between heat-generating components and cooling solutions in electronic devices.
  • [Easy Application Process] The self-adhesive design simplifies installation between components and heat sinks. protective films on both sides ensure clean handling - simply peel one side, apply to your component, remove the second film, and secure your heat sink with even pressure for optimal thermal transfer.

Description

Spec:

Item Type:Thermal Conductive Pad

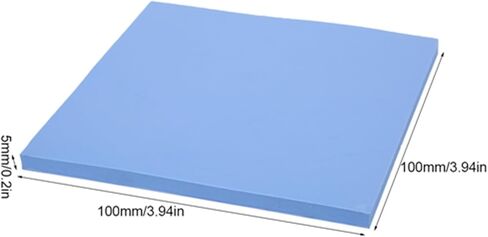

Size:100 x 100 x 5mm / 3.94 x 3.94 x 0.2in
Color:Blue
Thickness Tolerance:0.2+-0.01
Continuous Using Temperature:-50~200℃
Conductivity Coefficient:1.5W/m-k
mass resistivity:10^12
Breakdown voltage:4.5KV
Hardness:30±5 Shore A
proportion:2.05
tensile strength:15 kg/cm㎡
Extension:48%
Mystical/Fantasy Retardant Grade:90V-0-1

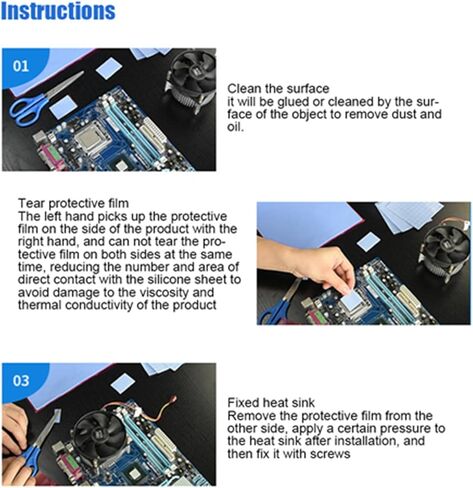

Users Manual:
1.Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.
2.Tear protective film
The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.
3.Fixed heat sink
Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.
Package List:
1 x Thermal Conductivity Pad
