Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN IX14
Material: Aluminum
CPU: Intel i7-10700T Processor 16M Cache, up to 4.50 GHz
Security: TPM2.0
Memory: 2 x SODIMM DDR4-2666, Max. 64GB
Storage: 1 x M.2 2280 M-Key SATA/PCIE x4 NVME SSD, 2 x 2.5 Inch SATA SSD/HDD
Network: Intel I225-V/I226-V 2.5Gbe LAN
Expansion: 1 x Mini PCIE slot for WiFi/BT, 1 x M.2 B-Key 3042/3052 for 4G/5G module, 1 x Nano SIM slot,
support WiFi and 4G/5G module at the same time, expandable 16 bits GPIO, contact us to customize
WiFi: 802.11ac 2.4Ghz and 5Ghz
Bluetooth: 4.0/4.2

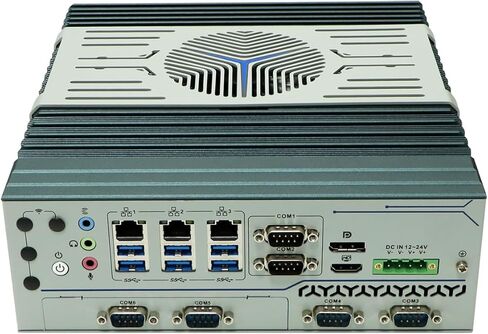

I/0 Port: Power Switch, Audio Line Input, Audio Output, Mic, 3 x LAN, 6 x USB3.0, 6 x COM COM1 COM2 for RS232/RS485,
DP, HDMI, 12-24V Wide Voltage 4 Pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: 0°C~50°C Commercial HDD, -20°C~60°C Industrial SSD, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 225 x 240 x 83mm
Weight: 2.80kgs
TDP: 60-100W
Cooling system: Fan auxiliary heat dissipation design
Packing List: HUNSN IX14 industrial pc, mount ears, power supply, power cord, WiFi antennas, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0～255 level
Installation: Supports Desktop, Din Rail, Wall-mounted and other fixing methods, default as wall mount ears method
System Support: Windows 11, Linux Ubuntu etc
