Power Adapters

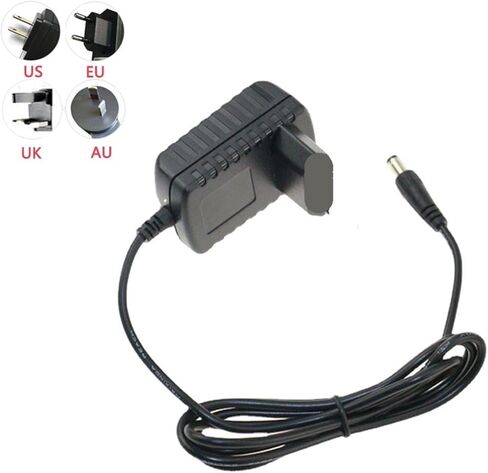

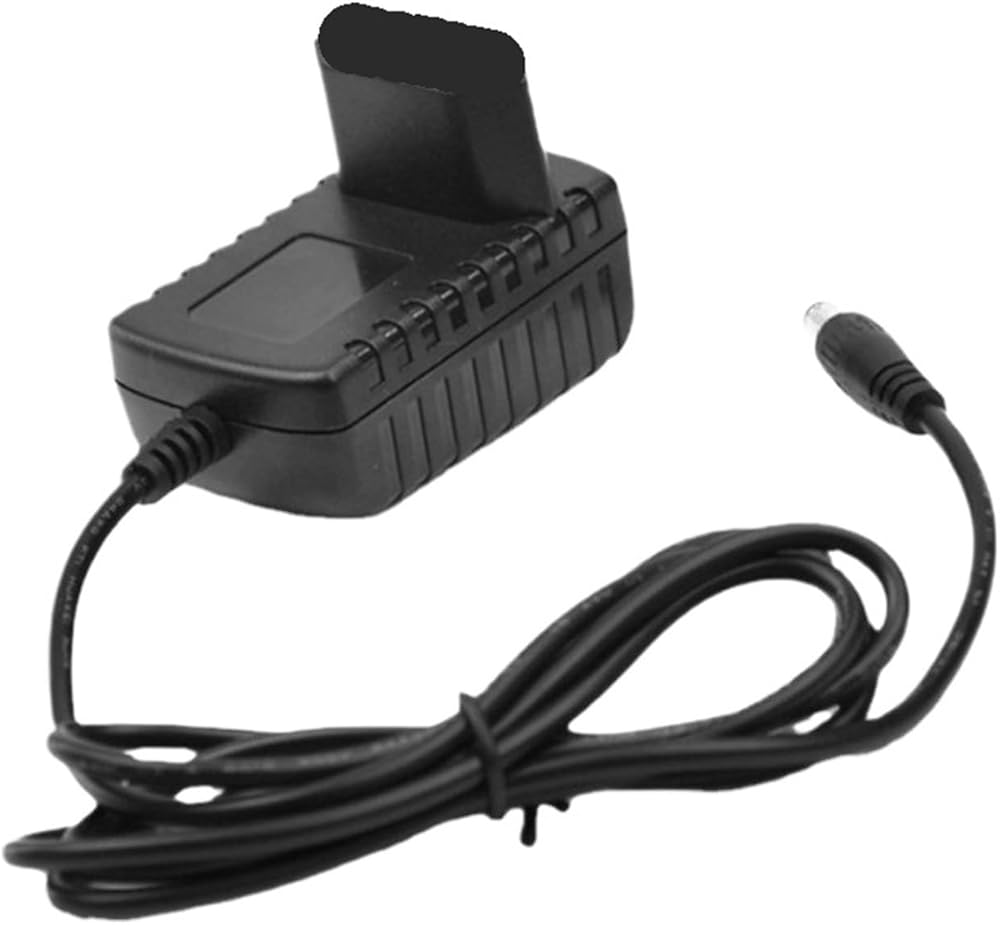

24V 0.5A Adapter Switching Power Supply
1. Rated input: 100-240VAC 50/60Hz
Input regulated voltage: 90-264VAC 47/63Hz
2. Rated output: 24V
3. Rated current: 0.5A
4. Rated power: 12W
5. Work efficiency: >92%
7. Short circuit protection: interval disconnection, fast recovery
8. Working temperature range: 20-45℃. Humidity: 30%-85%.
9. Transportation and storage environment: temperature: 0-75, humidity: 0%-95%.
10. Withstand voltage test: Input to output: 3KV AC Input to ground: 3KV AC
11. Insulation resistance: 100 ohms
12. Cooling method: natural cooling
13. Dimensions: 62*39*32mm

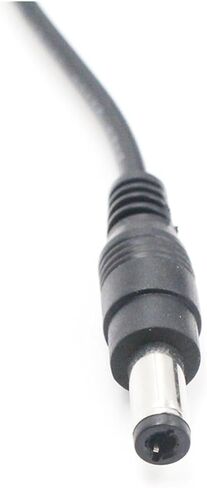

14. Connector: 5.5*2.1MM
15.DC line: 1.2M

Output interface: 5.5mm*2.1mm
