EU Plug Multicolor

KWD 60
Brand
Irfora
Weight
0.7 kg
ColorMulticolor
SizeEU Plug
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Scientific & Reasonable Layout】: Simple, fun and versatile QRP SSB HF transceiver with embedded DSP and SDR functions. EER Class-E driven SSB transmit-se. Adopting KDS high-precise TCXO, the frequency accuracy and stability surpass similar products. Compact size with rich interfaces and scientific printed circuit board layout with high-frequency circuit design principles to ensure superior performance.
  • 【Multi-band Support & High Audio Performance】: Full mode HF short transceiver, covering eight bands of 80m/60m/40m/30m/20m/17m/15m/10m with high transmitting efficiency. Built-in speakers with significantly improved sound quality and increased s provide a more pleasing audio experience.
  • 【Comprehensive Functions & Software Flexibility】: Supports a variety of communication modes, including SSB, CW, AM, and Frequency Modulation, as well as DSP filtering and functions, such as AGC, NR, ATT, TX, and VOX, to provide a professional communication experience. Open-source firmware based on IDE allows users to customize functions and promote community development through sharing and contribution.
  • 【Combined Digital & Analogue Technology】: It combines an all-digital SSB emitter with a software-based SDR receiver se for precise frequency control and signal processing. Provides independently switchable analogue attenuators to improve reception performance in different scenarios. Supports the Computers Aided Tranmission protocol, enhancing interoperability with other devices.
  • 【User Friendly Design】: The headphone jack, microphone jack, and power button are moved to the front panel, making it more intuitive and convenient to connect headphones and operate power. The button layout has been adjusted to the underside of the LCD screen to provide a more spacious toucharea, improving the comfort and touching experience of the buttons.

Description

Specifications:

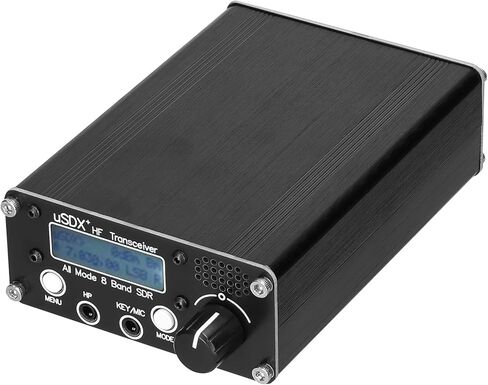

Name: SDR Transceiver
Material: metal
Battery: 1 * biult-in 4000mAh battery (included)
Radio frequency output: 10W maximum at 13.8V exit direct current in
Frequency s: 3.5-30MHz
Antenna/connector: 50ohms/SO-239
Full mode support: usb, lsb, cw, am, frequency modulation
Bands: 80m/60m/40m/30m/20m/17m/15m/10m
Emission efficiency: 80m/60m/40m/30m/20m efficiency is higher than 80%, 17m efficiency is higher than 70%, 15m/10m efficiency is higher than 60%

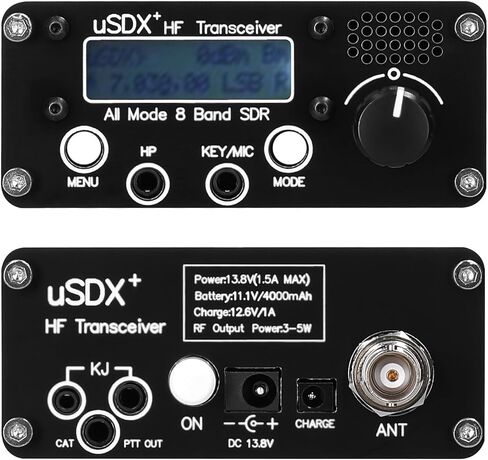

Rich interfaces: Computers Aided Tranmission, PTT OUT, MIC, microphone, BNC antenna interface
Premium parts: 100 V C0G/NP0 acitors, magnetic latching relays, Operational Amplifier chip, built-in speaker with cavity
All-Mode support: USB, LSB, CW, AM, Frequency ModulationDSP filters: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
DSP features: Automatic Gain Control (AGC), Noise-reduction (NR), Voice-triggered Xmit (VOX), RX Attenuators (ATT), TX noise gate, TX drive control, s control, dBm/S-meter
SSB opposite side-band/cxr suppression transmit: better than -45dBc, IMD3 (two-tone) -33dBc; Receive: better than -50dBc
Noise floor MDS: -135 dBm at 28MHz (in 200Hz BW)
Front-end selectivity: steep -45dB/decade roll-off +/-2kHz from tuned-frequency
Blocking dynamic s: 20kHz offset 123dB, 2kHz offset 78dB
CW decoder, Straight/Iambic-A/B keyer
Item size: 155 * 90 * 40mm / 6.10 * 3.54 * 1.57in
Item weight: 425g / 0.94lb
Package size: 170 * 128 * 80mm / 6.69 * 5.04 * 3.15in
Package weight: 510g / 1.12lb

Packing List:

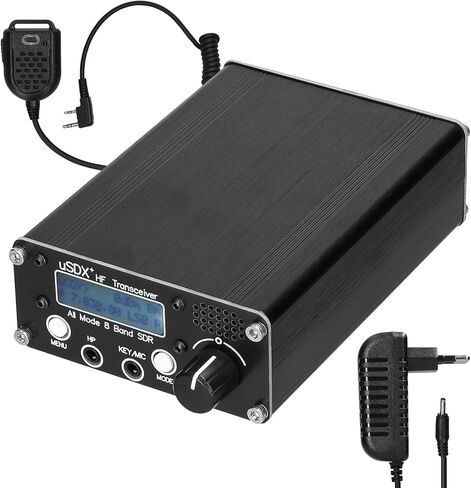

1 * SDR Transceiver
1 * Microphone
1 * Adapter
